AP Management
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 580
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Initiating Manual Channel Plan Assignments
If you specify Manual as the Channel Plan Mode on the Configuration tab, the Manual Channel Plan page
allows you to initiate the channel plan algorithm.
To manually run the channel plan adjustment feature, select the radio to update the channels on (5 GHz or 2.4
GHz) and click Start.

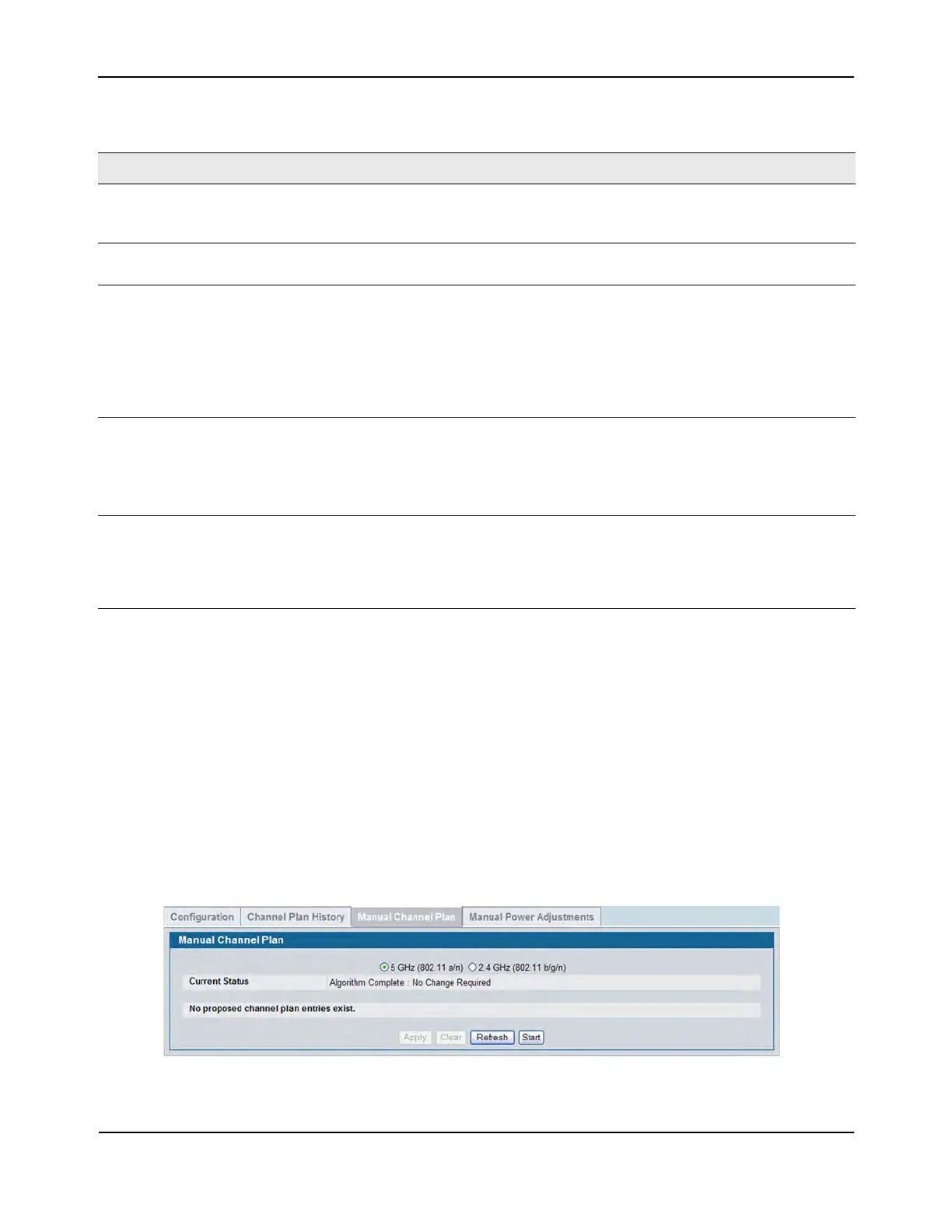

Figure 371: Manual Channel Plan
Table 339: Channel Plan History
Field Description
5 GHz (802.11a/n)
2.4 GHz (802.11b/g/n)
The 5 GHz and 2.4 GHz radios use different channel plans, so the switch tracks the
channel history separately for each radio. The channel information that displays on
the page is only for the radio you select.
Operational Status This field shows whether the switch is using the automatic channel adjustment
algorithm on the AP radios.
Last Iteration The number in this field indicates the most recent iteration of channel plan
adjustments. The APs that received a channel adjustment in previous iterations
cannot be assigned new channels in the next iteration to prevent the same APs from
being changed time after time.
On the AP Management > RF Management > Configuration tab, you can set the
history depth to control the maximum number of iterations stored and displayed in
the channel plan history.
Last Algorithm Time Shows the date and time when the channel plan algorithm last ran.
Note: To set the system time on the switch, you must use SNTP, which is disabled by
default. From the Web interface, you configure the SNTP client and server
information from the pages in the LAN > Administration > System > SNTP folder.
From the CLI, use the
sntp commands in Global Config mode.
AP MAC Address
Location
Radio
Iteration
Channel
This table displays the channel assigned to an AP in an iteration of the channel plan.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
