Understanding the User Interfaces
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 57
D-Link UWS User Manual
3. After the system authenticates you, the System Description page displays.

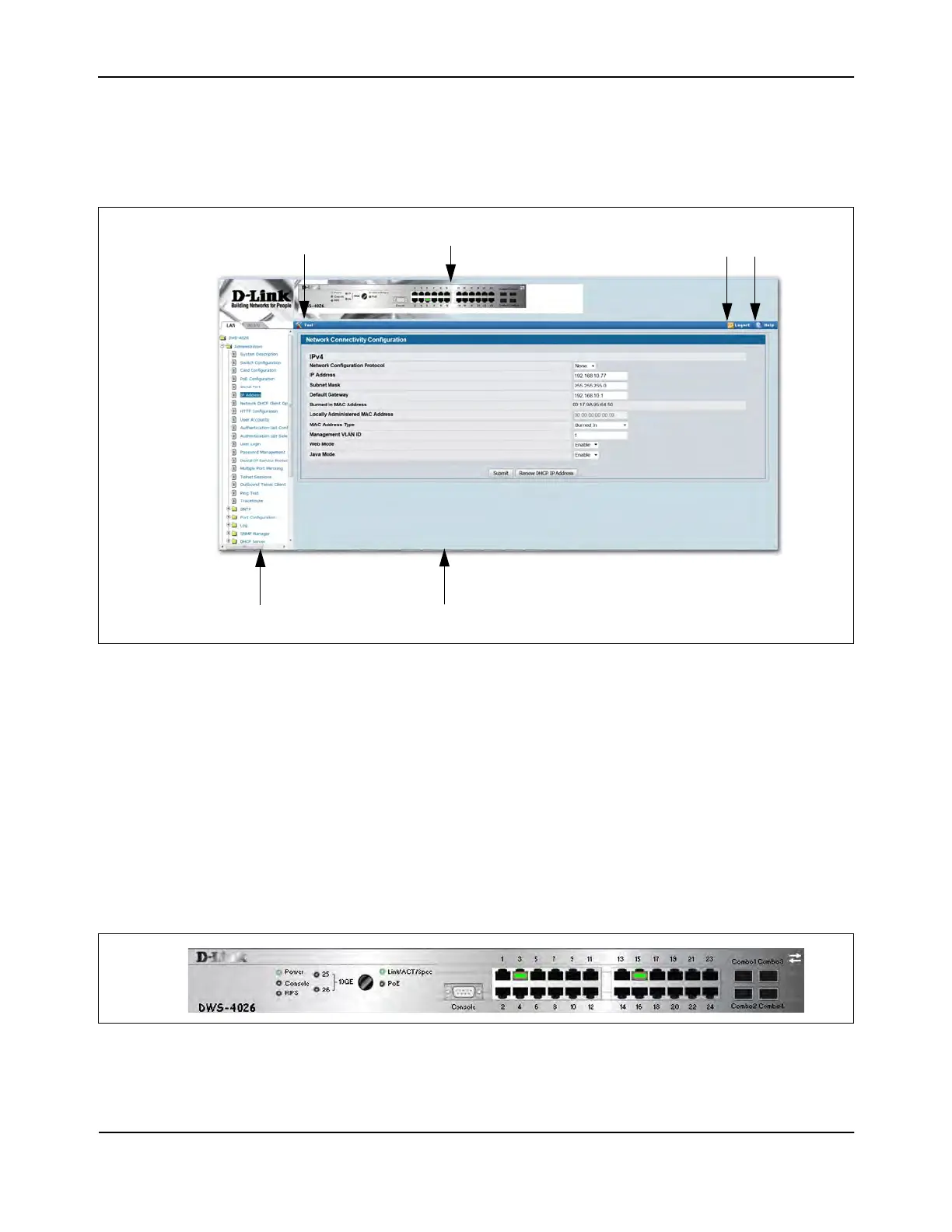

Figure 1 shows the layout of the switch Web interface. Each Web page contains three main areas: device view,
the navigation tree, and the configuration status and options.
Figure 1: Web Interface Layout
Device View
The Device View is a Java® applet that displays the ports on the switch. This graphic appears at the top of each
page to provide an alternate way to navigate to configuration and monitoring options. The graphic also
provides information about device ports, current configuration and status, table information, and feature
components.
The port coloring indicates if a port is currently active. Green indicates that the port is enabled, red indicates
that an error has occurred on the port, and blue indicates that the link is disabled.
Figure 2 shows the Device View for the back of the system.
Figure 2: Device View—Back
Help Page
Access
Navigation Tree
Configuration Status and Options
Device View
Logout
Button
Administration
Tools

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
