Configuring Multiple Spanning Tree Protocol
D-Link Unified Wired and Wireless Access System
July 2012 Page 683
D-Link UWS User Manual

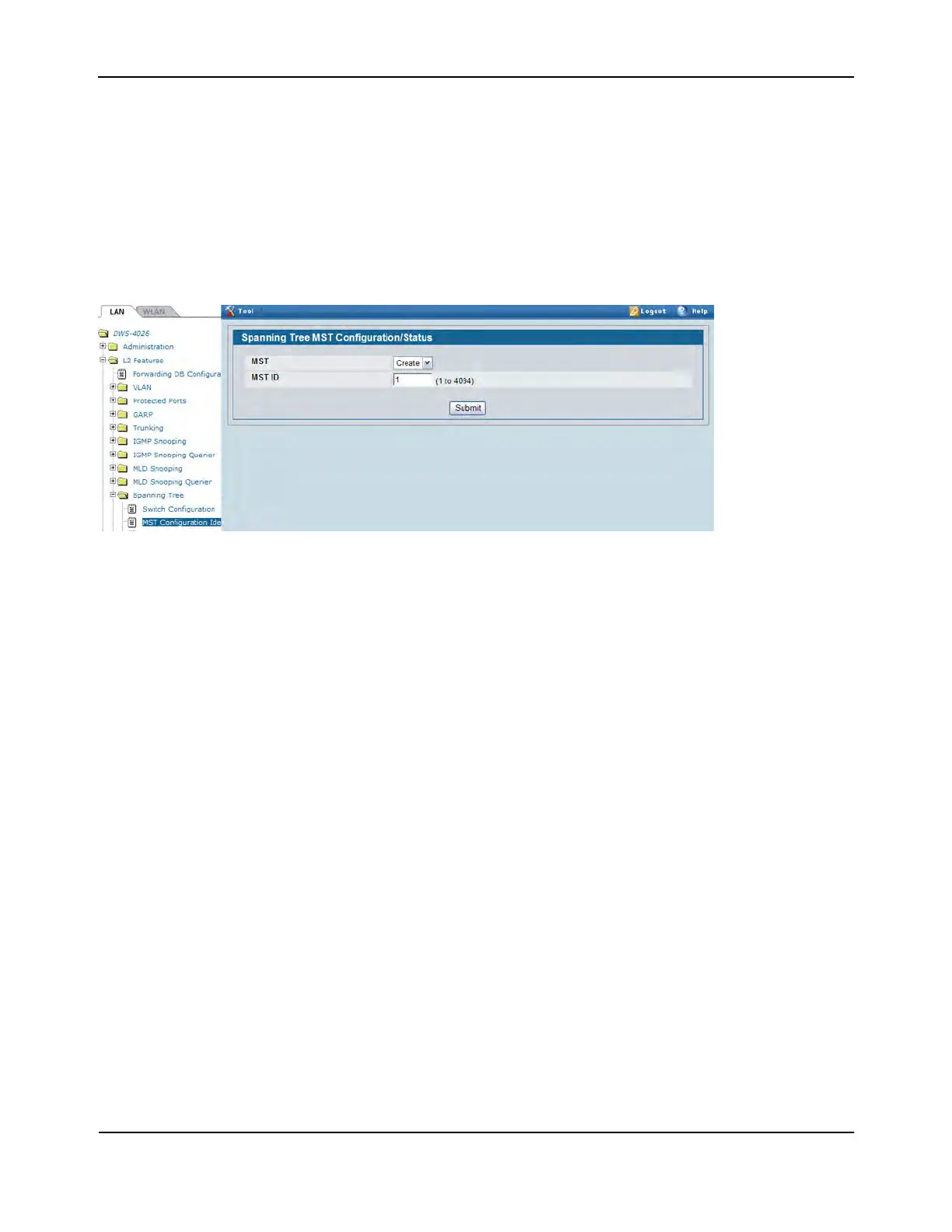

d. Click Submit.
e. Repeat the steps to create an MST instance with an ID of 20.
5. Associate MST ID 10 with VLAN 10 and assign a bridge priority of 16384
a. Select MST 10 from the MST menu.
b. Enter 16384 in the Bridge Priority field.
c. Click VLAN 10 to select it from the VLAN ID field.
d. Click Submit.
6. Use similar procedures to associate MST instance 20 to VLAN 20 and assign it a bridge priority value of
61440.
By using a lower priority for MST 20, MST 10 becomes the root bridge.
7. Enable on port 0/1.
a. Go to the LAN > Administration > Port Configuration > Port Configuration page.
b. From the Slot/Portt mode, select port 0/1.
c. From the Mode menu, select Enable.
d. Click Submit.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
