D-Link DWL-2600AP User Manual

Configuring VLAN Routing
D-Link Unified Wired and Wireless Access System
July 2012 Page 687
D-Link UWS User Manual

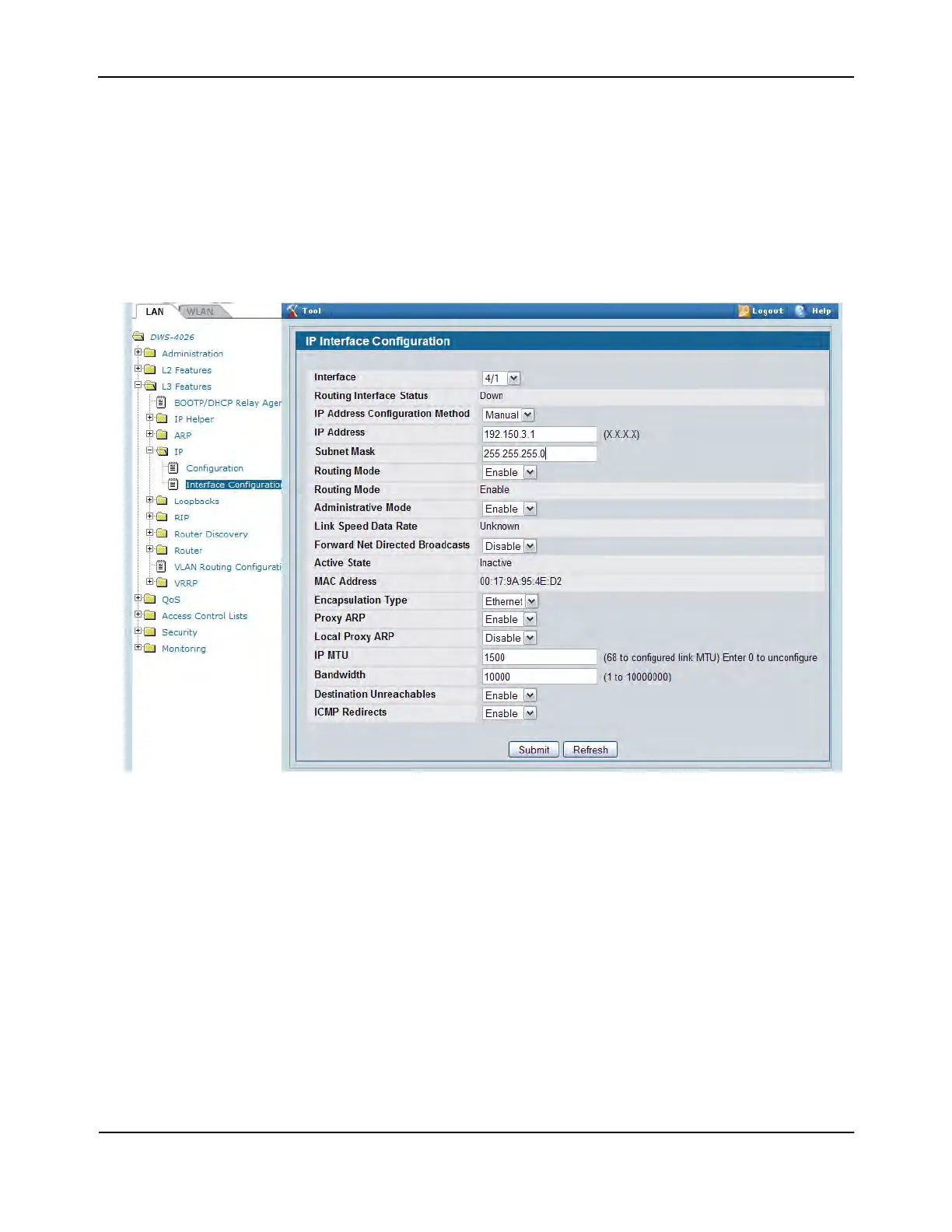

8. Go to the LAN > L3 Features > IP > Interface Configuration page to configure the IP addresses and subnet
masks for the virtual router ports.
a. From the Interface menu, select 4/1.
b. From the IP Address Configuration Method menu, select Manual.
c. Enter 192.150.3.1 in the IP Address field.
d. Enter 255.255.255.0 in the Subnet Mask field.
e. Click Submit.
9. Select interface 4/2 from the Interface menu and configure it with an IP address of 192.150.4.1 and subnet
mask of 255.255.255.0.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
