Configuring Differentiated Services for VoIP
D-Link Unified Wired and Wireless Access System
July 2012 Page 695
D-Link UWS User Manual
3. Go to the LAN > QoS > Differentiated Services > DiffServ Configuration page and enable DiffServ for the
switch.

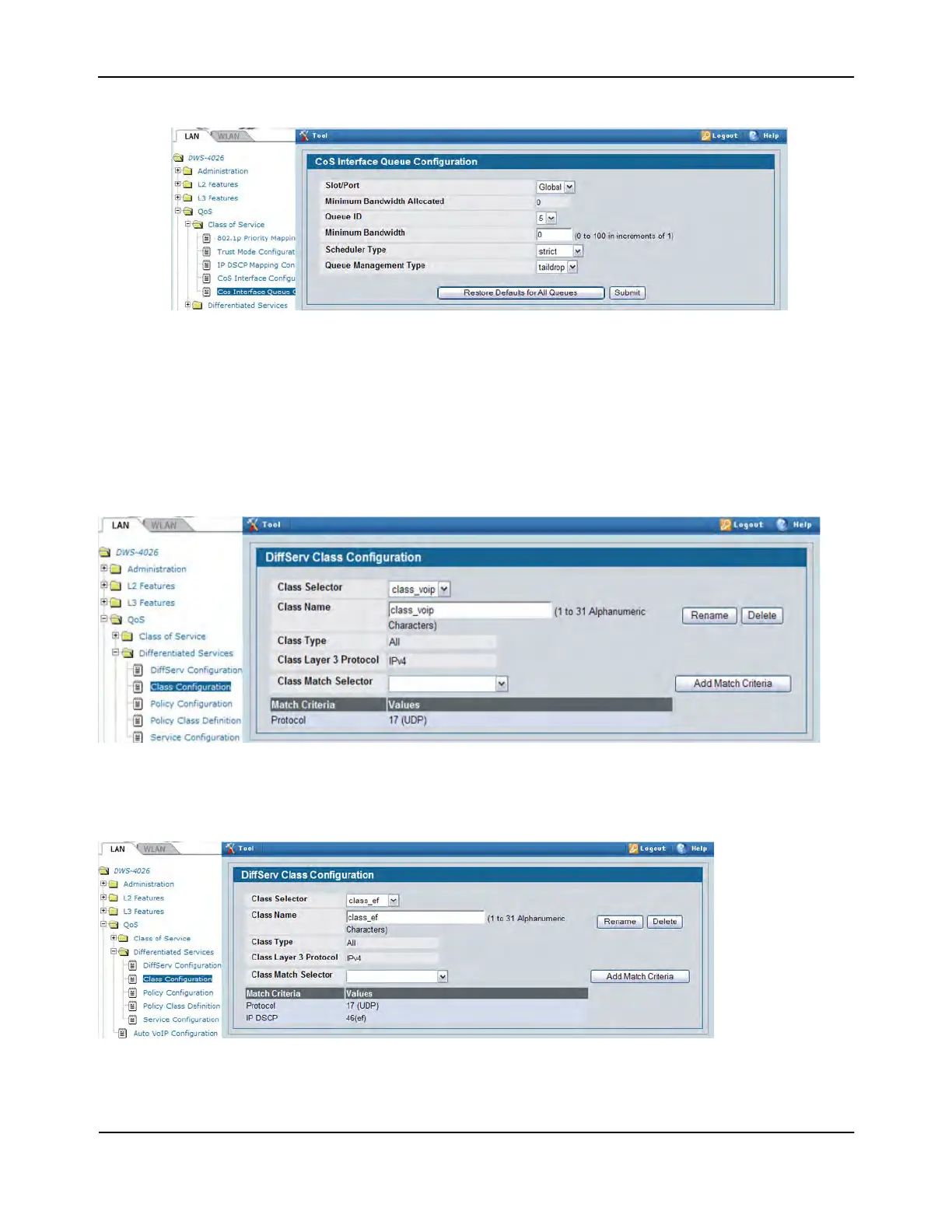

4. Go to the LAN > QoS > Differentiated Services > Class Configuration page, select Create from the Class
Selector field, enter class_voip in the Class Name field, select All as the Class Type, and then click Submit.
5. Select IPv4 as the Class Layer 3 Protocol, and then click Submit.
6. Select Protocol from the Class Match Selector menu, and then click Add Match Criteria.
7. Select UDP from the Protocol Keyword menu, and then click Submit.
8. Create a second DiffServ classifier named class_ef and define a single match criterion to detect a DiffServ
code point (DSCP) of ef (expedited forwarding).
This handles incoming traffic that was previously marked as expedited elsewhere in the network.
9. Go to the Policy Configuration page, select Create from the Policy Selector menu, enter pol_voip in the
Policy Name field, and then click Submit.
