GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 3 - Setup Instructions 3-55

3-8-4 Removal procedure

3-8-4-1 Removal procedure for Cellular Modem installation

1.) Remove the power cord and REAR CABINET BEXEL ASSY BT16.

2.) Unscrew 7 screws and disassemble REAR EMI COVER.

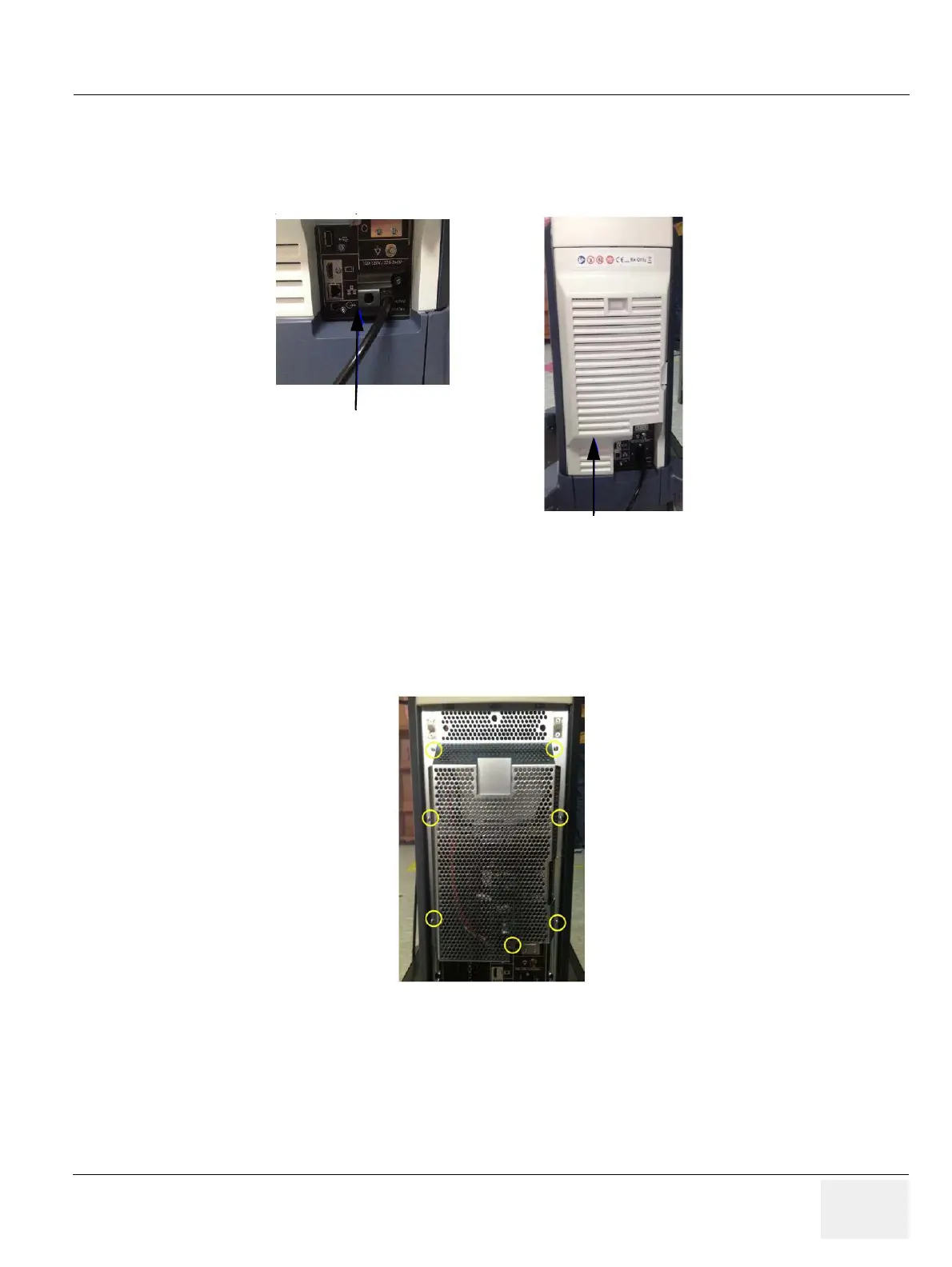

Figure 3-57 Removing the POWER CORD and REAR CABINET BEZEL ASSY BT16

Figure 3-58 Unscrewing 7 screws

POWER CORD FIX Bracket

REAR CABINET BEZEL ASSY BT16

Important Precautions3
