GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-153

Section 8-50

Replacement of the OPIO USB Sub PWA

8-50-1 Manpower

One person, 30 minutes

8-50-2 Tools

Philips screwdriver

8-50-3 Preparations

1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

2.) Remove the OPIO, covers and cables as described in 8-25-4 "Removal Procedure" on page 8-87.

8-50-4 Removal Procedure

1.) Pull 2 cables from Main Keyboard ASSY, and prepare the Sub Keyboard ASSY.

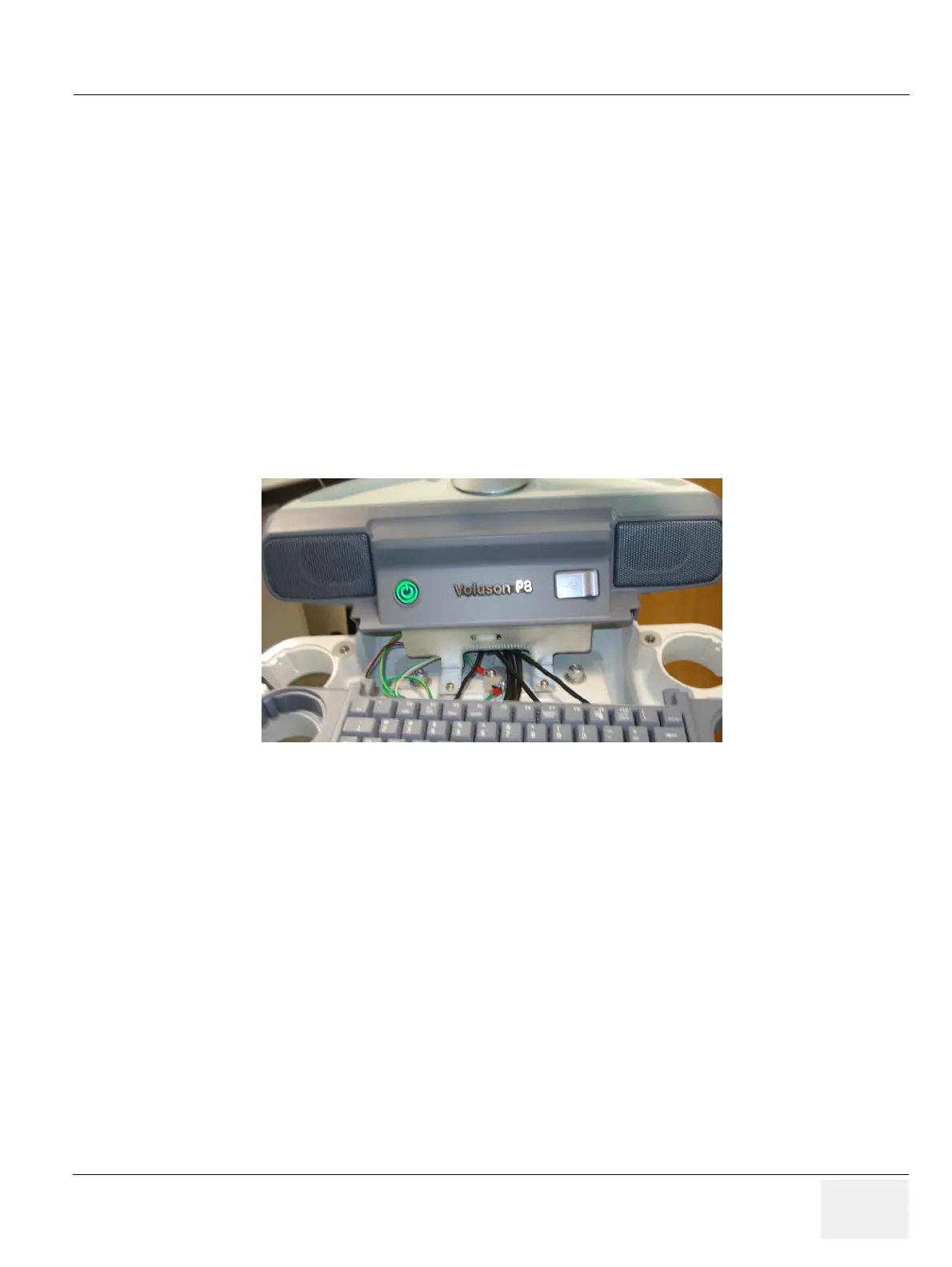

Figure 8-217 Pulling 2 cables
