GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-35

Section 8-15

Replacement of ENCODER set

8-15-1 Manpower

One person, 40 minutes

8-15-2 Tools

Philips screw driver, spanner

8-15-3 Removal procedure

1.) Unscrew 9 screws at the bottom of the keyboard body. Refer to the figures below.

2.) Remove 5 probe holders. Refer to the figure below.

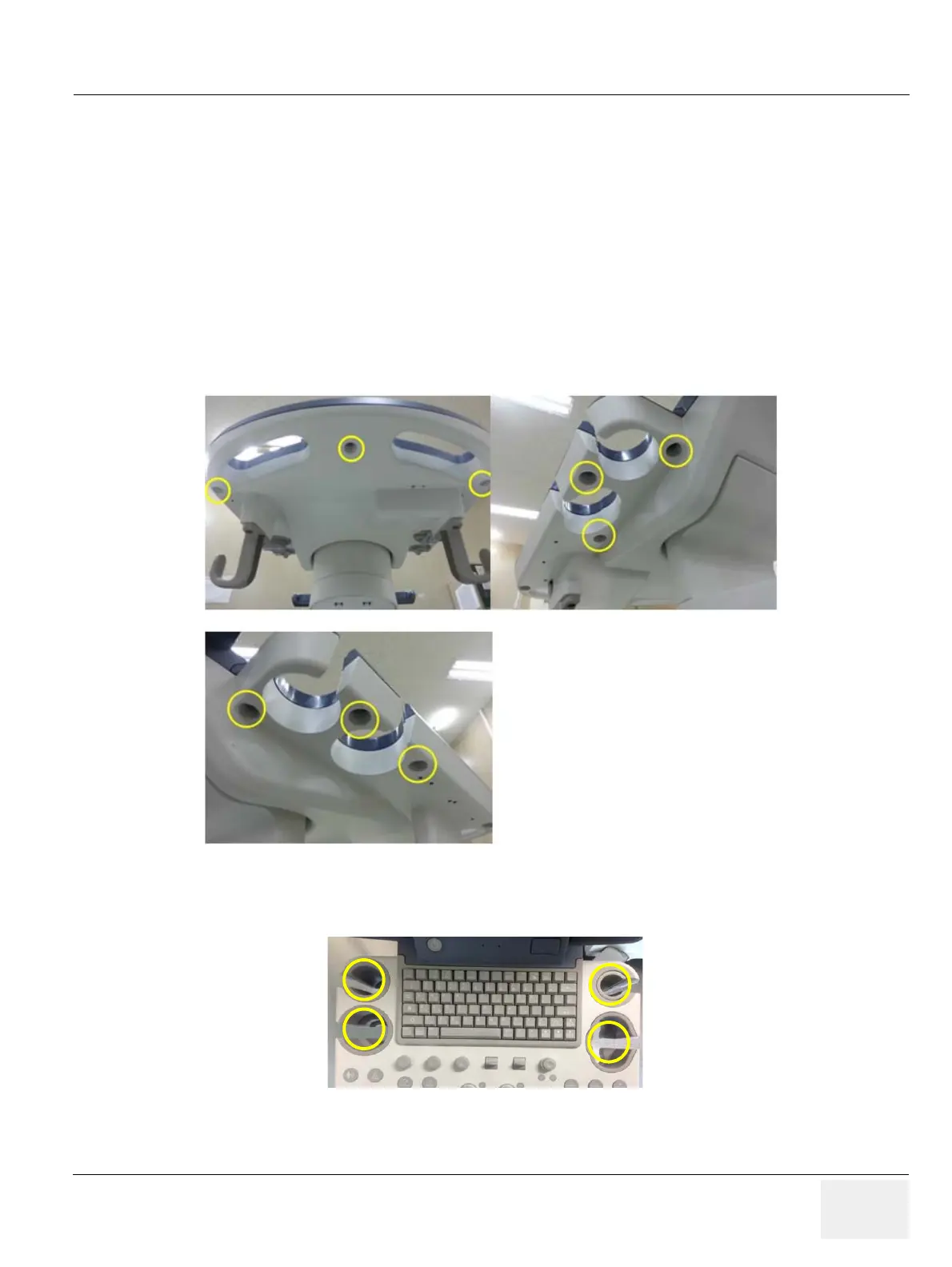

Figure 8-37 Unscrewing 9 screws

Figure 8-38 Removing 5 probe holders
