GE RAFT VOLUSON™ P8 / VOLUSON™ P6
DIRECTION 5723243, R
EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL
5-38 Section 5-9 - External I/O
Section 5-9
External I/O
NOTE: For further description of I/O connectors refer to Section 3-9-3 "External I/O Connectors" on page 3-69.

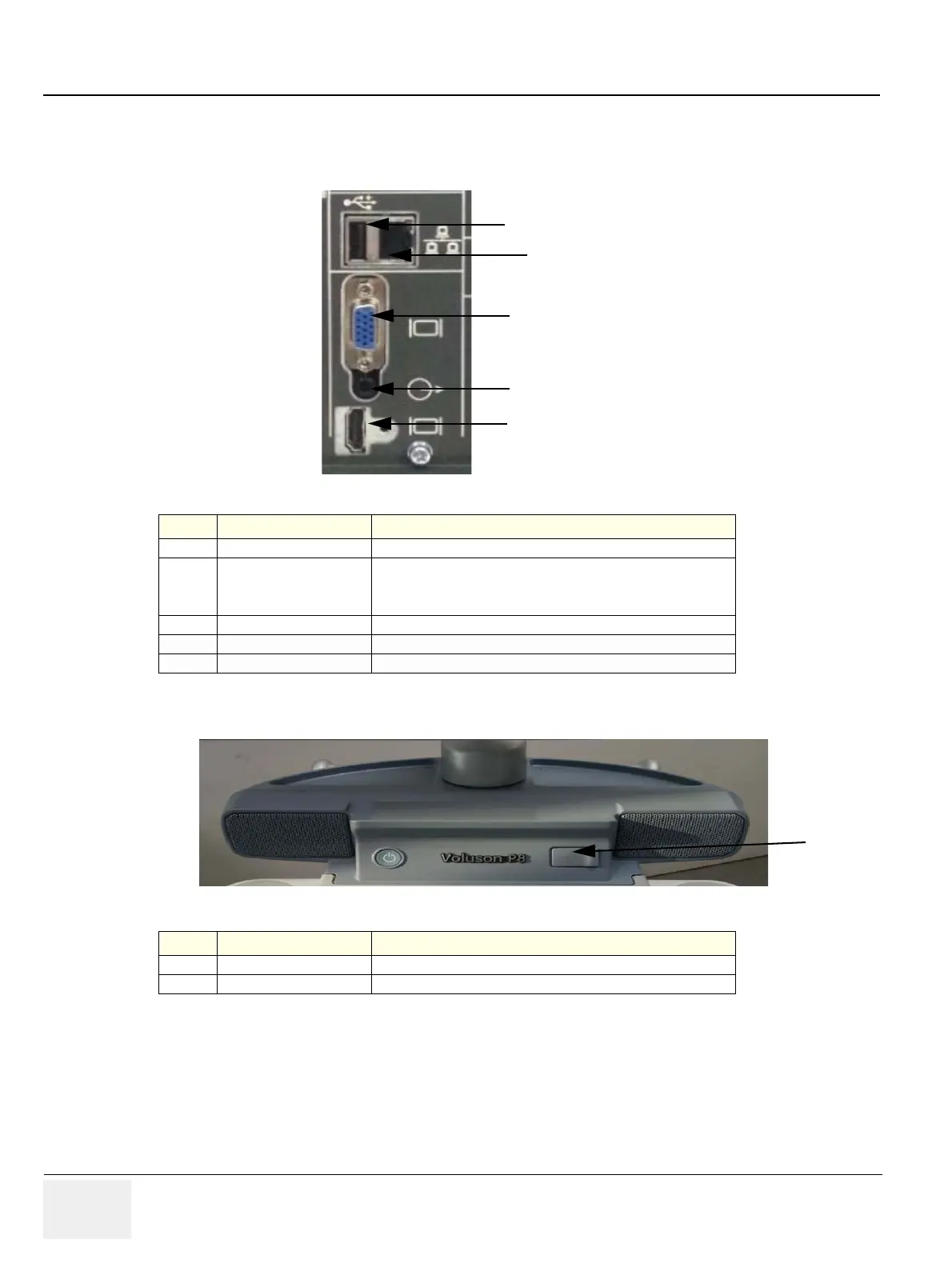

Figure 5-16 External I/O Connectors - on Rear of System (GES)
Item Connector Name Description
1 USB USB-2.0 port
2HDMI OUT
Connector for external Monitor
TMDS signal with DDC_Control (HDMI or DVI)
Resolution: SXGA(1280 X 1024)
3 NETWORK DICOM input/output, twisted pair RJ-45 10/100 megabit/s
4 RGB RBG Analog Output
5 Audio out Audio out for external speaker
Figure 5-17 External I/O Connectors - on the TOP OPIO
Item Connector Name Description
1 USB USB-2.0 port
2 USB USB-2.0 port
4
2
5
1
3
1
