GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-62 Section 8-20 - Replacement of OPIO Plastic upper cover assy

Section 8-20

Replacement of OPIO Plastic upper cover assy

8-20-1 Manpower

One person, 30 minutes

8-20-2 Tools

Philips screwdriver

8-20-3 Disassembly procedure

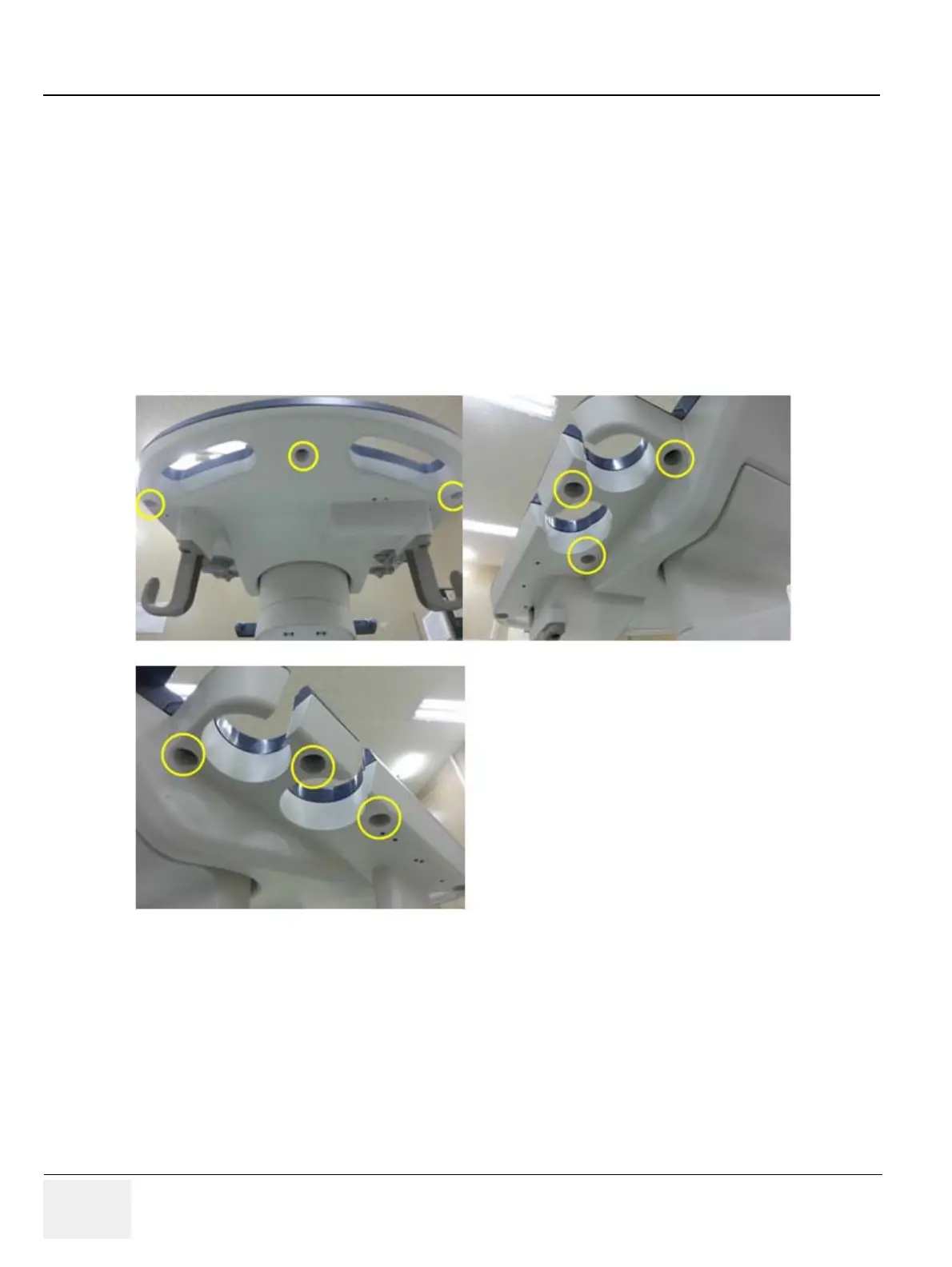

1.) Unscrew 9 screws at the bottom of the keyboard body. Refer to the figures below.

Figure 8-82 Unscrewing 9 screws
