GE DRAFT VOLUSON™ P8 / VOLUSON™ P6
DIRECTION 5723243, R
EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-139
Section 8-43
Replacement of the SOM in DRFM
8-43-1 Manpower
One person, 30 minutes
8-43-2 Tools
Philips screwdriver
8-43-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the REAR CABINET BEZEL ASSY BT16 and disconnect cables as described in 8-28-4
"Removal Procedure" 2), 3), 4) and 7) on page 8-93.
3.) Remove the NEST EMI BRKT BT16 as described in 8-56-4 "Removal Procedure"
4.) Remove the DRFM as described in 8-42-3 on page 8-130.
8-43-4 Removal Procedure
1.) Unscrew 5 screws and pull the SOM board out of the DRFM.

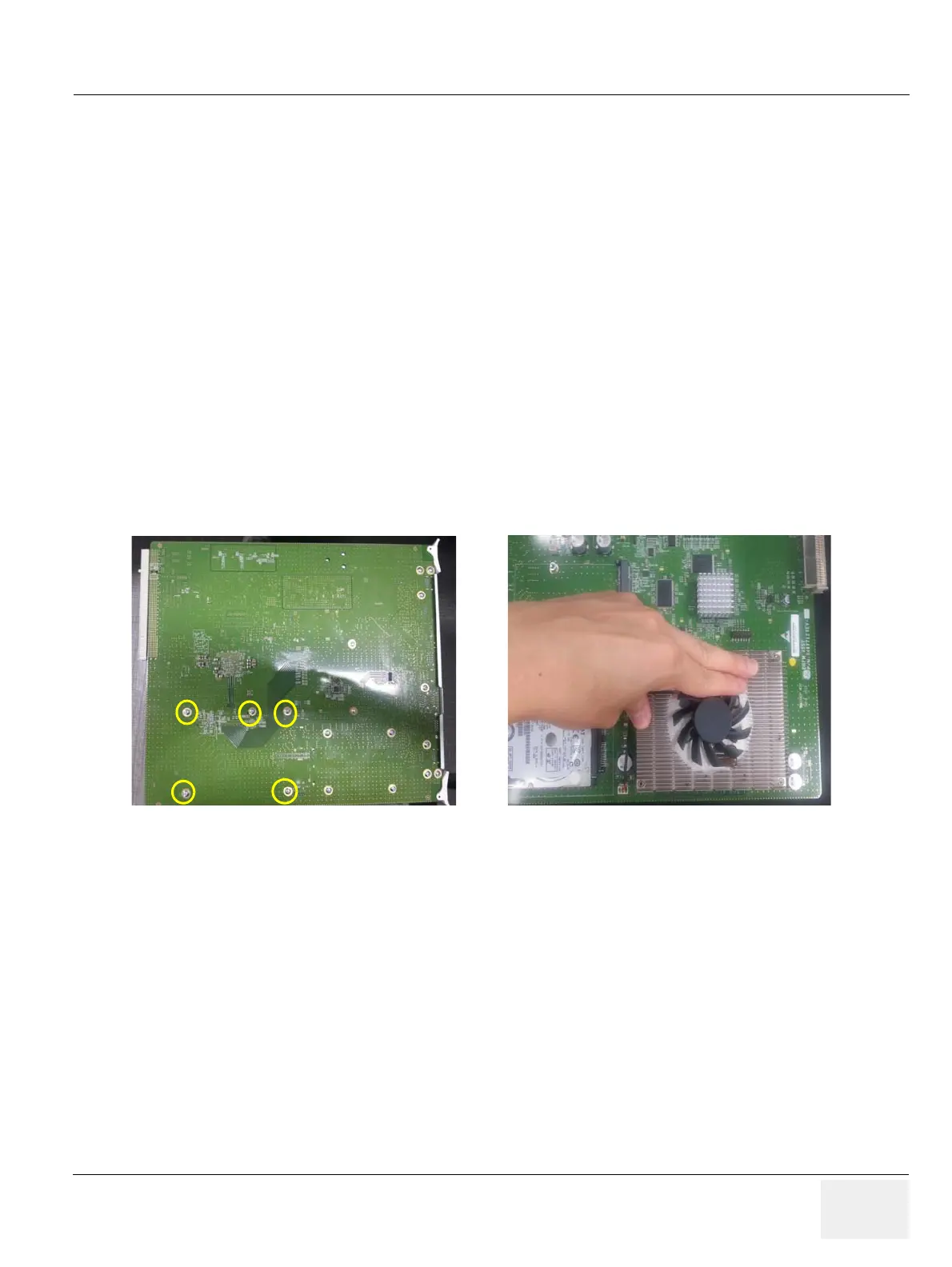

Figure 8-200 Unscrewing 5 screws and pulling the SOM board out of the DRFM
