7-44 Section 7-10 - Troubleshooting Trees, Instructions and Tech Tips

7-10-1 System does not boot up

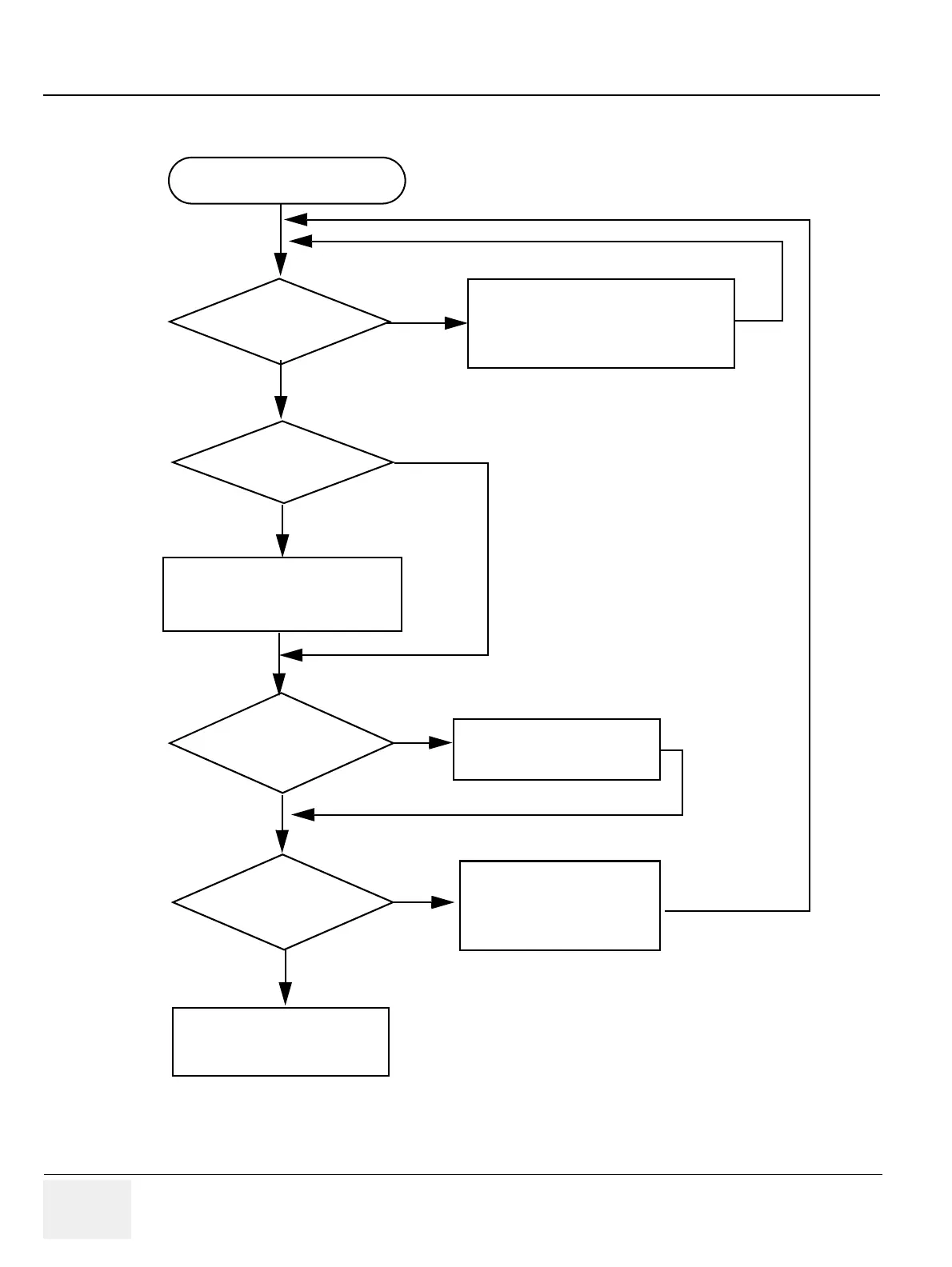

Figure 7-38 System does not Power On / Boot Up

System doesn’t boot

Is Standby Switch

illuminated?

Press Standby Switch till it

changes to green System

starts booting

Is Standby Switch

orange?

Is there any picture on

the monitor ?

Other error. Please contack

the service engineer

Is there any picture on

the monitor ?

- Power Cord is connected to Mains

- Power Switch is turned on

(on the backside of the system)

Verify that

Press Standby Switch for

approximately 5 sec.

untill system is down

Check cables between

Console and Monitor

Yes
