GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 9 - Renewal Parts 9-21

9-12-3 Real-Time 4D Volume Probes

* A green round label is attached on the RIC5-9A-RS (KTZ304128)

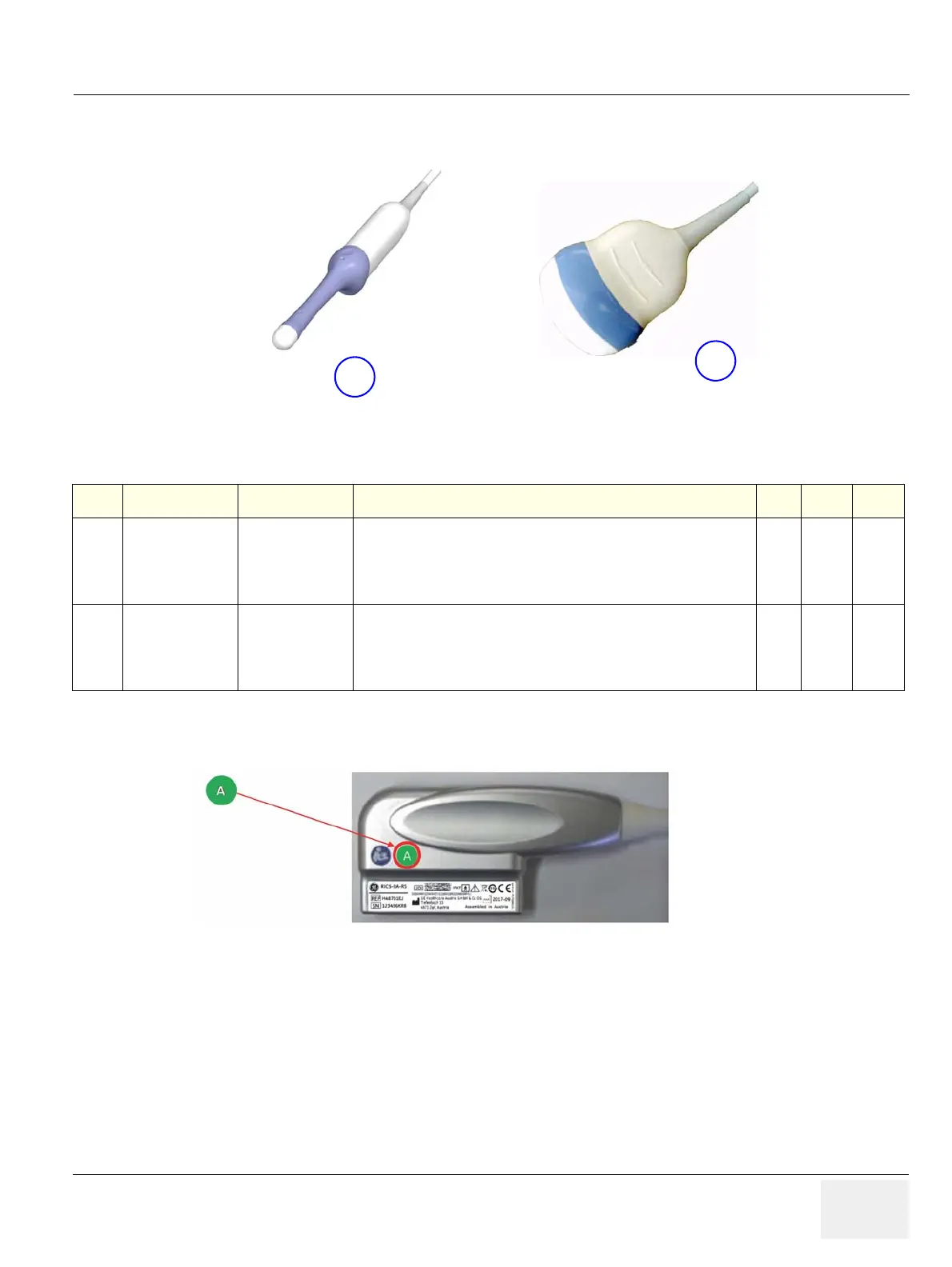

Figure 9-10 Real-Time 4D Volume Probes

Table 9-14 Real-Time 4D Volume Probes

Item Part Name Part Number Description Qty CRU FRU

804

RIC5-9A-RS KTZ304128

Real-time 4D endocavity broadband electronic curved

array transducer 3.8 - 9.3 MHz, 192 Elements, field of

view: max. 180° Applications: Gynecology,

Obstetrics, Transrectal

-1 1

805

RAB2-6-RS KTZ303982

Real-time 4D broadband electronic curved-array

transducer

2.0 - 5.0 MHz, 128 Elements Applications:

Abdominal, OB, Gyn

-1 1

805

804
