GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

5-2 Section 5-2 - General Information

Section 5-2

General Information

Voluson™ P8 / Voluson™ P6 is a digital beamforming curved-, linear- and phased array ultrasound

imaging system.

The system can be used for:

• 2D Mode Imaging and additional Operating Modes (XTD-View)

• Color Doppler Imaging (CFM, PD and HD-Flow)

• M Mode + MCF Imaging

• Doppler (PW, CW)

• 3D Mode and Real Time 4D Imaging

• Different combinations of the above modes

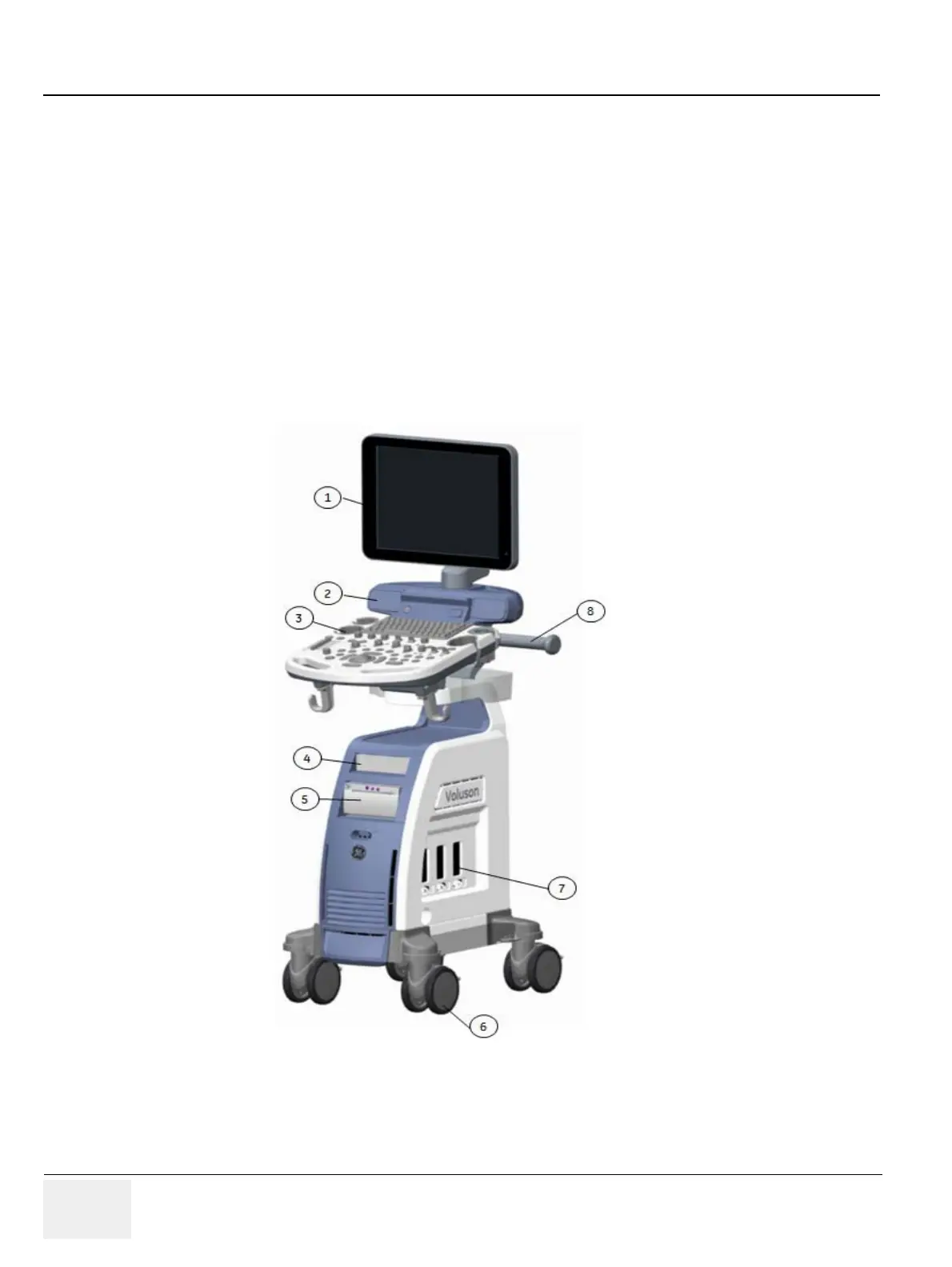

Figure 5-1 Voluson™ P8 / Voluson™ P6 Major Components

1. Monitor

2. Loudspeaker

3. Probe Holder

4. DVD Drive

5. Place for B/W and/or

Color printer

6. Lockable wheels

7. Probe Connector

8. Transport Handle
