8-142 Section 8-45 - Replacement of the DBM64
Section 8-45
Replacement of the DBM64
8-45-1 Manpower
One person, 30 minutes
8-45-2 Tools
Philips screwdriver
8-45-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the REAR CABINET BEZEL ASSY BT16 and disconnect cables as described in 8-28-4
"Removal Procedure" 2), 3), 4) and 7) on page 8-93.
8-45-4 Removal Procedure
1.) Pull the DBM/DPI out of the Nest Frame

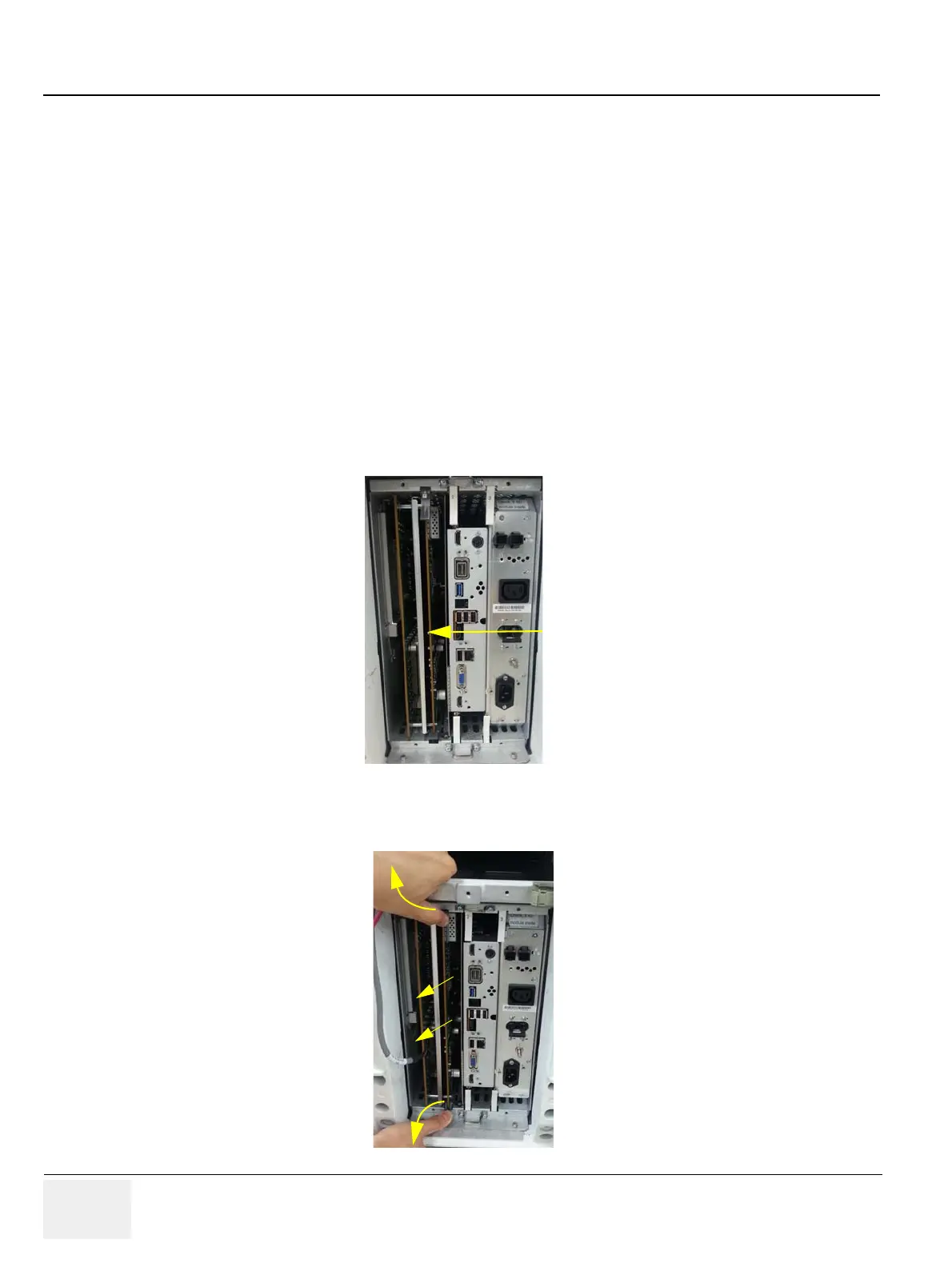

Figure 8-202 DBM/DPI
Figure 8-203 Drawing the DBM/DPI
DBM64
