GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

9-26 Section 9-14 - Biopsy Needle Guide

Section 9-14

Biopsy Needle Guide

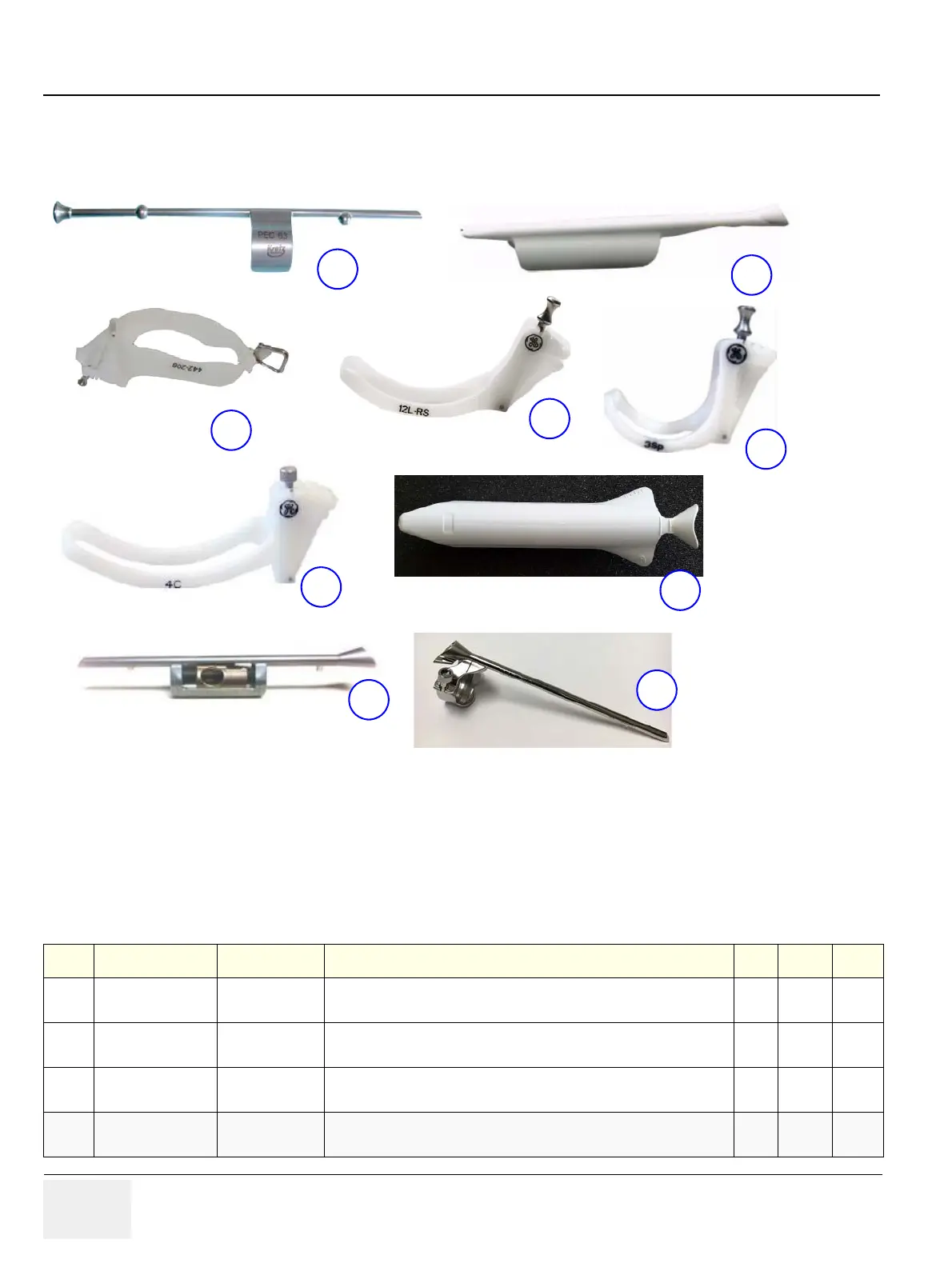

Figure 9-13 Biopsy Needle Guides

Table 9-18 Biopsy Needle Guides

Item Part Name Part Number Description Qty CRU FRU

1001

PEC63 H46721R

Reusable biopsy needle guide for probe RIC5-9A-RS needle

diameter: < 1.8 mm

-1N

1002

RIC Single-andgle

bracket

H48681GF

Disposable biopsy needle guide for probe RIC5-9A-RS needle

diameter:1.2 - 1.6 mm

-1N

1003

RAB Single-angle

bracket

H48681ML

Non Sterile Single Angld Bracket needle guide for porbe RAB2-6-RS

needle diameter: > 0.6mm - < 2.1 mm

-1N

1004

12L-RS

Multiangle bracket

H40432LC

Non Sterile Multi Angle Bracktet needle guide for probe 12l-RS needle

diameter: > 0.6 mm -< 2.1 mm

- 1 N

1001

1004

1003

1002

1005

1006

1007

1008

1009
