GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-181

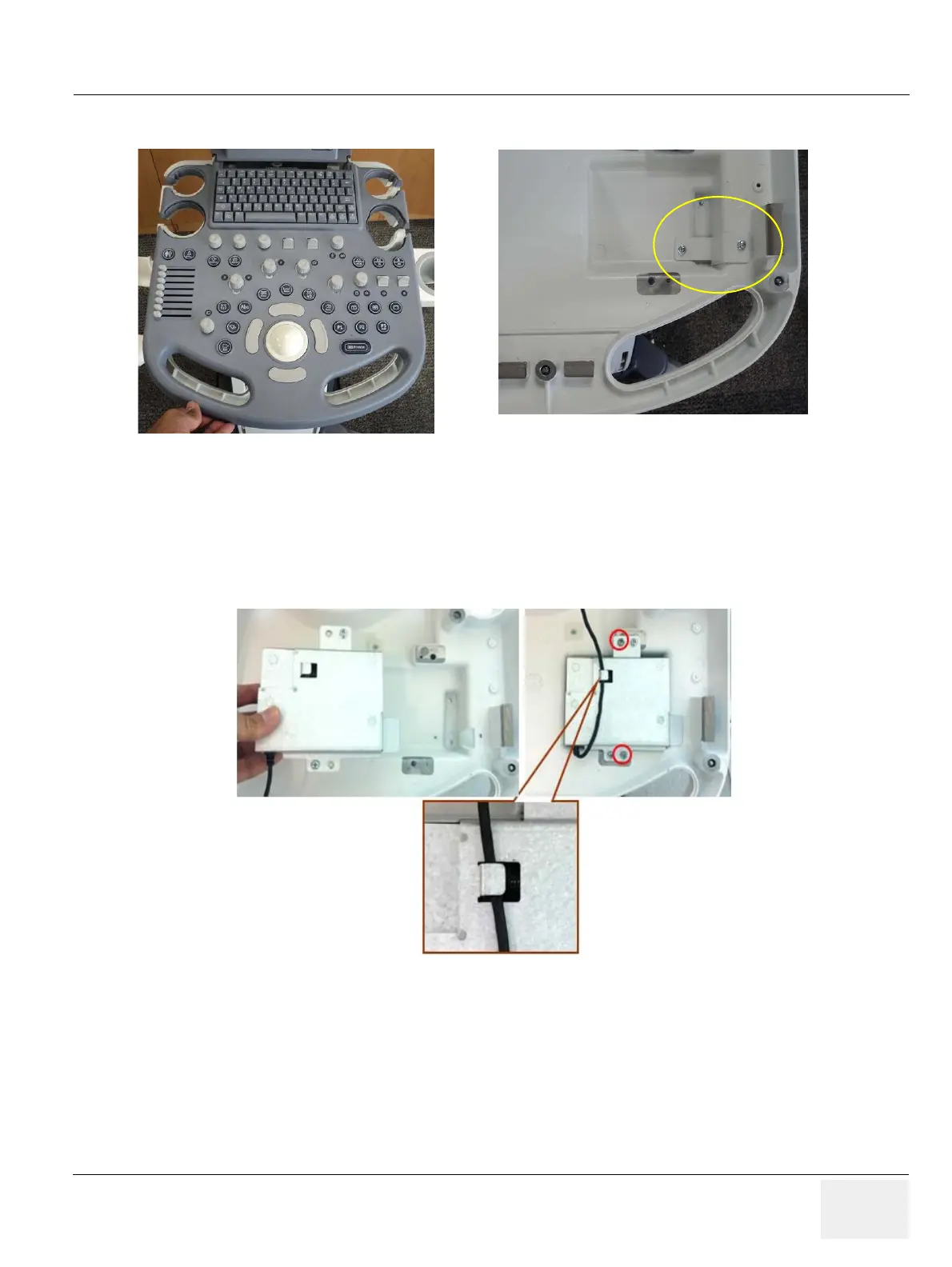

3.) Open keyboard assembly.

4.) Remove ECG DUMMY BRKT.

Figure 8-255 ECG DUMMY BRKT

8-57-5 Installation Procedure

1.) Assemble ECG kit on keyboard base.

2.) Screw ECG kit with Keyboard base using 2 screws (2159625-screw w/SP PH m4x8)and fix ECG

USB cable by using the hook of bracket.

Figure 8-256 ECG kit Installation
