5-24 Section 5-3 - FrontEnd Processor

5-3-2 DBM64- Beam former board

DBM64DBM64 board has 64 TX/RX channels, respectively. beamformer board is a complete 64

channel ultrasound Front-end that includes the following features and functions:.

- TX-pulse genetration, TX-Apodization, TX-Focus

- RX-Focus Delay and summation

- Full receiving channel with integrated AFE IC: TGC + Anti-Aliasing Filter + ADC

- High Voltage Multiplexer 192 x 64 channels (DBM64)

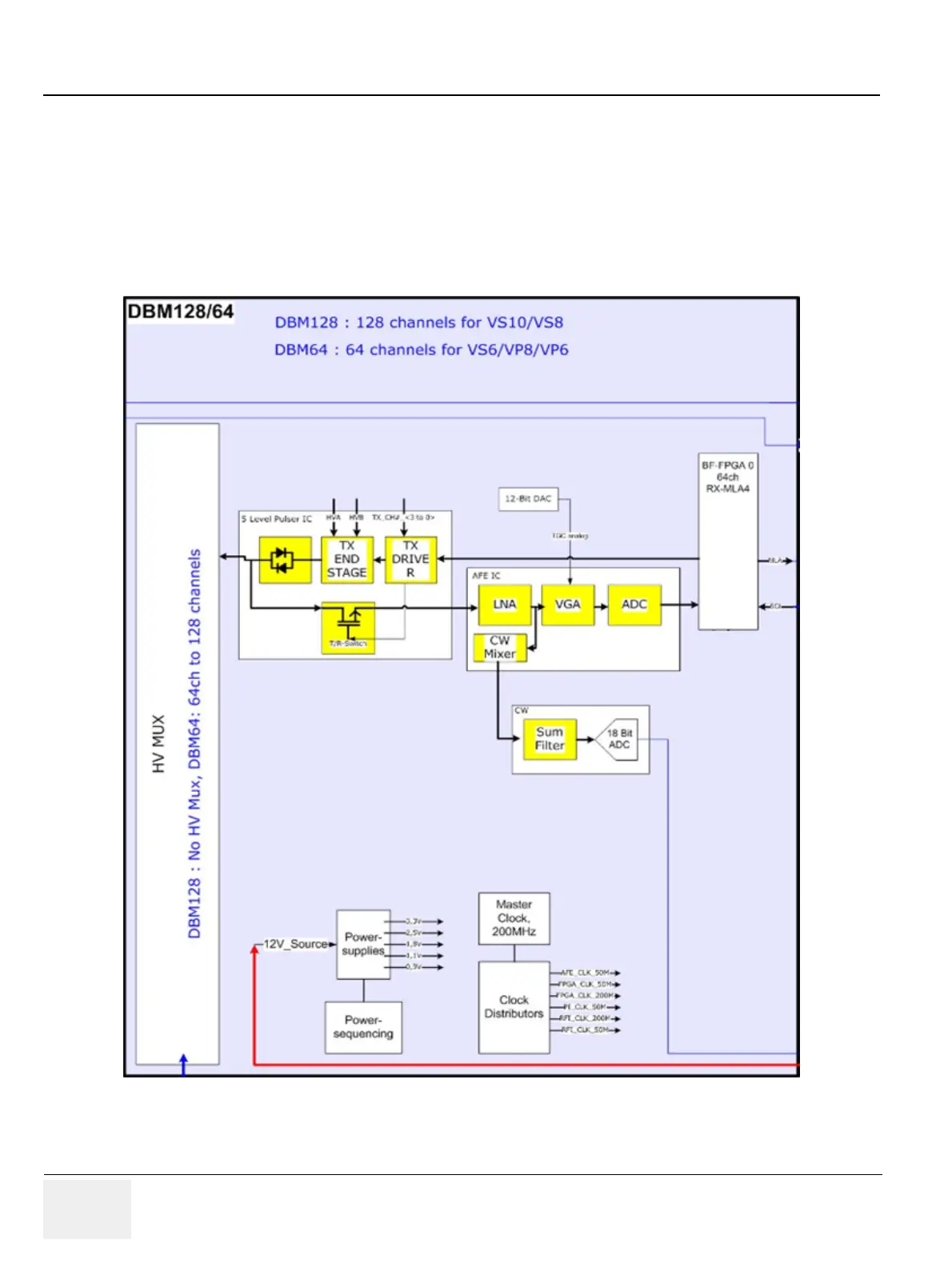

Figure 5-8 Beamformer + Frontend
