GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-152 Section 8-49 - Replacement of the DVD

3.) Unscrewing 2 screws to remove the DVD .

4.) Unscrewing 4 screws to remove the SIDE STRIPS.

8-49-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-40: Replacement of the DVD - Functional Tests..

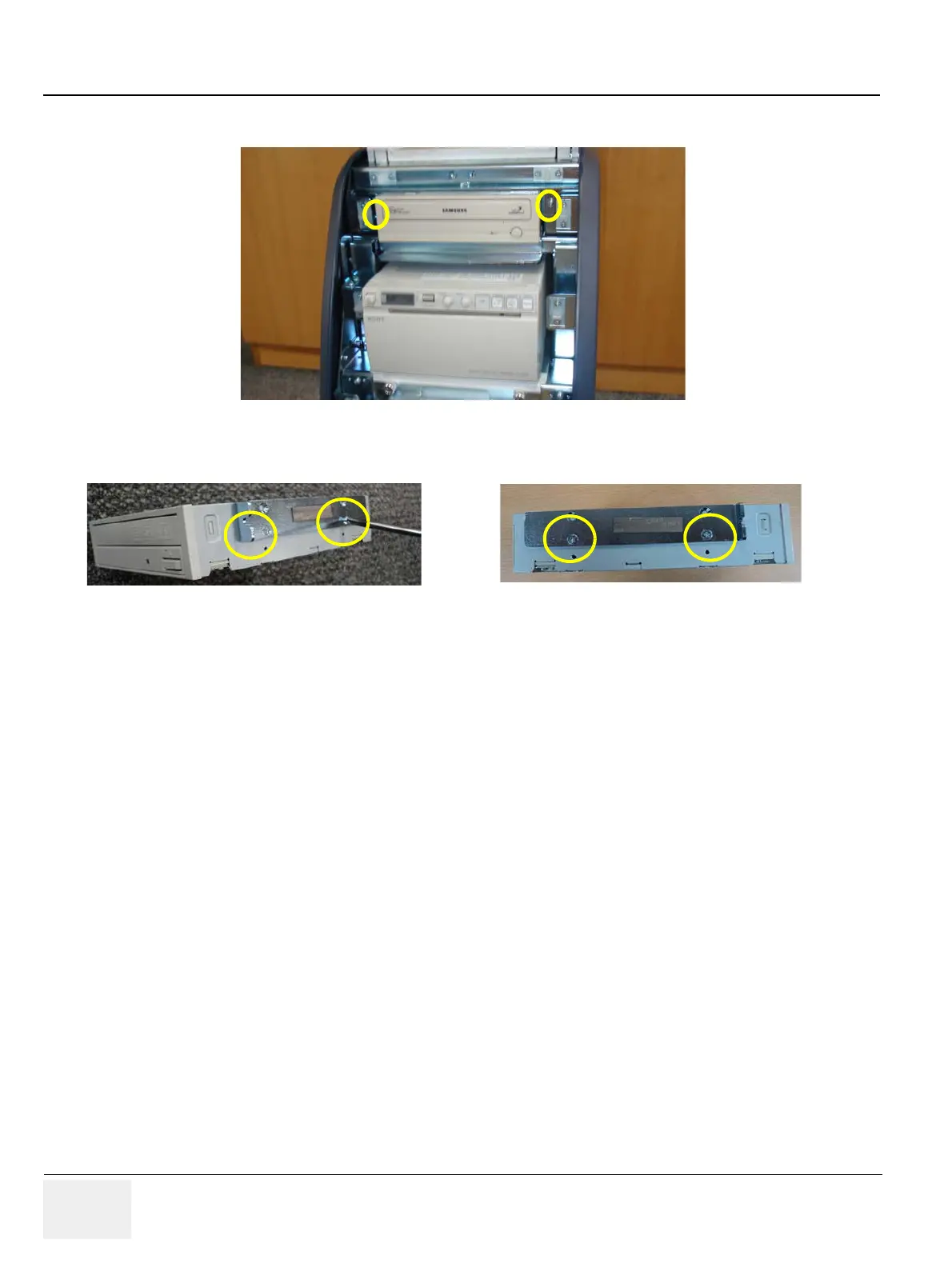

Figure 8-215 Removing the DVD

Figure 8-216 Removing the SIDE STRIPS
