GE DRAFT VOLUSON™ P8 / VOLUSON™ P6
DIRECTION 5723243, R
EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-127
Section 8-40
Replacement of the SPEAKER COVER LEFT/RIGHT
8-40-1 Manpower
One person, 5 minutes
8-40-2 Tools
Philips screwdriver
8-40-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-40-4 Removal Procedure
1.) Remove 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT. Refer to the figure below.
2.) Unscrew 2 screws, then remove the SPEAKER COVER LEFT/RIGHT. Refer to the figure below.
8-40-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.

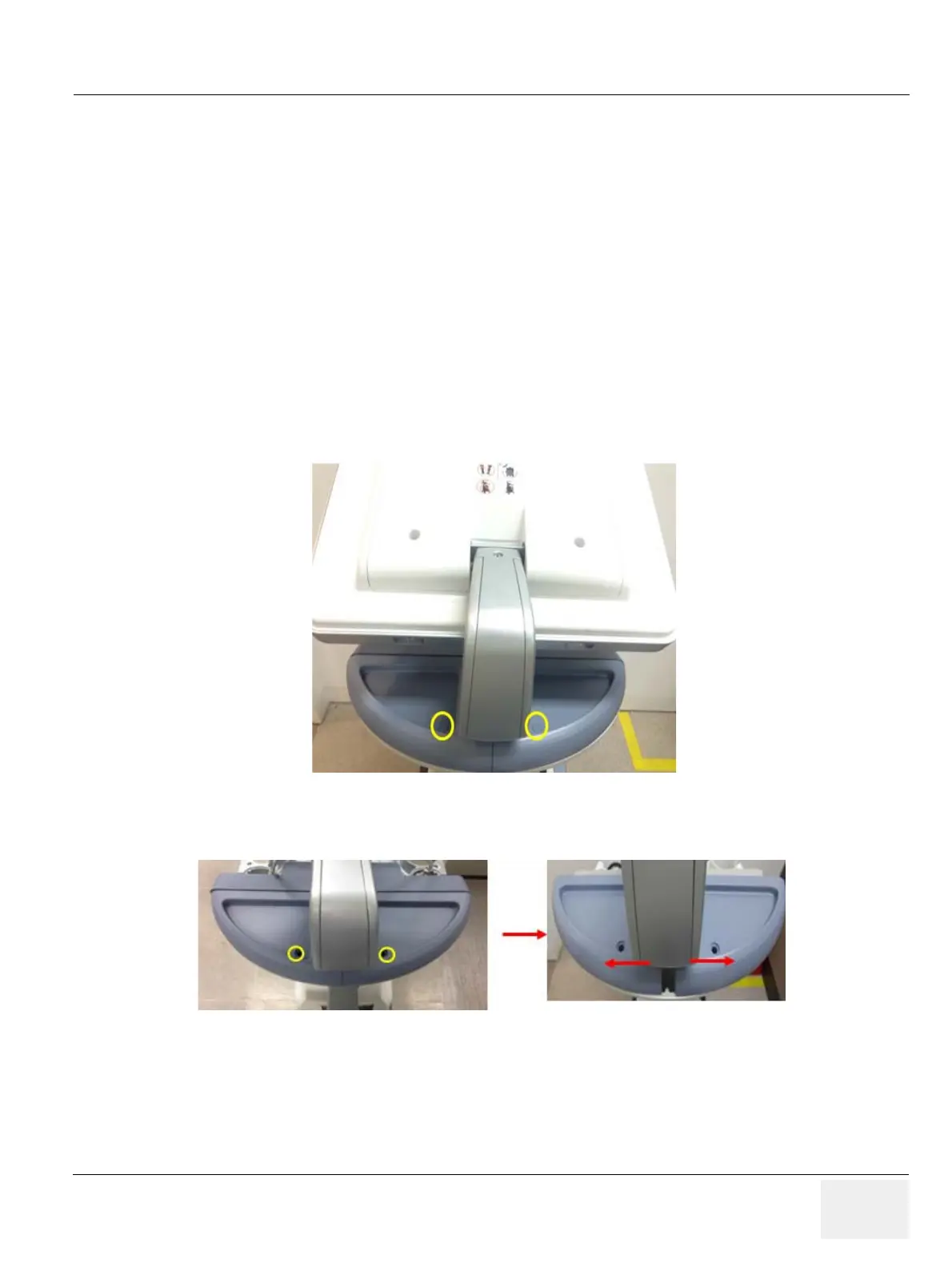

Figure 8-185 Removing 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT
Figure 8-186 Unscrewing 2 screws to remove SPEAKER COVER LEFT/RIGHT
