GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-55

7.) After removing trackball, unscrew 21 screws and disconnect TGC calbe. And lift up the main

keyboard circuit board. Refer to the figure below.

8.) Remove the button to be replaced. Refer to the figure below.

8-18-4 Installation Procedure

Install a new part in the reverse order of removal procedure.

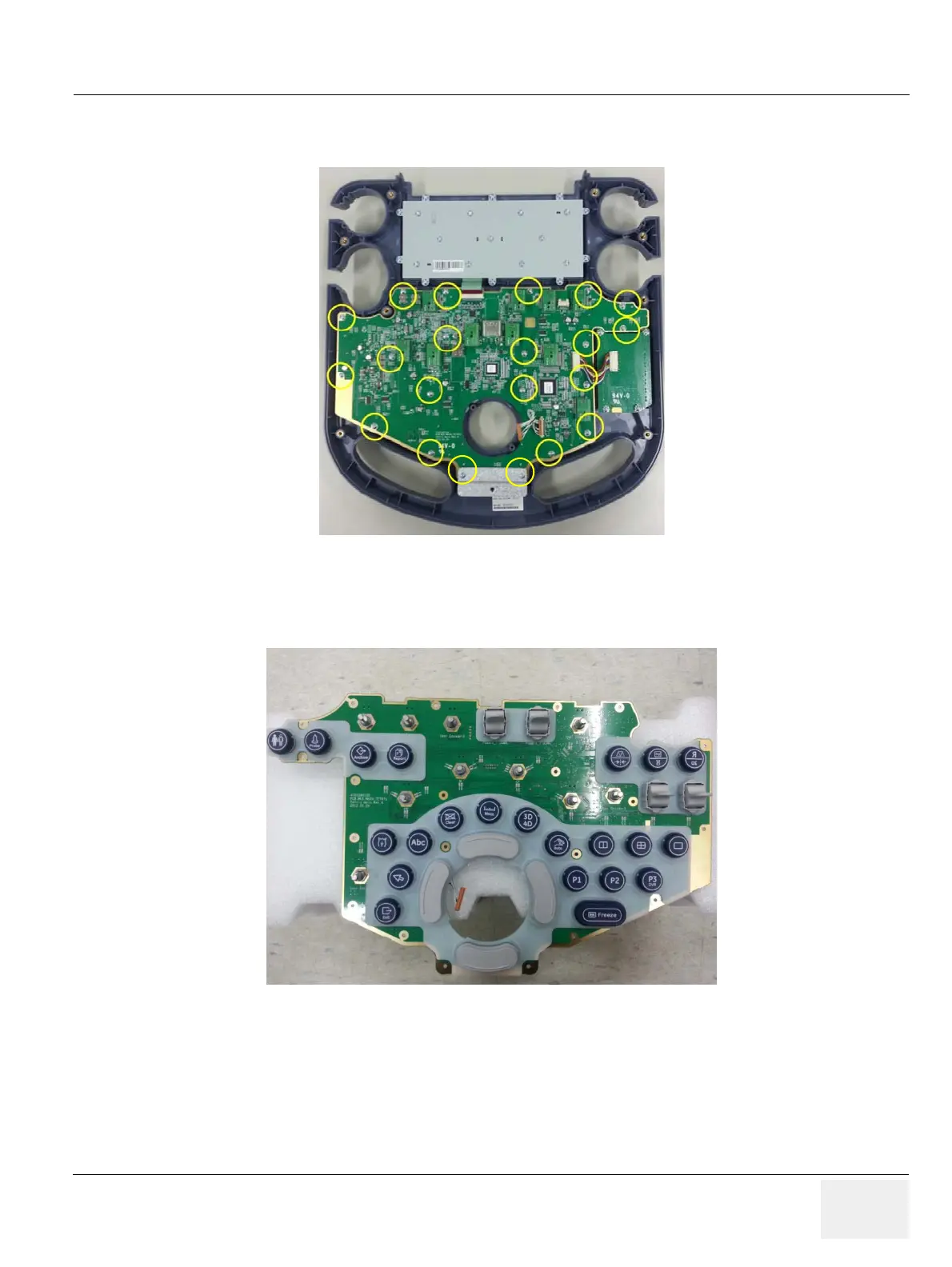

Figure 8-70 Lifting up the main keyboard circuit board after unscrewing 21 screws and

disconnecting TGC cable

Figure 8-71 Removing the button
