GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-102 Section 8-31 - Replacement of SIDE COVER L ASSY BT16

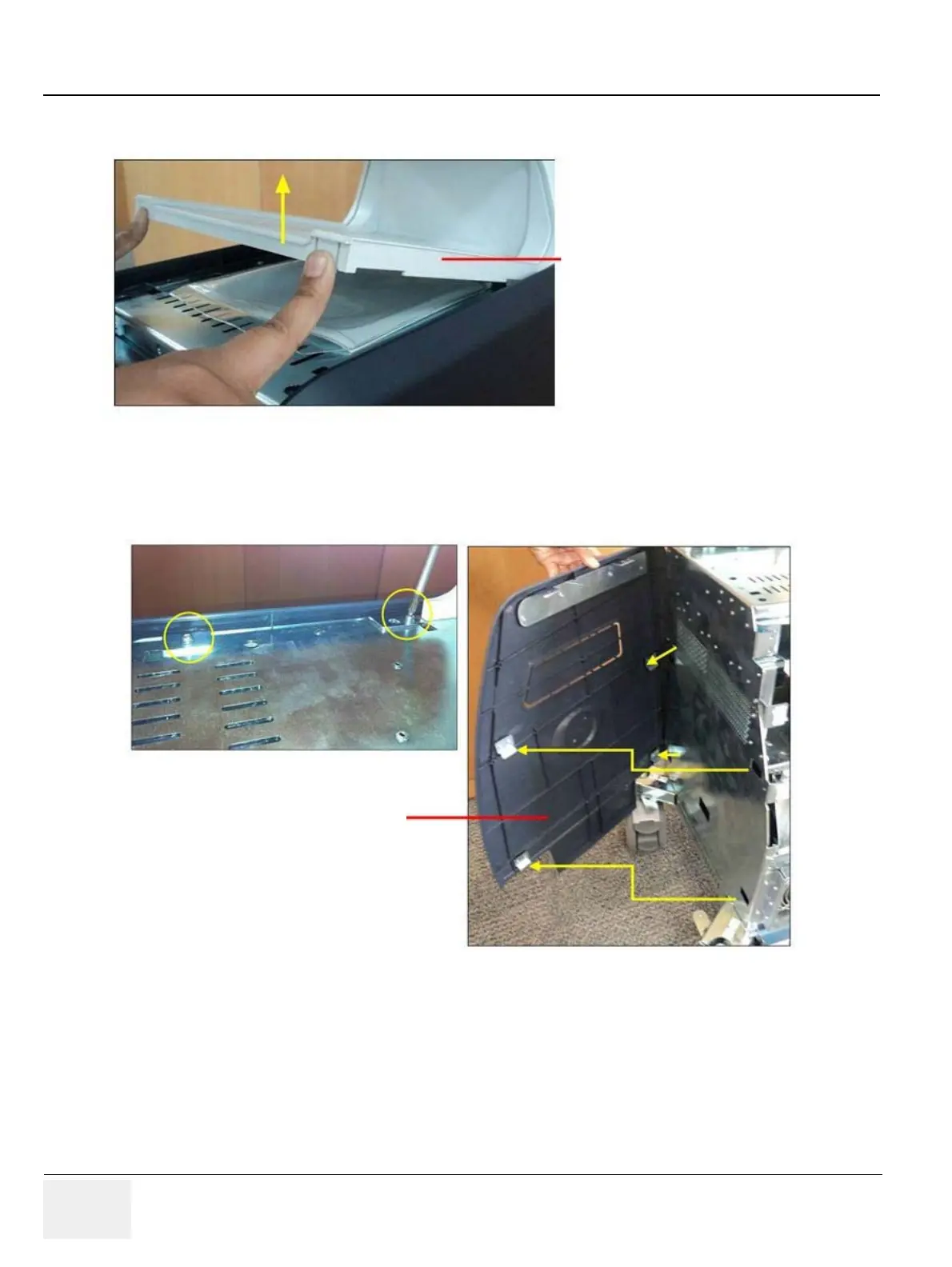

3.) Remove the TOP CABINET COVER BT16. Refer to the figure below.

4.) Unscrew 2 screws, and remove the ASSY LEFT SIDE PLASTIC COVER BT16. Refer to the figure

below.

8-31-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

Figure 8-150 Removing the TOP CABINET COVER BT16

Figure 8-151 Removing the ASSY LEFT SIDE PLASTIC COVER BT16

TOP CABINET COVER BT16

ASSY LEFT SIDE PLASTIC

COVER BT16
