Chapter 8 - Replacement Procedures 8-123
Section 8-38
Replacement of the SIDE CABINET TRAY BT16
8-38-1 Manpower
One person, 2 minutes
8-38-2 Tools
Philips screwdriver
8-38-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-38-4 Removal Procedure
1.) Unscrew 2 screws and remove the SIDE CABINET TRAY BT16. Refer to the figure below.
8-38-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-25: Replacement of the Side Cabinet Tray BT16 - Functional Tests.

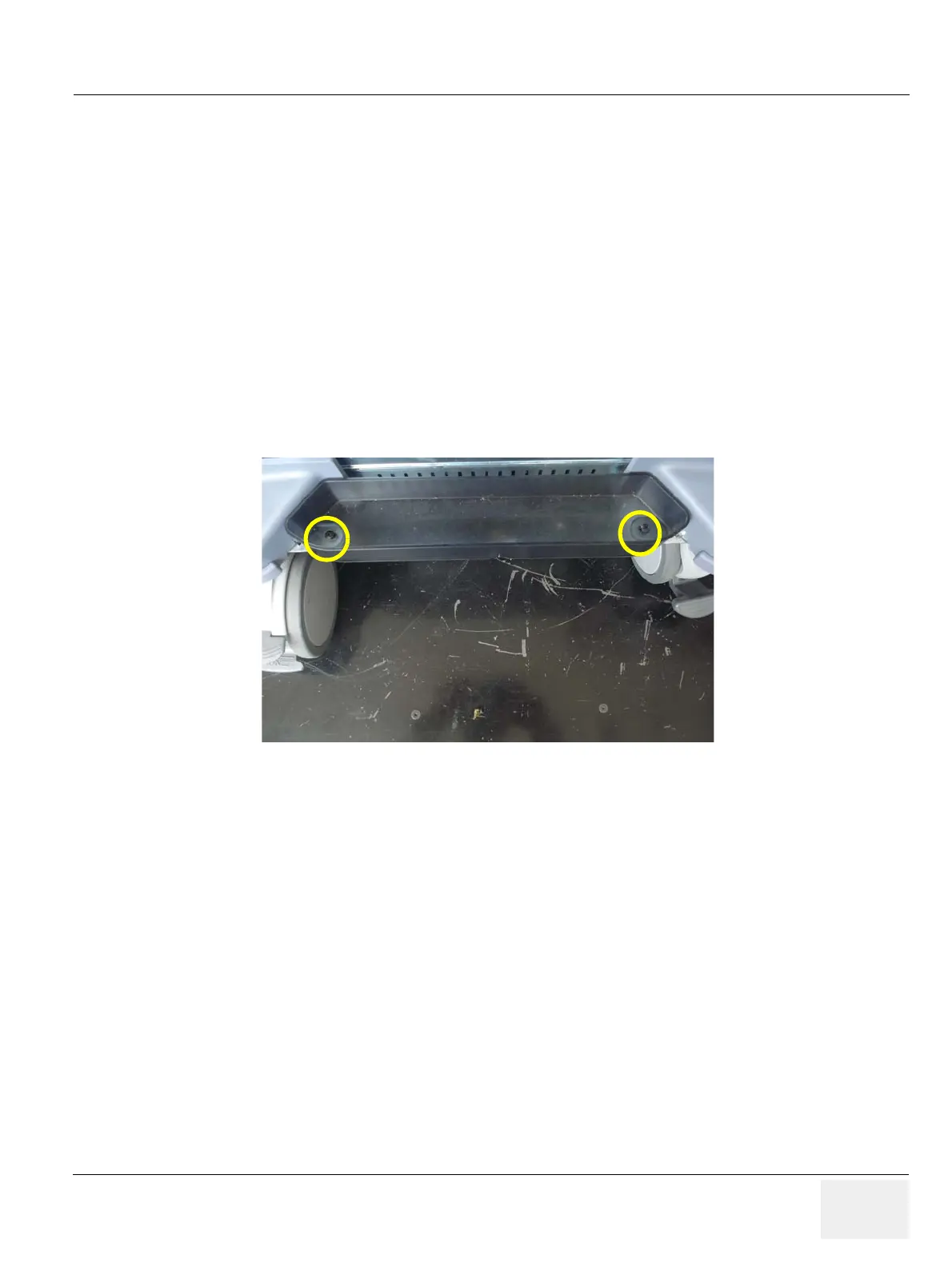

Figure 8-179 Unscrewing 2 screws and remove SIDE CABINET TRAY BT16
