GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-163

8-52-3-2 Color Printer Assembly

1.) Assemble 2 EMI gaskets (5448934 - EMI gasket, side, b-w printer bkt-3) on printer base plate.

2.) Assemble 2 EMI gaskets (5448934 - EMI gasket, side, b-w printer bkt-3) on printer base plate.

3.) Assemble 2 EMI gaskets (5457475 - EMI gasket, side, b-w printer bkt-1) on printer base plate.

4.) Assemble printer base pate with B/W printer using 8 screws (2306562-screw FH M3 x 6).

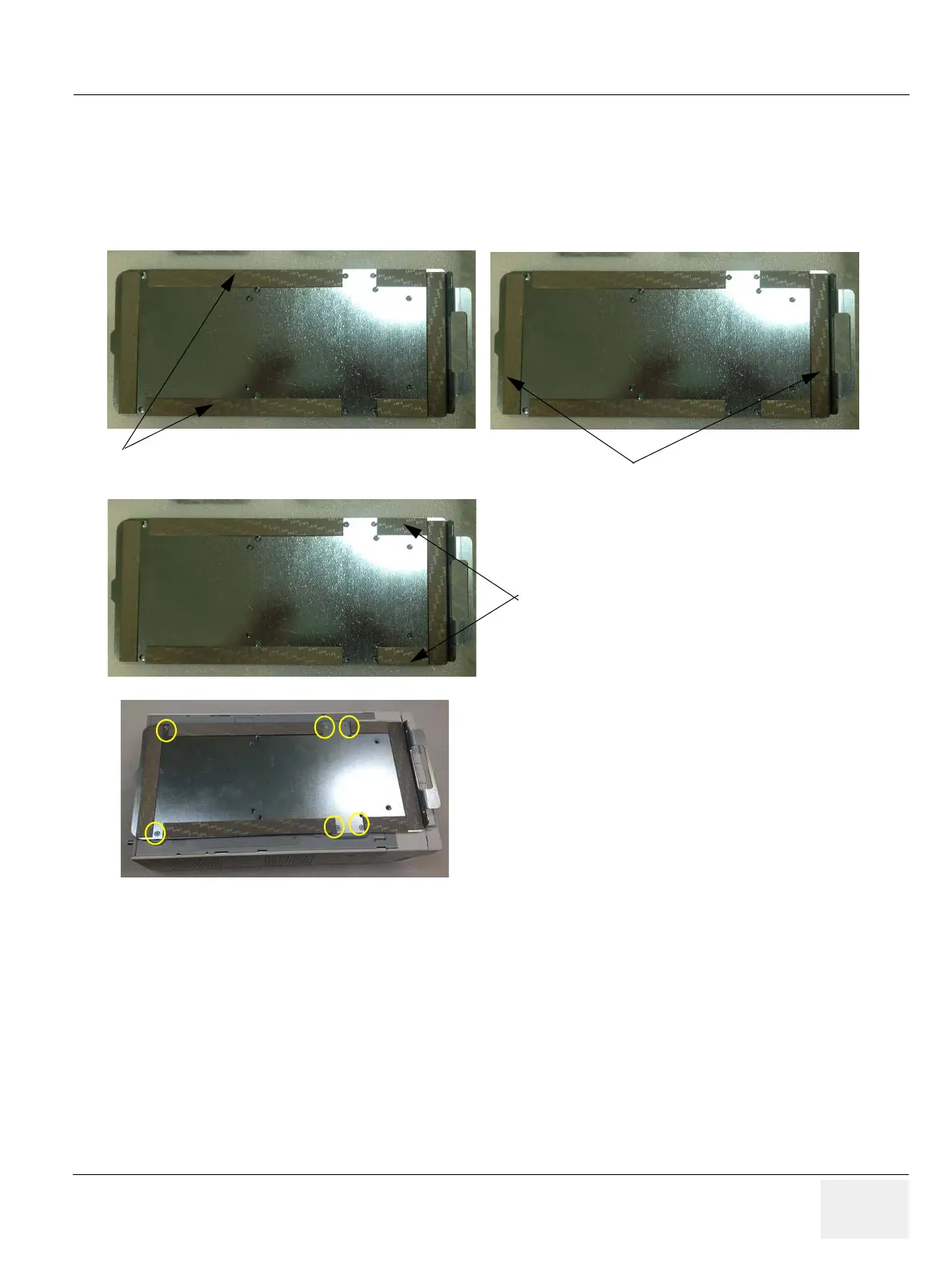

Figure 8-230 Color Printer assembly

EMI Gaskets (5448934)

EMI Gaskets (5447303)

EMI Gaskets (5457475)
