GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-45

10.)Remove the On-Off key circuit. Refer to the figures below.

8-16-4 Installation procedure

Install a new part in the reverse order of removal procedure.

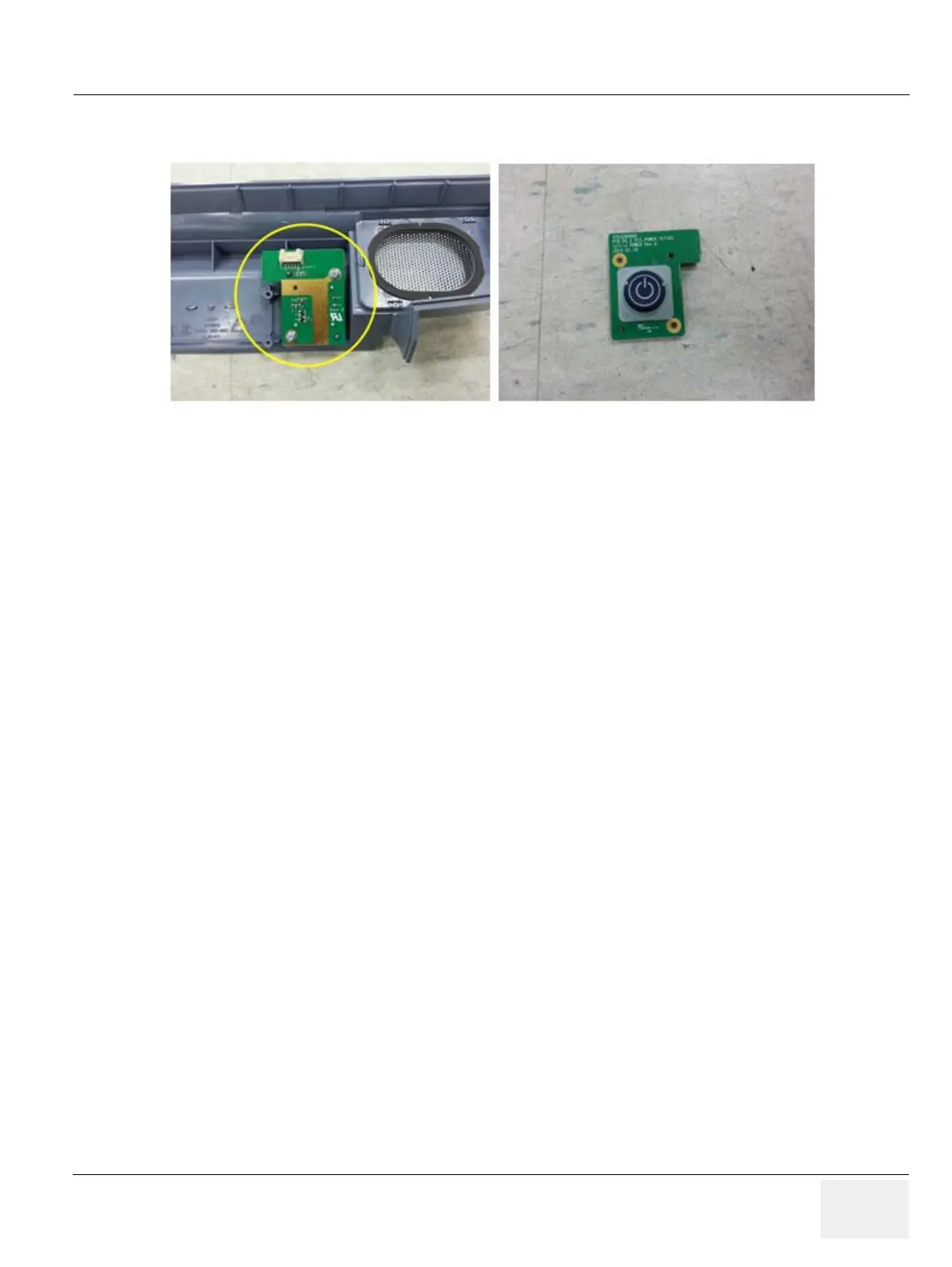

Figure 8-55 Removing the On-Off key circuit
