GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 3 - Setup Instructions 3-95

Section 3-15

Paperwork

NOTE: During and after installation, the documentation (i.e. User Manual, Installation Manual,...) for the

peripheral units must be kept as part of the original system documentation. This will ensure that all

relevant safety and user information is available during the operation and service of the complete

system.

3-15-1 Product Locator Installation

NOTE: The Product Locator Installation Card shown may not be same as the provided Product Locator card.

3-15-2 User Manual(s)

Check that the correct User Manual(s) for the system and software revision, is included with the

installation. Specific language versions of the User Manual may also be available.

Check with your GE Sales Representative for availability.

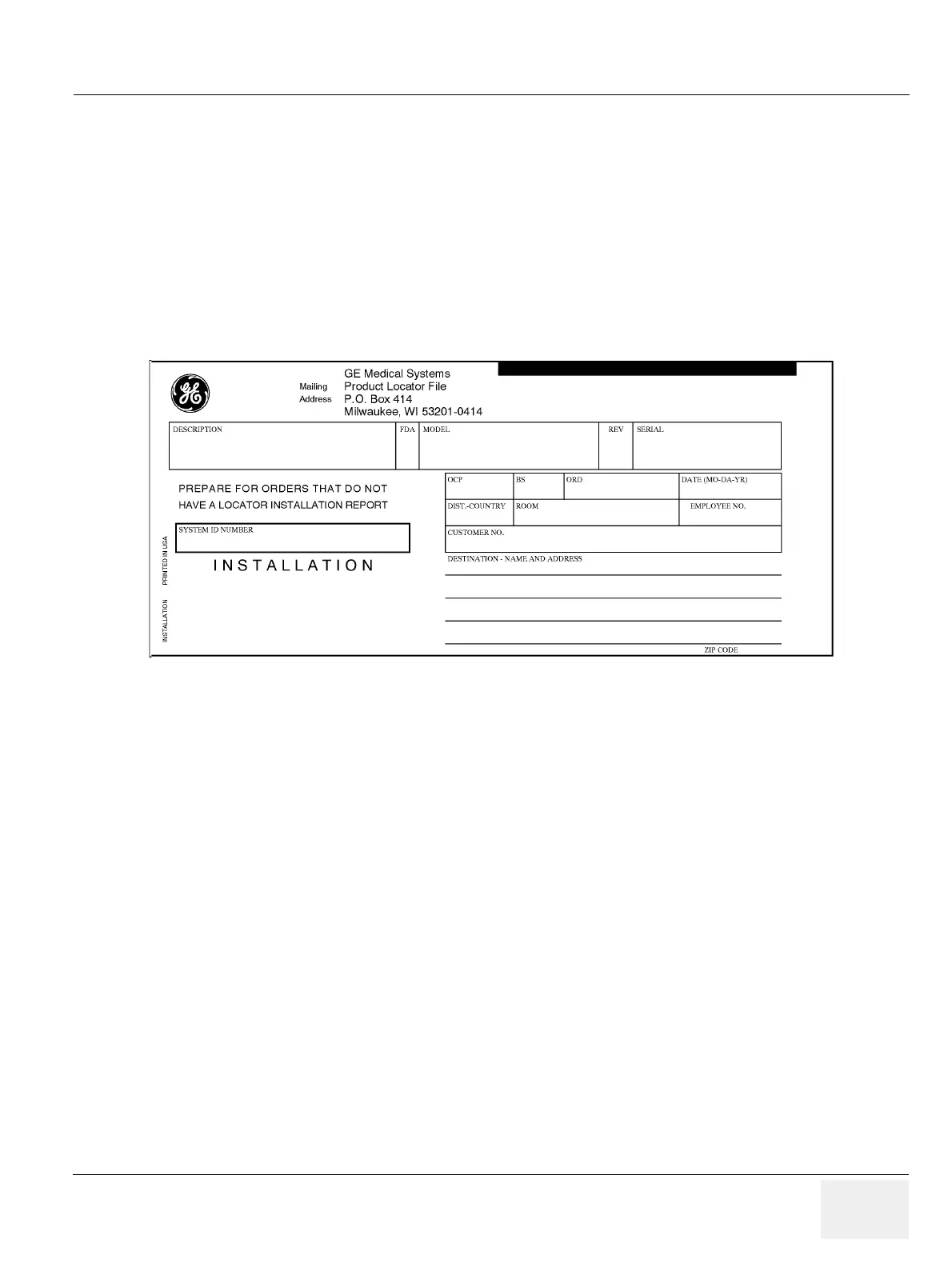

Figure 3-97 Product Locator Installation Card
