ENGINE
B2050, B2350, B2650, B3150, WSM
1-S27

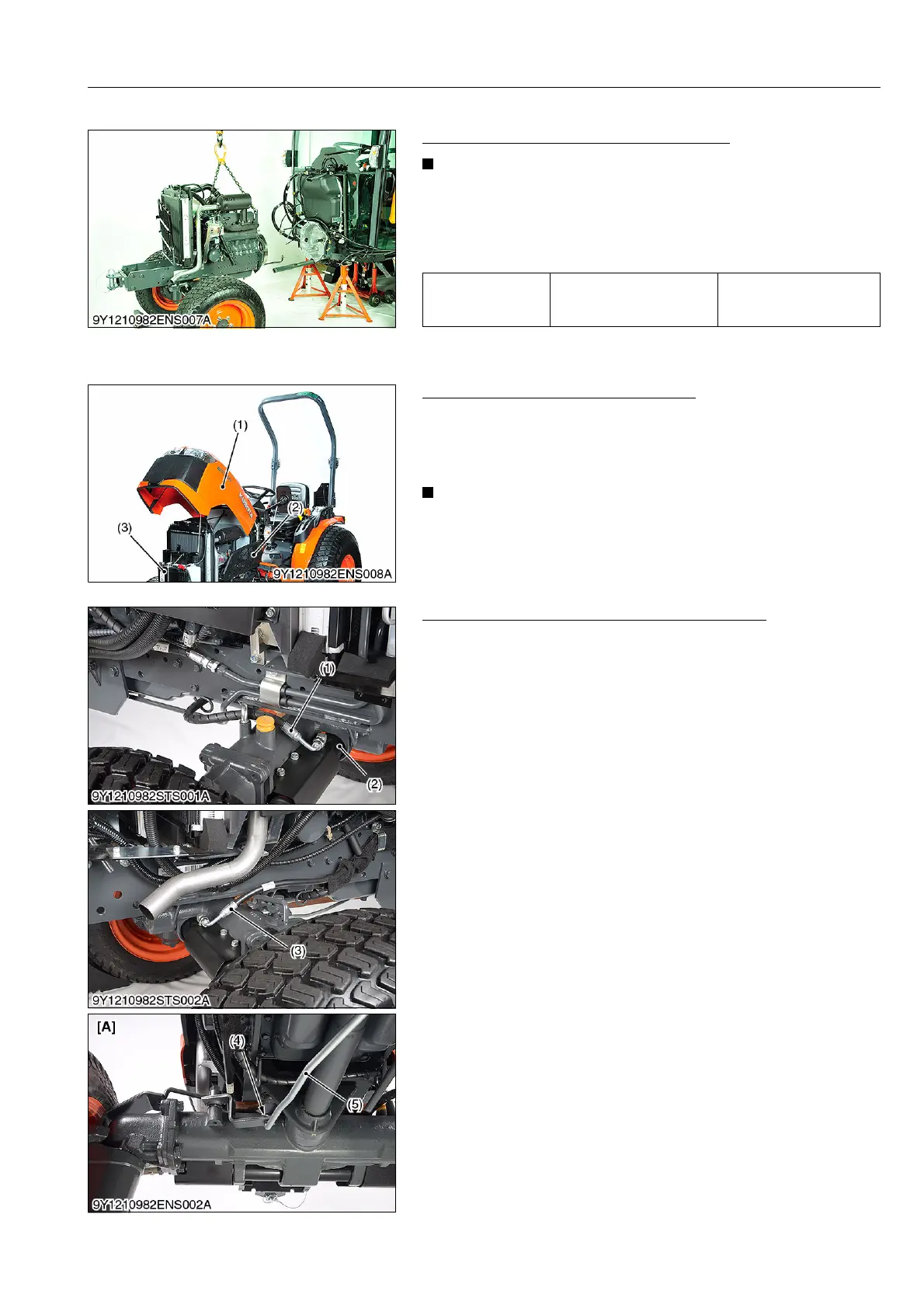

(3) Separating Engine from Front Axle Frame (CABIN)
Separating Engine from Front Axle Frame
• When you replace the engine with new one, please record
the serial number of new engine and the parts number
which is incorporate with its new engine.
1. Remove the engine and front axle frame mounting screw and
separate the engine from the front axle frame.
9Y1210982ENS0119US0
(4) Separating Engine from Clutch Housing (ROPS)
Bonnet, Side Cover and Battery Cord
1. Open the bonnet (1).
2. Disconnect the battery negative cord.
3. Disconnect the head light connectors and remove the bonnet
(1) side covers (2).
• When disconnecting the battery cords, disconnect the
grounding cord first. When connecting, positive cord first.
9Y1210982CLS0006US0
Hydraulic Hoses from Power Steering Cylinder
1. Disconnect the hydraulic hoses (1), (3) from the power steering
cylinder (2).
2. Removing the snap pin (4) and disconnect the bi-speed rod (5).
9Y1210982CLS0007US0
Tightening torque Engine mounting screw
59 to 69 N·m
6.1 to 7.0 kgf·m
44 to 50 lbf·ft
(1) Bonnet
(2) Side Cover
(3) Battery
(1) Hydraulic Hose (R.H.)
(2) Power Steering Cylinder
(3) Hydraulic Hose (L.H.)
(4) Snap Pin
(5) Bi-Speed Rod
[A] Bi-Speed Turn Model
To Next Page
