CABIN
B2050, B2350, B2650, B3150, WSM
10-S43
Heater Hoses

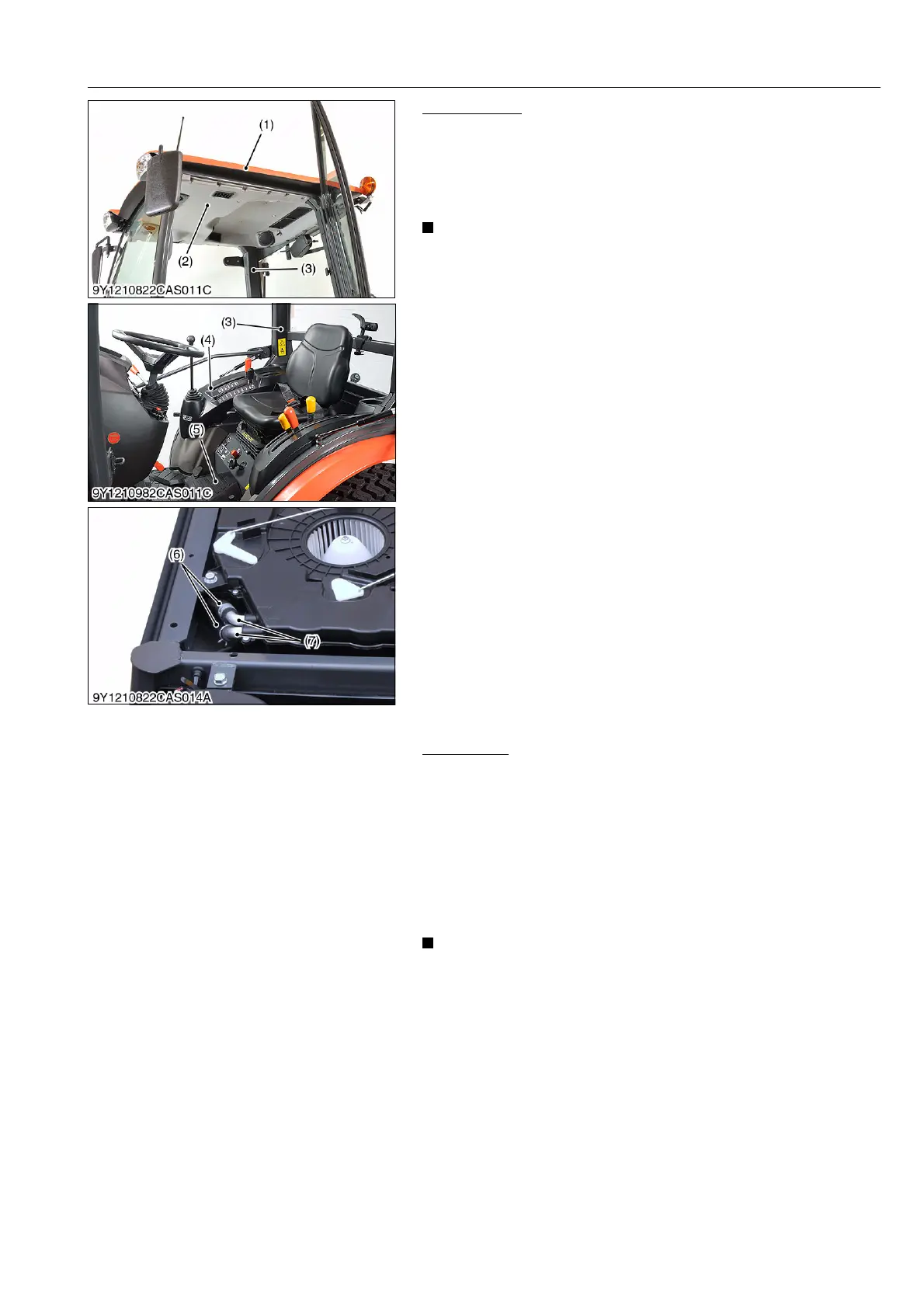

1. Remove the outer roof (1), inner roof (2) and inner cover (3).
2. Remove the lever grips, lever guide (4) and floor mat (5).
3. Disconnect the heater hoses (6) from the hose pipes (7).
4. Pull out the heater hoses (6) from the bottom of the cabin.
5. Remove the heater hoses (6).
• Before disconnecting the heater hoses (6), put the parting
marks on the hoses for marking proper reconnecting.
(When reassembling)
• Connect the heater hoses at their original positions.
• In assembling the heater hose (6) to the pipe (7), connect the
heater hose with identification mark (white paint) to upper side
of the hose pipe.
• When connecting the heater hose with A/C unit, hose should be
put into the A/C unit pipe more than 30 mm (1.2 in.).
9Y1210982CAS0089US0
(7) Cabin Windshields
Preparation
1. Prepare the followings.
• Cutter knife :1 piece
• Scraper : 1 piece
• Gun for coating : 1 piece
• Sika Flex 250P-JM-1 or equivalent
• Gummed tape
• Sika primer 260P-JM-1
• Shin Etsu silicon KE420
• Sika-cleaner 205
• Sika product are made by Sika Corporation.
• Shin Etsu silicon KE420 is made by Shin Etsu Polymer
Corporation.
• These materials can't be provided by Kubota Corporation.
• Therefore, please find the local made equivalent materials
in your country and use them when you need.
9Y1210982CAS0067US0
(1) Outer Roof
(2) Inner Roof
(3) Inner Cover
(4) Lever Guide
(5) Floor Mat
(6) Heater Hose
(7) Heater Pipe
To Next Page
