TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S56

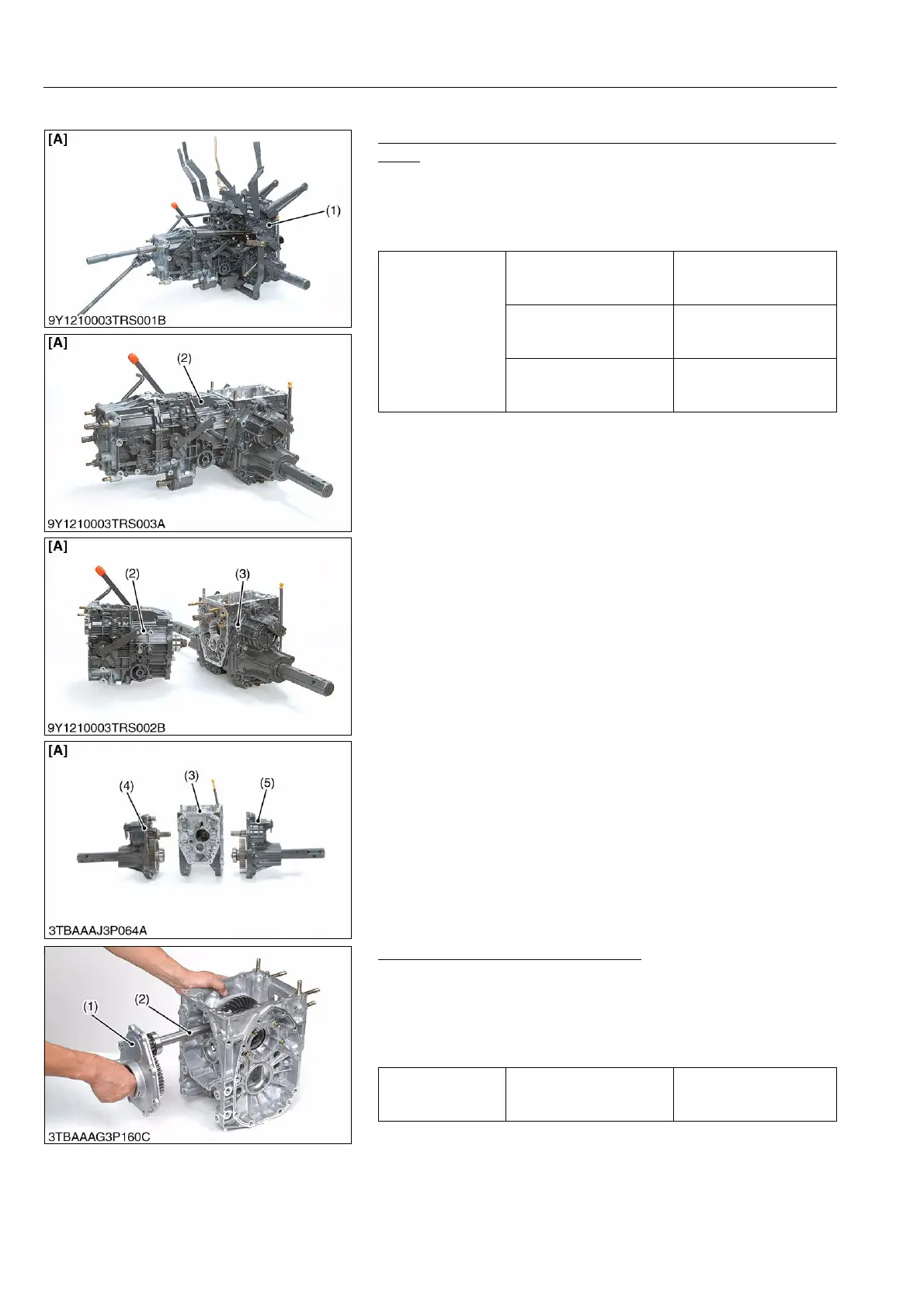

(12) Differential Gear Section
Separating Hydraulic Cylinder, Transmission Case and Rear
Axles
1. Remove the hydraulic cylinder as an assembly.
2. Separate the transmission case.
3. Separate the rear axles.
(When reassembling)
9Y1210982TRS0087US0
Rear-PTO Case and Rear PTO Shaft
1. Remove the rear PTO cover mounting bolts and the rear PTO
cover (1).
(When reassembling)
• Apply liquid gasket (Three Bond 1206D or equivalent) to the
joint surface of the rear axles cases and the rear PTO cover.
9Y1210982TRS0088US0
Tightening torque
Hydraulic cylinder
mounting bolt (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 lbf·ft
Transmission case
mounting bolt and nut
(M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Rear axle case mounting
bolt (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Hydraulic Cylinder Assembly
(2) Transmission Case
(3) Differential Case
(4) Rear Axle Case, R.H.
(5) Rear Axle Case, L.H.
[A] Manual Transmission Model
Tightening torque
Rear PTO cover mounting
bolt for aluminum (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Rear PTO Cover (2) PTO Drive Shaft
KiSC issued 03, 2014 A
