Kubota WSM B2050 User Manual

HYDRAULIC SYSTEM
B2050, B2350, B2650, B3150, WSM
8-M2
[2] MANUAL TRANSMISSION MODEL (WITH BI-SPEED TURN)
Operating Pressure
9Y1210982HYM0002US0

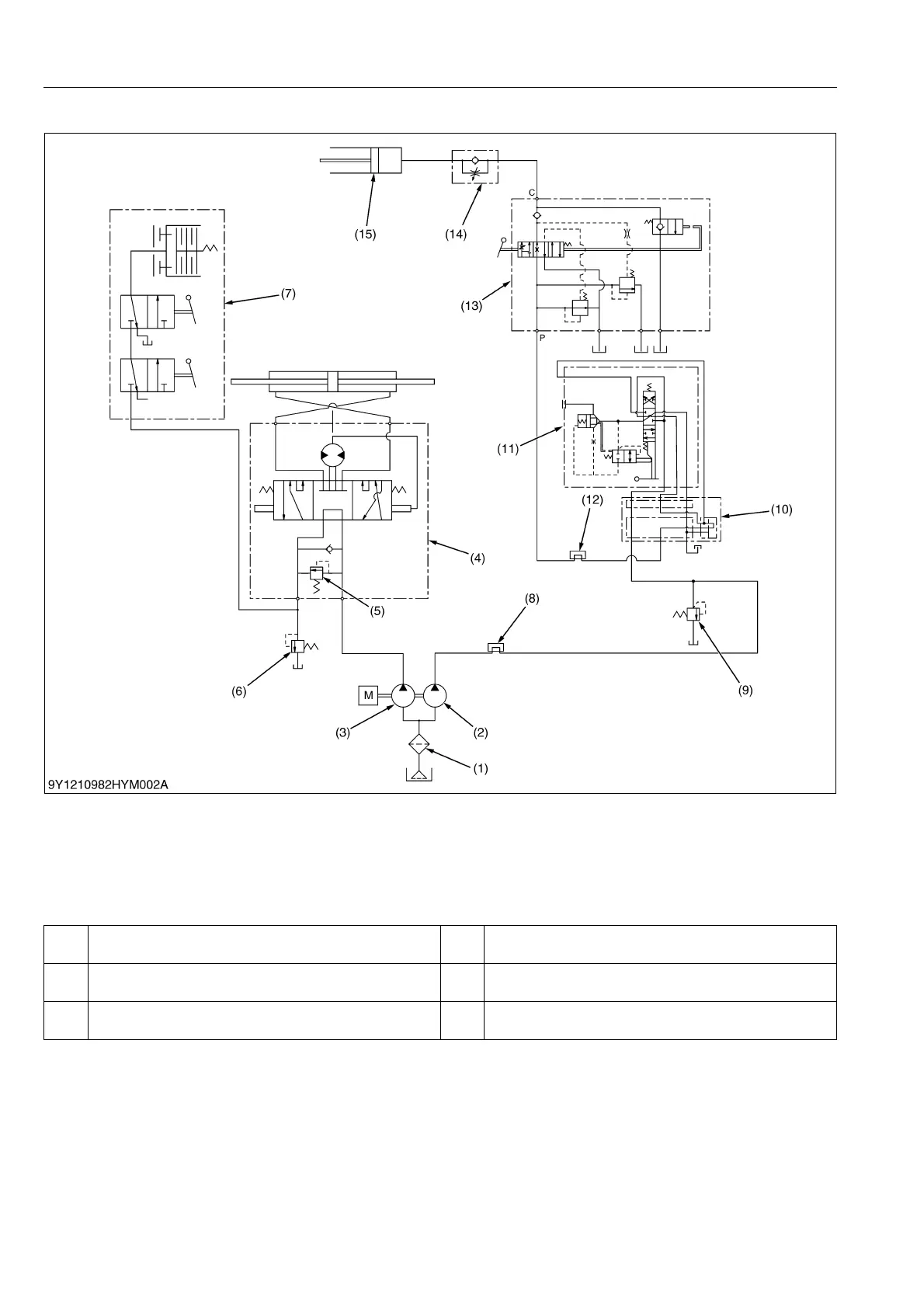

(1) Oil Filter
(2) Hydraulic Pump (For 3-point
Hitch)
(3) Hydraulic Pump (For Power
Steering and Bi-speed Turn)
(4) Power Steering
(5) Relief Valve (Power Steering
Controller)
(6) Regulating Valve (Bi-speed
Turn)
(7) Bi-speed Turn Valve and
Clutch
(8) Front Hydraulic Outlet
(9) Relief Valve (3-point Hitch
System)
(10) Hydraulic Outlet
(11) Remote Control Valve
(12) Rear Hydraulic Outlet
(13) Position Control Valve
(14) Lowering Speed Adjusting
Valve
(15) Hydraulic Cylinder
(2)
Hydraulic Pump (For 3-point Hitch)
Above 18.7 L/min. (4.94 U.S. gals/min., 4.11 Imp. gals/min.)
(6)
Regulating Valve (For Bi-speed Turn)
0.4 to 0.6 MPa (4.1 to 6.1 kgf/cm
2
, 58 to 87 psi)
(3)
Hydraulic Pump (For Power Steering)
Above 14.1 L/min. (3.72 U.S. gals/min., 3.10 Imp. gals/min.)
(9)
Relief Valve (For 3-point Hitch System)
15.5 to 16.5 MPa (158 to 168 kgf/cm
2
, 2248 to 2393 psi)
(5)
Relief Valve (For Power Steering Controller)
11.5 to 12.5 MPa (118 to 127 kgf/cm
2
, 1670 to 1810 psi)
