CLUTCH
B2050, B2350, B2650, B3150, WSM
2-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

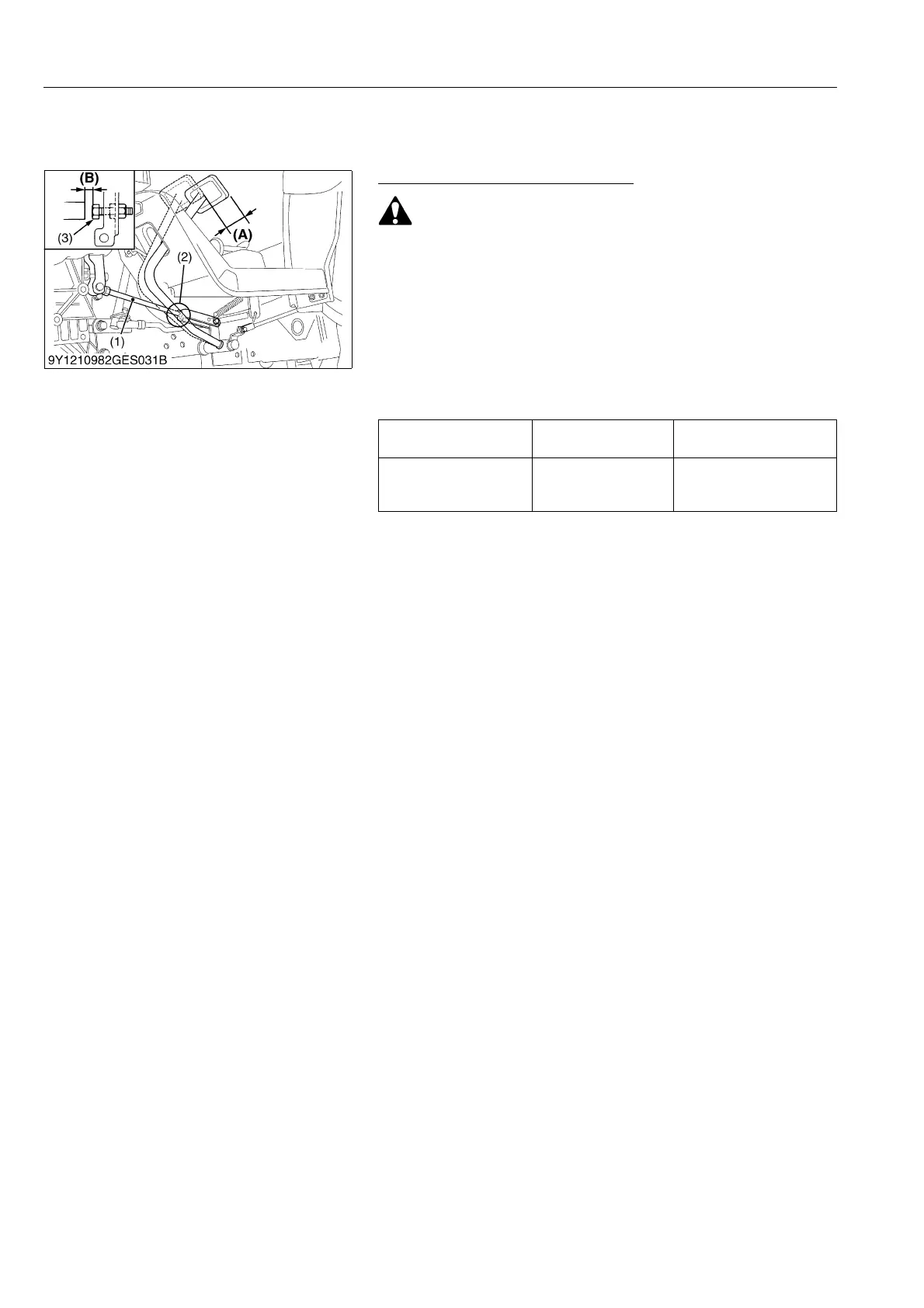

Checking Clutch Pedal Free Travel
• When checking, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Slightly depress the clutch pedal and measure stroke (A) at the
top of pedal stroke.
2. If the measurement is not within the factory specifications,
loosen the lock nut (2) and adjust the clutch pedal rod (1) length.
3. Retighten the lock nut (2).
4. After adjusting, release the clutch pedal and check the
clearance (B). If adjustment is needed, adjust the clearance
with the bolt (3).
9Y1210982CLS0004US0
Clutch pedal free travel
(A)
Factory specification
10 to 17 mm
0.40 to 0.66 in.
Clearance (B) Factory specification
Approximately
8.5 mm
0.33 in.
(1) Clutch Pedal Rod
(2) Lock Nut
(3) Bolt
(A) Clutch pedal free travel
(B) Clearance between bolt and
housing case
To Next Page
