STEERING
B2050, B2350, B2650, B3150, WSM
7-S10
[3] SERVICING
(1) Power Steering Cylinder
Steering Cylinder I.D.

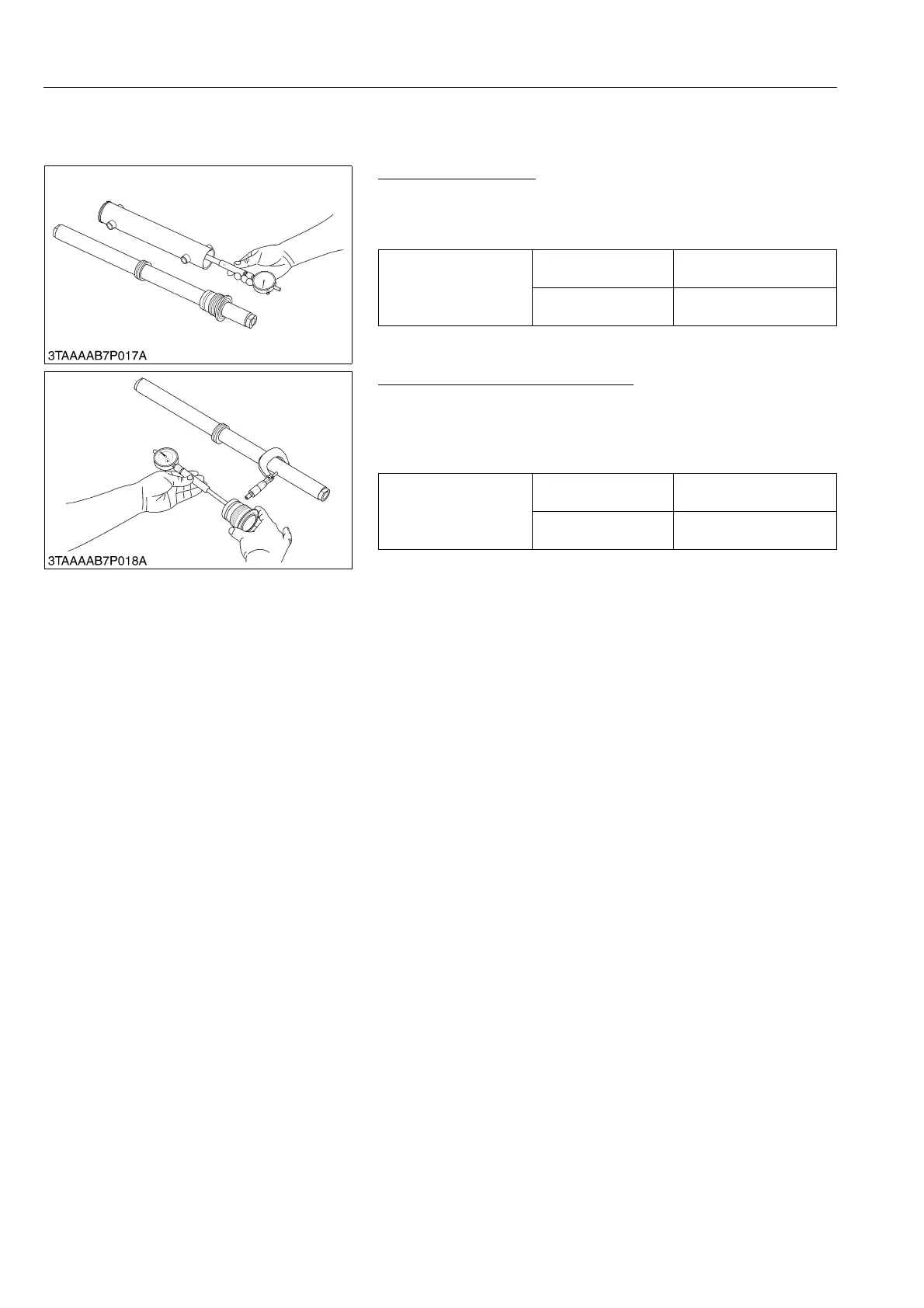

1. Measure the steering cylinder I.D. with a cylinder gauge.
2. If the cylinder I.D. exceed the allowable limit, replace the
cylinder barrel.
9Y1210982STS0011US0
Clearance between Rod and Guide
1. Measure the rod guide I.D. with a cylinder gauge.
2. Measure the rod O.D. with an outside micrometer, and calculate
the clearance.
3. If the clearance exceeds the allowable limit, replace as a unit.
9Y1210982STS0012US0
Steering cylinder I.D.
Factory specification
40.000 to 40.062 mm
1.57480 to 1.57724 in.
Allowable limit
40.100 mm
1.57874 in.
Clearance between rod
and guide
Factory specification
0.020 to 0.070 mm
0.00079 to 0.00276 in.
Allowable limit
0.200 mm
0.00787 in.
