CABIN
B2050, B2350, B2650, B3150, WSM
10-S38
(3) Removing Receiver and Condenser
Discharging Refrigerant
• See page 10-S17.
9Y1210982CAS0079US0

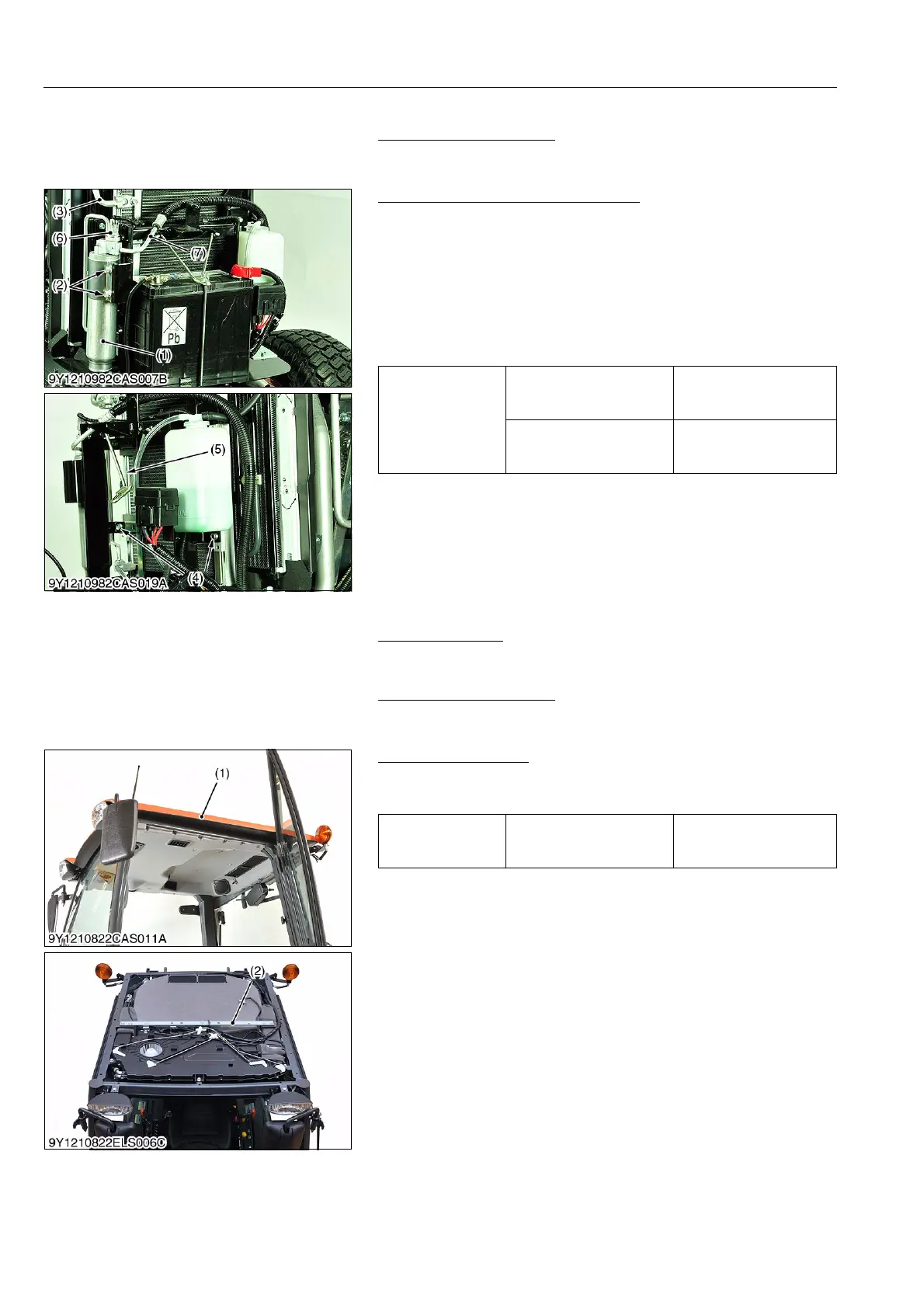

Removing Receiver and Condenser
1. Disconnect the pressure switch (6) and high pressure hose 1 (3)
and high pressure hose 2 (7).
2. Remove the bolts (2) from the receiver (1).
3. Remove the bolts (4).
4. Remove the receiver (1) with condenser (5) from the tractor
body.
(When reassembling)
• Do not damage the O-rings.
9Y1210982CAS0064US0
(4) Removing Air Conditioner Unit
Draining Coolant
• See page 1-S23.
9Y1210982CAS0078US0
Discharging Refrigerant
• See page 10-S17.
9Y1210982CAS0079US0
Outer Roof and Stay
1. Remove the outer roof (1).
2. Remove the stay (2).
9Y1210982CAS0080US0
Tightening torque
High pressure hose 1
mounting screw
(condenser side)
4.0 to 6.8 N·m
0.41 to 0.69 kgf·m
3.0 to 5.0 lbf·ft
High pressure hose 2
retaining nut
(receiver side)
4.0 to 6.8 N·m
0.41 to 0.69 kgf·m
3.0 to 5.0 lbf·ft
(1) Receiver
(2) Bolt
(3) High Pressure Hose 1
(4) Bolt
(5) Condenser
(6) Pressure Switch
(7) High Pressure Hose 2
Tightening torque Outer roof mounting bolt
3.5 to 4.0 N·m
0.36 to 0.40 kgf·m
2.6 to 2.9 lbf·ft
(1) Outer Roof (2) Stay
