TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M31

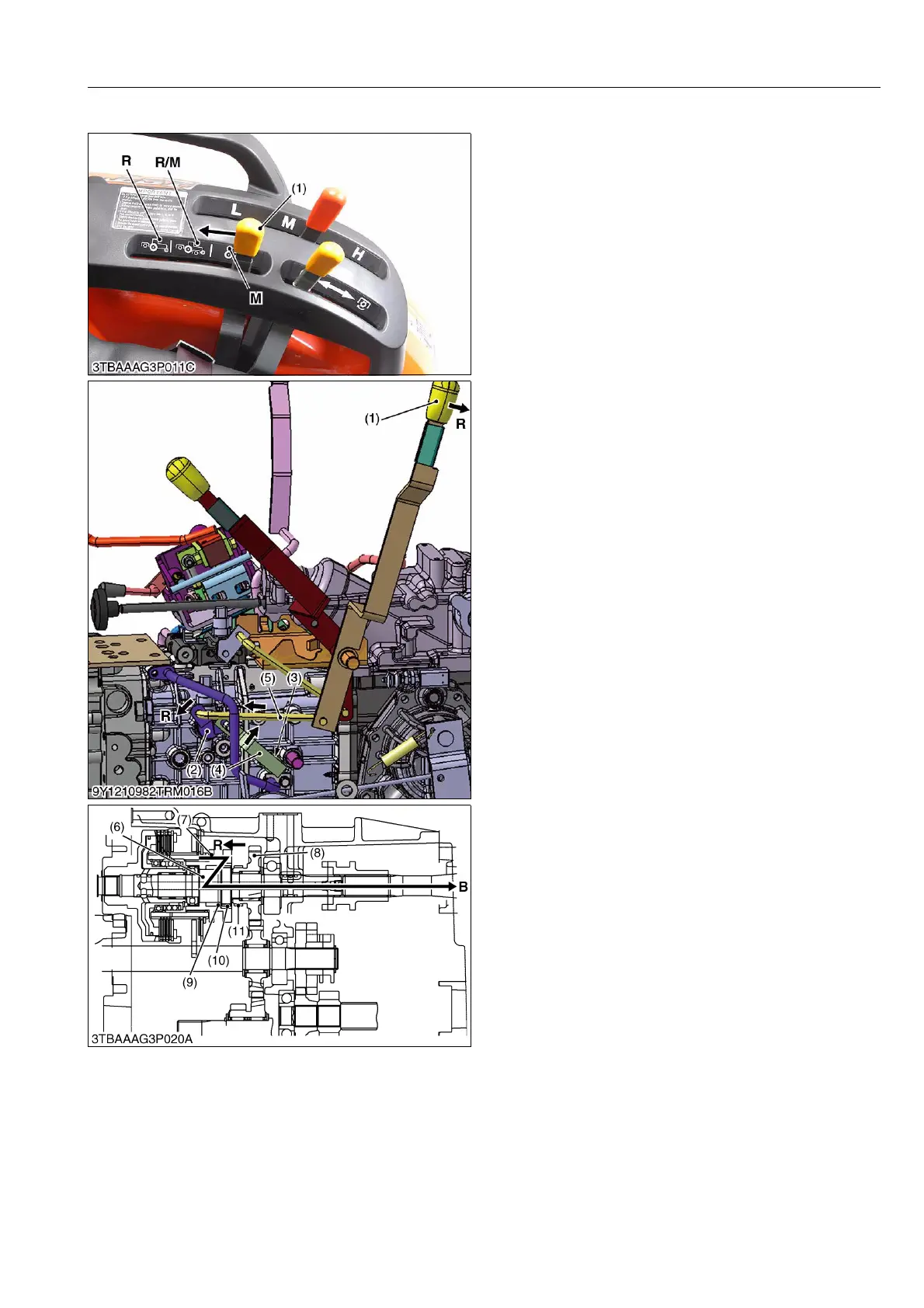

[2] REAR PTO SECTION
When the PTO shift lever (1) is set to "REAR PTO"
(R) position, the PTO shift lever (1) pushes the control
rod (5).
The control rod (5) pushes the PTO shift arm (2).
In this state, the PTO shift arm (2) shifts the PTO
shifter (7) forward. The inner spline (10) of the PTO
shifter (7) meshes the independent PTO shaft spline (9).
Power is transmitted from the independent PTO
clutch to the rear PTO shaft as follows.
Independent PTO clutch  PTO shifter (7) 
Independent PTO shaft (6)  Rear PTO shifter  Rear
PTO shaft.
9Y1210982TRM0031US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Rear PTO Arm
(4) Rear PTO Control Plate
(5) Control Rod
(6) Independent PTO Shaft
(7) PTO Shifter
(8) 26T Mid PTO Gear
(9) Independent PTO Shift
Spline
(10) Inner Spline
(11) 26T Mid Gear Spline
R: REAR PTO Position
R/M: REAR PTO / MID PTO
Position
M: MID PTO Position
B: To Rear PTO Shaft
To Next Page
