BRAKES
B2050, B2350, B2650, B3150, WSM
5-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
Adjusting Brake Pedal Free Travel
• Stop the engine and chock the wheels before checking
brake pedal.
• The difference between the right and left pedal free travel
must be less than 5 mm (0.2 in.)
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut (2) and adjust the brake rod (4) length.
4. Retighten the lock nut (2) securely.
Keep the free travel in the right and left brake pedals equal.
• After checking brake pedal free play, be sure to engage the
parking brake lever fully and check to see that the brake
pedals are securely locked.
9Y1210982BRS0004US0
Brake pedal free travel
Factory
specifica-
tion
ROPS
30 to 40 mm
1.2 to 1.5 in.
on the pedal
CABIN
20 to 30 mm
0.79 to 1.1 in.
on the pedal

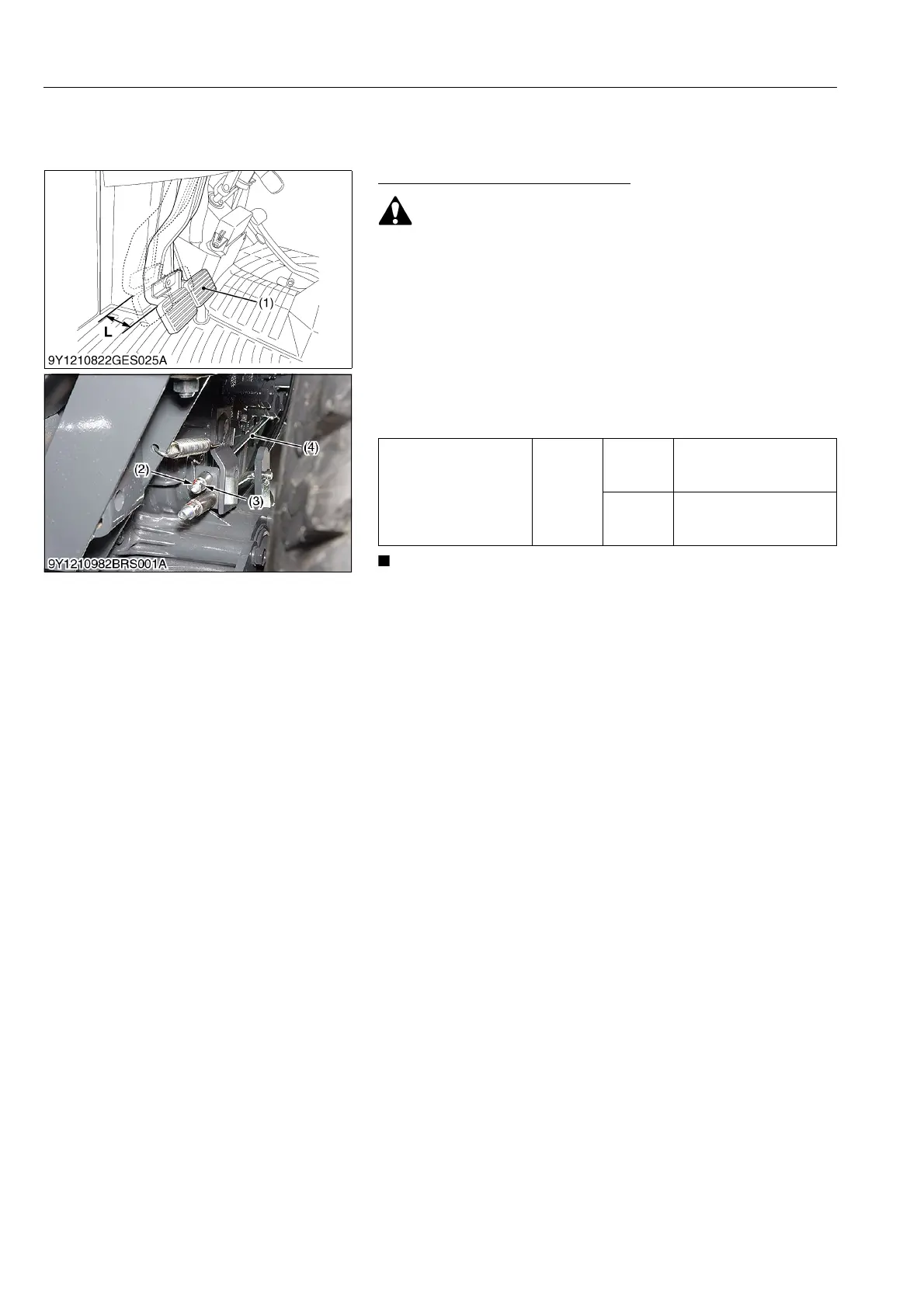

(1) Brake Pedal
(2) Lock Nut
(3) Adjust Nut
(4) Brake Rod
L: Brake Pedal Free Travel
