ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-S13

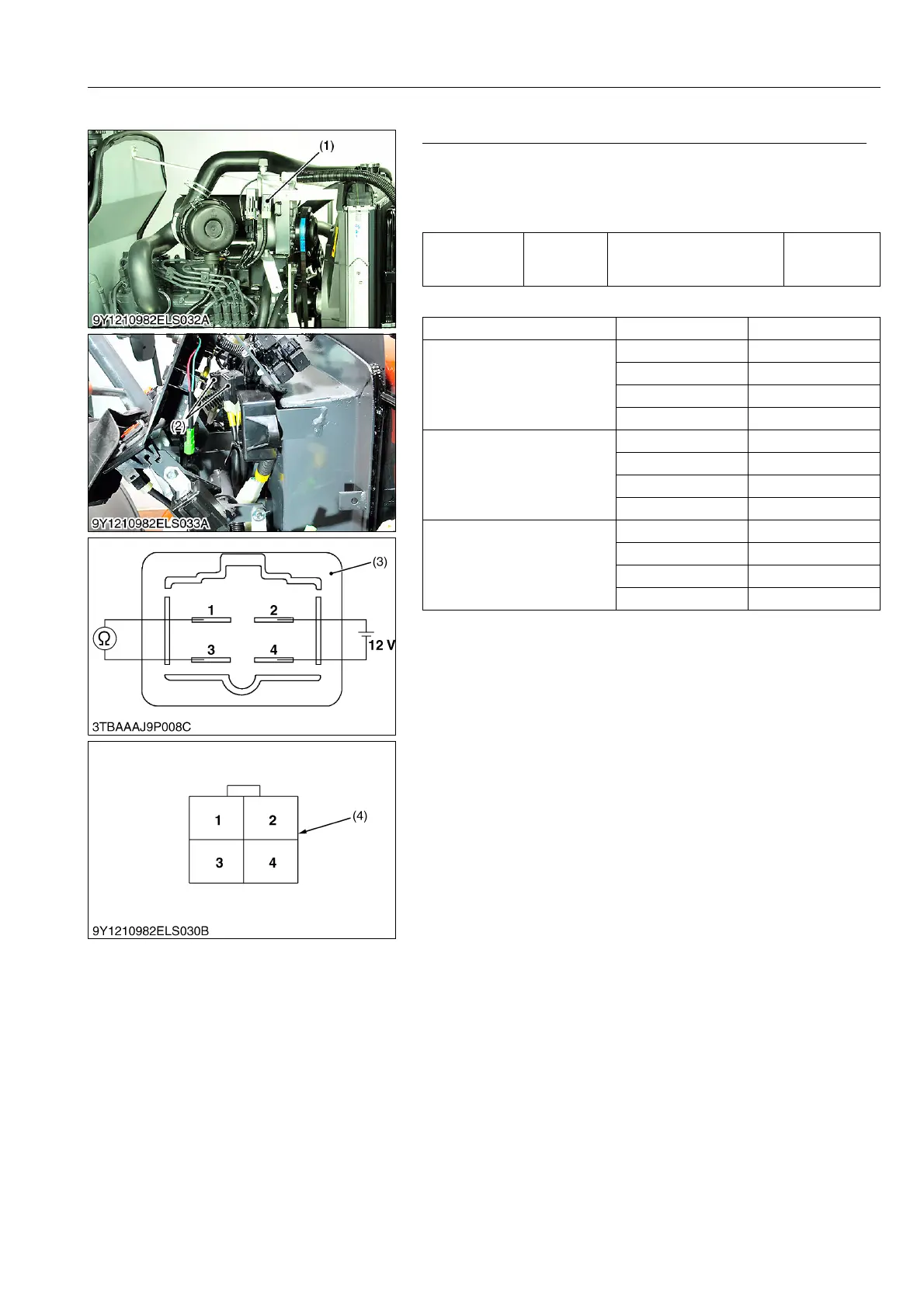

(2) Relays (CABIN Model)
AUX, Head Light 1 and Engine Stop Solenoid (CABIN Model)
1. Remove the relay.
2. Apply battery voltage across 2 terminal and 4 terminal, and
check for continuity across 1 terminal and 3 terminal.
3. If 0 is not indicated, renew the relay.
Color of wiring (To identify the each relay position)
9Y1210982ELS0013US0
Resistance
1 terminal –
3 terminal
Battery voltage is applied
across 2 terminal and 4
terminal
0
Item Terminal No. Color of Wiring
Relay (AUX)
1Y
2R
3B
4W/B
Relay (Head Light 1)
1Y
2R/Y
3B
4W
Relay (Key Stop Solenoid)
1G
2R
3B
4W
(1) Relay (Key Stop Solenoid)
(2) Relay (AUX) and Relay
(Head Light 1)
(3) Connector (Relay)
(4) Connector (Wire Harness)
