ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-S19

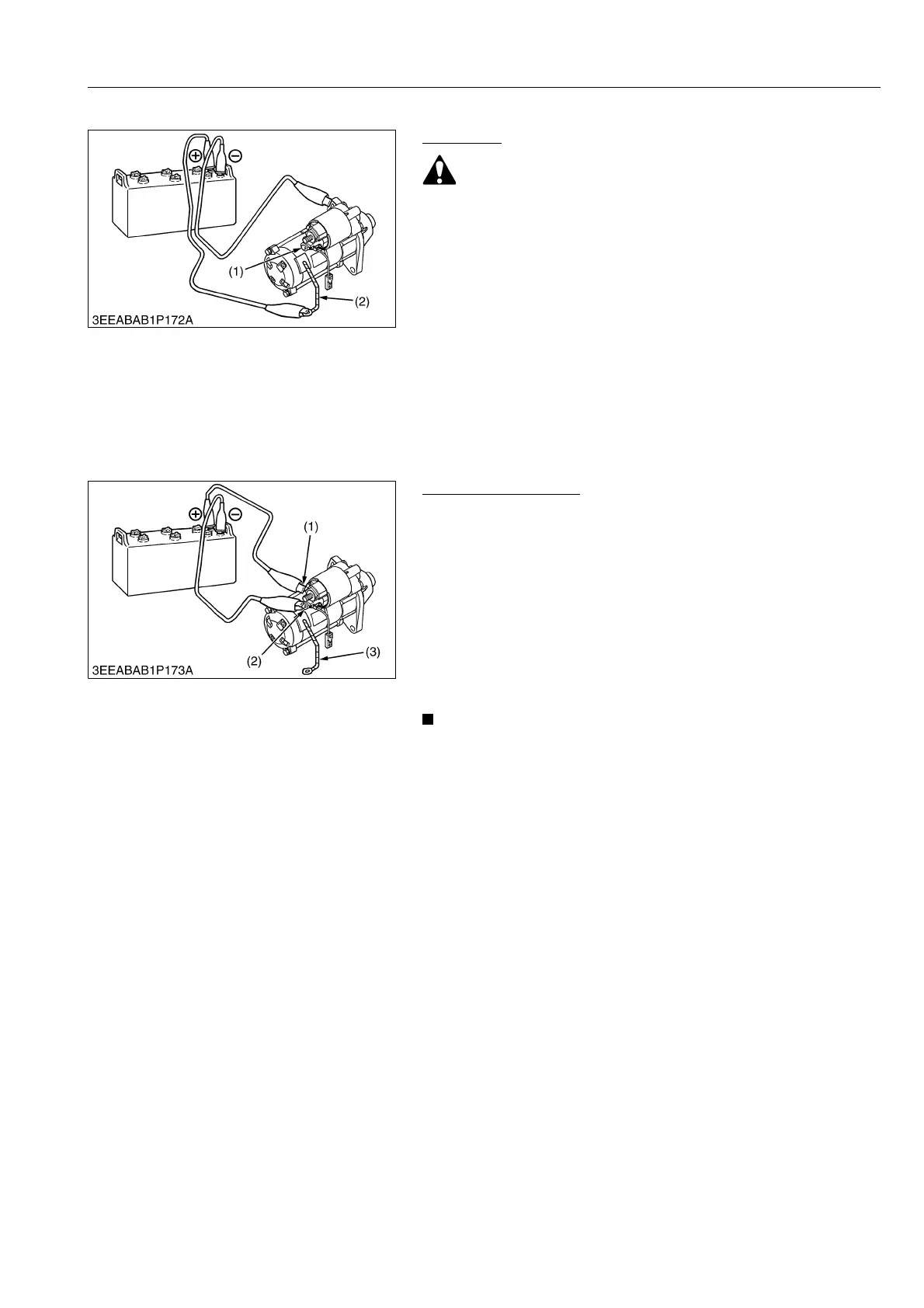

(5) Starter
Motor Test
• Secure the starter to prevent it from jumping up and down
while testing the motor.
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the
starter B terminal.
3. Remove the starter from the engine.
4. Disconnect the connecting lead (2) from the starter C terminal
(1).
5. Connect a jumper lead from the connecting lead (2) to the
battery positive terminal post.
6. Connect a jumper lead momentarily between the starter motor
housing and the battery negative terminal post.
7. If the motor does not operate, check the motor.
9Y1210982ELS0026US0
Magnetic Switch Test
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the
starter B terminal.
3. Remove the starter from the engine.
4. Disconnect the connecting lead (3) from the starter C terminal
(2).
5. Connect a jumper lead from the starter S terminal (2) to the
battery positive terminal post.
6. Connect a jumper lead momentarily between the starter C
terminal (2) and the battery negative terminal post.
7. If the pinion gear does not pop out, check the magnetic switch.
• This test should take no longer than 3 to 5 seconds at a
time.
9Y1210982ELS0027US0
(1) C Terminal (2) Connecting Lead
(1) S Terminal
(2) C Terminal
(3) Connecting Lead
