HYDRAULIC SYSTEM
B2050, B2350, B2650, B3150, WSM
8-S13

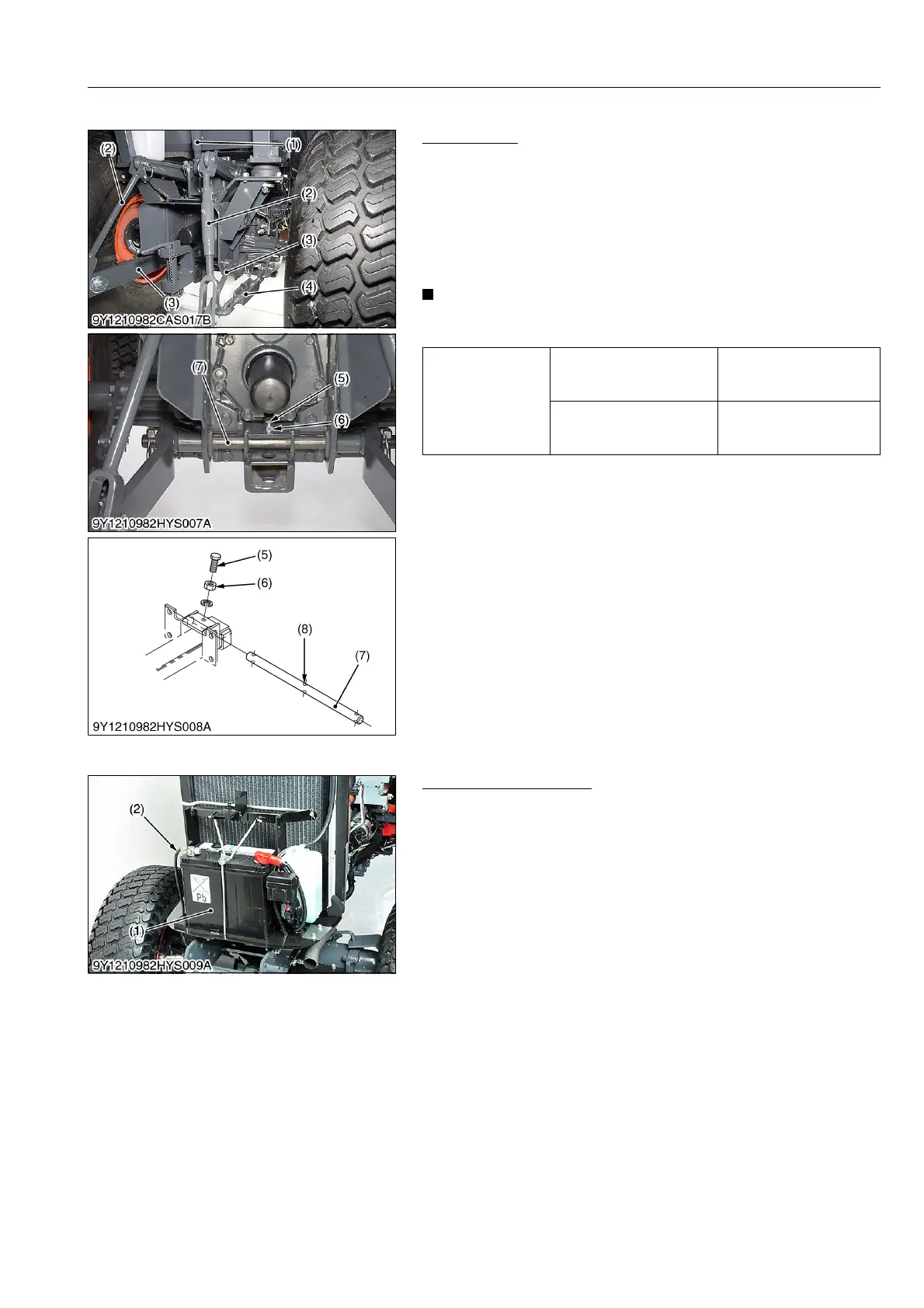

(2) 3-Point Hitch
3-Point Hitch
1. Remove the top link.
2. Remove the lift rods.
3. Remove the check chains.
4. Remove the lower links.
5. Loosen the lock nut (6) and remove the set screw (5).
6. Remove the lower link pin (7).
(When reassembling)
• Be sure to align the set screw (5) and lower link pin hole (8),
when installing the lower link pin (7).
9Y1210982HYS0013US0
(3) Separating Hydraulic Cylinder From Tractor Body (ROPS Model)
Battery Negative Cable
1. Disconnect the battery negative cable (2).
9Y1210982HYS0014US0
Tightening torque
Set bolt of the lower link pin
15 to 20 N·m
1.6 to 2.0 kgf·m
11 to 14 lbf·ft
Lock nut of the lower link
pin
43 to 47 N·m
4.4 to 4.7 kgf·m
32 to 34 lbf·ft
(1) Top Link
(2) Lift Rod
(3) Lower link
(4) Check Chain
(5) Set Screw
(6) Lock Nut
(7) Lower Link Pin
(8) Lower Link Pin Hole
(1) Battery (2) Battery Negative Cable
To Next Page
