ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M28

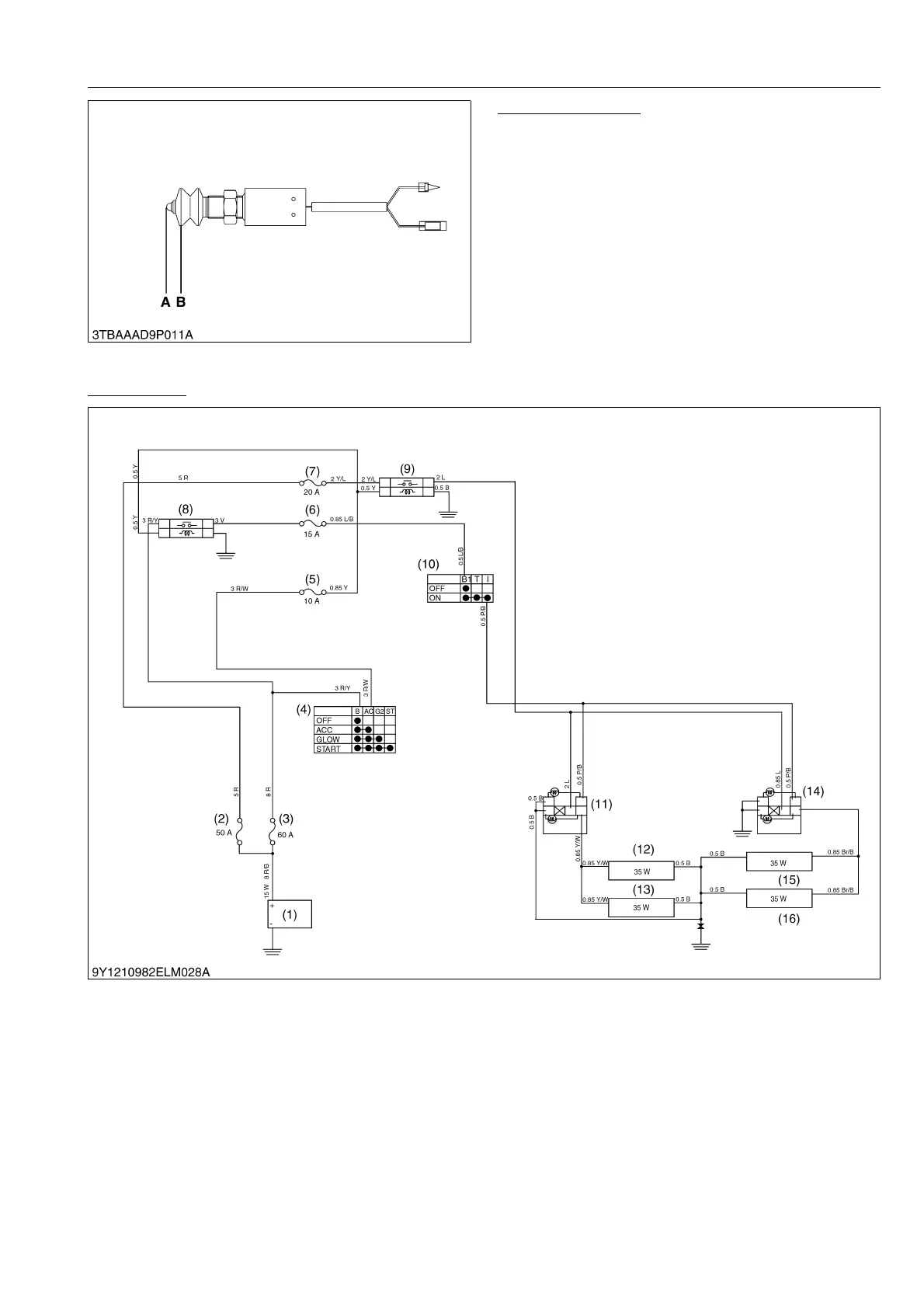

Brake Lamp Switch
Brake lamp switch is turned on by pushing a brake
pedal and turned off by releasing it.
9Y1210982ELM0040US0
[6] WORK LIGHT (CABIN MODEL ONLY)
CABIN Model
9Y1210982ELM0041US0
A: ON B: OFF
(1) Battery
(2) Slow Blow Fuse (CABIN)
(3) Slow Blow Fuse (Main)
(4) Key Switch
(5) Fuse (Alternator / ACC Relay)
(6) Fuse (Head Light / Position
Lamp / Horn)
(7) Relay (Work Light)
(8) Relay (Head Light 1)
(9) Relay (Work Light)
(10) Combination Switch (Head
Light)
(11) Front Work Light Switch
(12) Front Work Light (L)
(13) Front Work Light (R)
(14) Rear Work Light Switch
(15) Rear Work Light (L) (Option)
(16) Rear Work Light (R) (Option)
To Next Page
