TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S47
(8) Front Wheel Drive Shaft
4WD Shaft

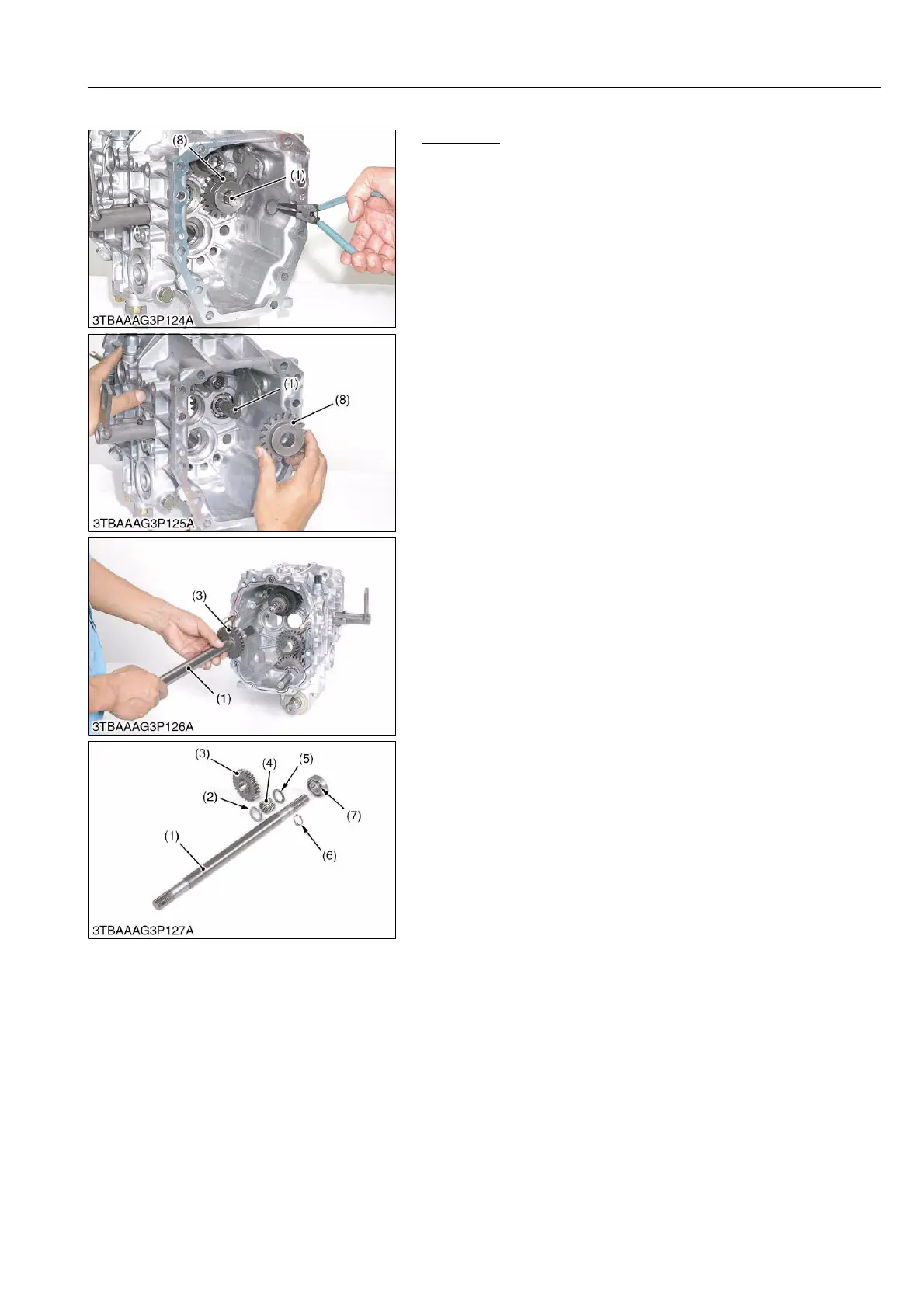

1. Remove the cir-clip from the 4WD shaft (1).
2. Remove the 4WD gear (8) from the 4WD shaft (1).
3. Remove the 4WD shaft (1) with the 25T gear (3).
4. Remove the 25T gear (3) and the ball bearing (7).
9Y1210982TRS0076US0
(1) 4WD Shaft
(2) Collar
(3) 25T Gear
(4) Needle Bearing
(5) Collar
(6) Cir-clip
(7) Ball Bearing
(8) 4WD Gear
B2050, B2350, B2650: 20T
B3150: 19T
To Next Page
