(2) Cylinder Head and Valve and Oil Pan

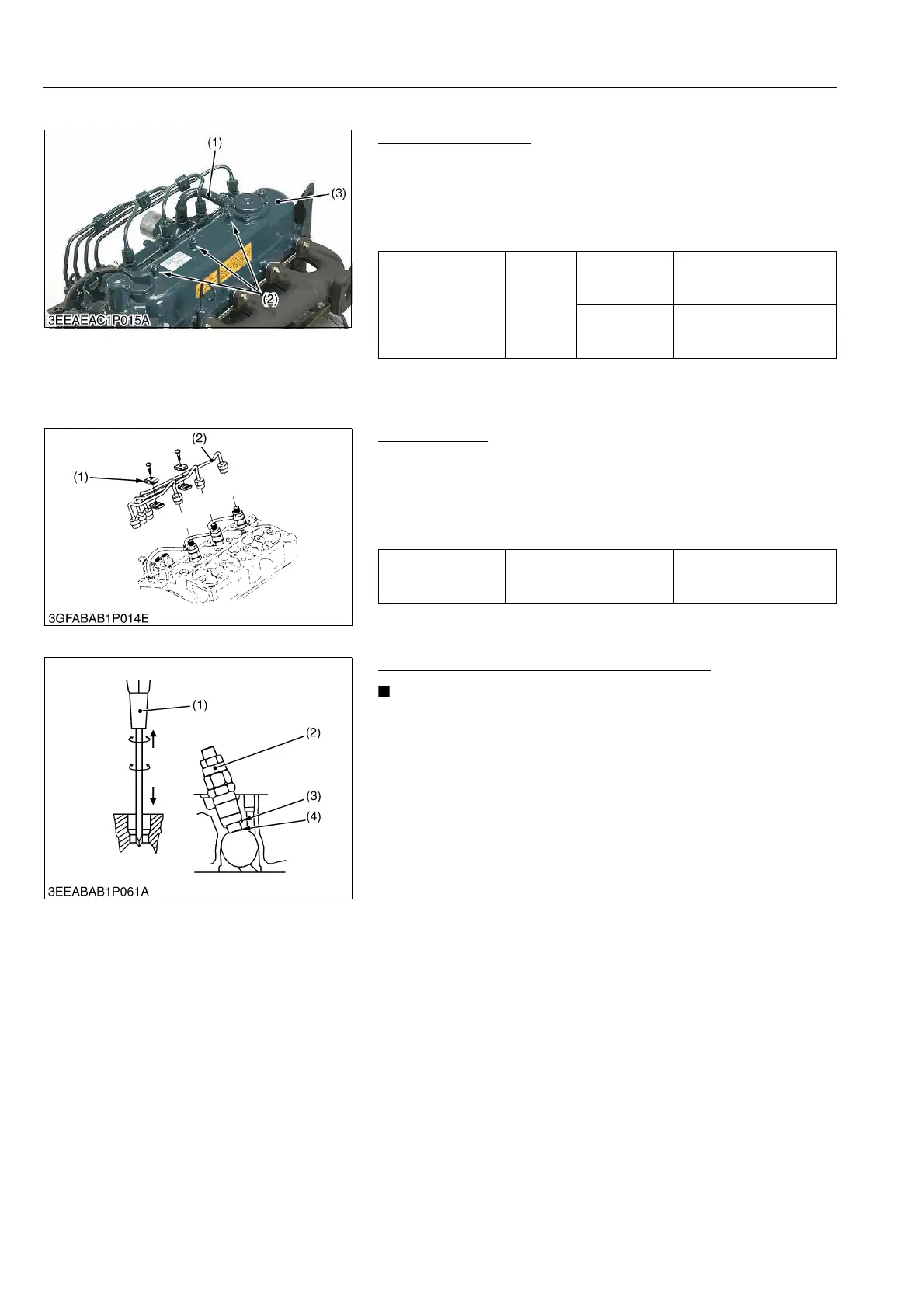

Cylinder Head Cover
1. Disconnect the breather hose (1).
2. Remove the head cover nut (2).
3. Remove the cylinder head cover (3).
(When reassembling)
• Check to see if the cylinder head cover gasket is not damaged.
9Y1210982ENS0053US0
Injection Pipes
1. Loosen the screws on the pipe clamp (1).
2. Remove the injection pipes (2).
(When reassembling)
• Sent compressed air into the pipes to blow out dust. Then,
reassemble the pipes in the reverse order.
9Y1210982ENS0054US0
Nozzle Heat Seal Service Removal Procedure
• Use a plus (phillips head) screw driver that has a Dia. which
is bigger than the heat seal hole (Approx. 6 mm (1/4 in.)).
1. Drive screw driver lightly into the heat seal hole.
2. Turn screw driver three or four times each way.
3. While turning the screw driver, slowly pull the heat seal out
together with the injection nozzle gasket.
If the heat seal drops, repeat the above procedure. Heat seal
and injection nozzle gasket must be changed when the injection
nozzle is removed for cleaning or for service.
9Y1210982ENS0055US0
Tightening torque
Cylinder
head
cover nut
D1105, V1505
7 to 8 N·m
0.7 to 0.9 kgf·m
5 to 6 lbf·ft
D1305
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft
(1) Breather Hose
(2) Head Cover Screws
(3) Cylinder Head Cover
Tightening torque Injection pipe retaining nut
25 to 34 N·m
2.5 to 3.5 kgf·m
18 to 25 lbf·ft
(1) Pipe Clamp (2) Injection Pipe
(1) Plus Screw Driver
(2) Injection Nozzle
(3) Injection Nozzle Packin
(4) Heat Seal
