ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M30
5. INSTRUMENT PANEL
[1] EASY CHECKER™
ROPS Model
If the warning lamps of the Easy Checker™ come on
during operation, immediately stop the engine, and find
the cause as shown below.
Never operate the machine while Easy Checker™
lamp is on.
Electrical Charge Warning Indicator
If the alternator is not charging the battery, the
warning lamp in the Easy Checker™ will come on.
If this should happen during operation, check the
electrical charging system.
Glow Plug Indicator
When the key switch is in the "PREHEAT" position,
the glow plug indicator illuminates.
Engine Oil Pressure Warning Indicator
If the oil pressure in the engine goes below 49 kPa
(0.5 kgf/cm
2
, 7 psi), the warning lamp in the Easy
Checker™ will come on.
9Y1210982ELM0043US0
CABIN Model
If the warning lamps of the Easy Checker™ come on
during operation, immediately stop the engine, and find
the cause as shown below.
Never operate the machine while Easy Checker™
lamp is on.
Electrical Charge Warning Indicator
If the alternator is not charging the battery, the
warning lamp in the Easy Checker™ will come on.
If this should happen during operation, check the
electrical charging system.
Glow Plug Indicator
When the key switch is in the "PREHEAT" position,
the glow plug indicator illuminates.
Engine Oil Pressure Warning Indicator
If the oil pressure in the engine goes below 49 kPa
(0.5 kgf/cm
2
, 7 psi), the warning lamp in the Easy
Checker™ will come on.
Engine Overheat Warning Indicator
If the coolant temperature goes up above 125 °C
(257 °F), the warning lamp in the Easy Checker™ will
come on.
9Y1210982ELM0044US0

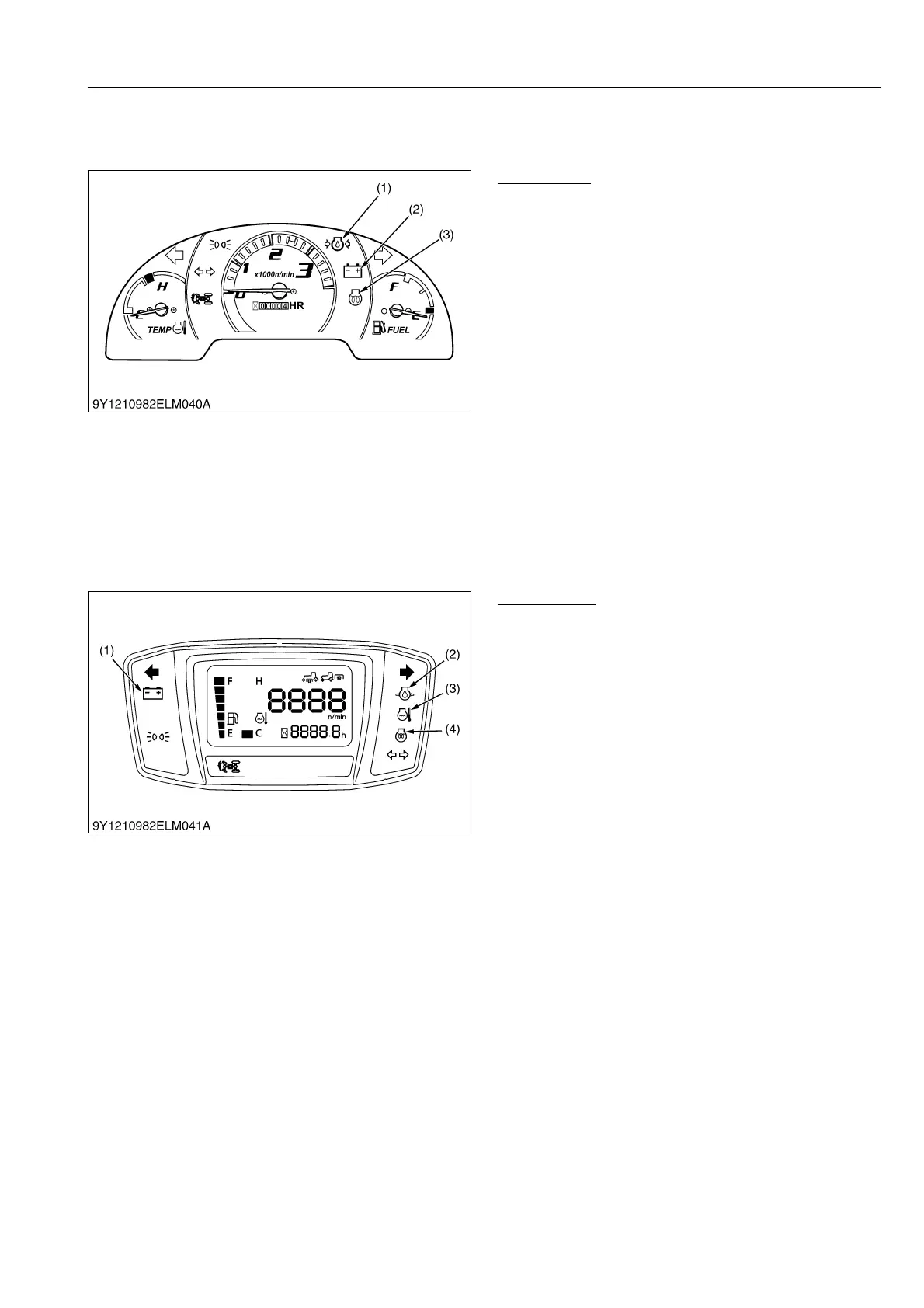

(1) Engine Oil Pressure Warning
Indicator
(2) Electrical Charge Warning
Indicator
(3) Glow Plug Indicator
(1) Electrical Charge Warning
Indicator
(2) Engine Oil Pressure Warning
Indicator
(3) Engine Overheat Warning
Indicator
(4) Glow Plug Indicator
To Next Page
