ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M25
Hazard Switch (CABIN Model)
• Refer to the page 9-S26 for the hazard switch
(CABIN Model)

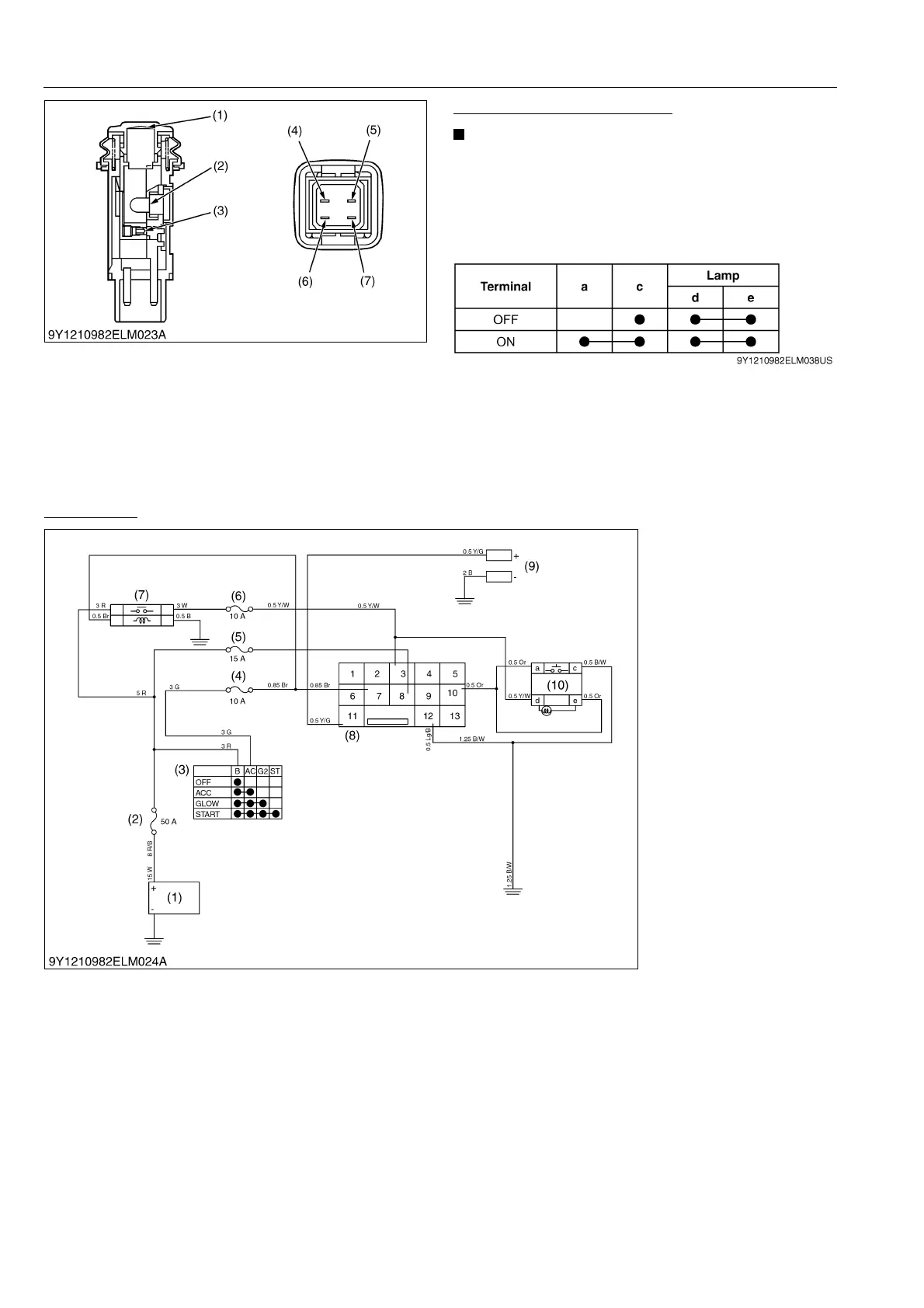

This is a pushing type switch to turn on the hazard
lights. The lamp (2) in the switch is lighted up by the
current from outside of the switch. The circuit in the
switch is shown below.
9Y1210982ELM0034US0
[4] BEACON
ROPS Model
9Y1210982ELM0035US0
(1) Lens
(2) Lamp
(3) Contact Portion
(4) Terminal a
(5) Terminal d
(6) Terminal c
(7) Terminal e
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC
Relay)
(5) Fuse (Flasher / Hazard)
(6) Fuse (Beacon)
(7) Relay (AUX)
(8) Flasher Unit
(9) Beacon
(10) Beacon Switch
