ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-S39

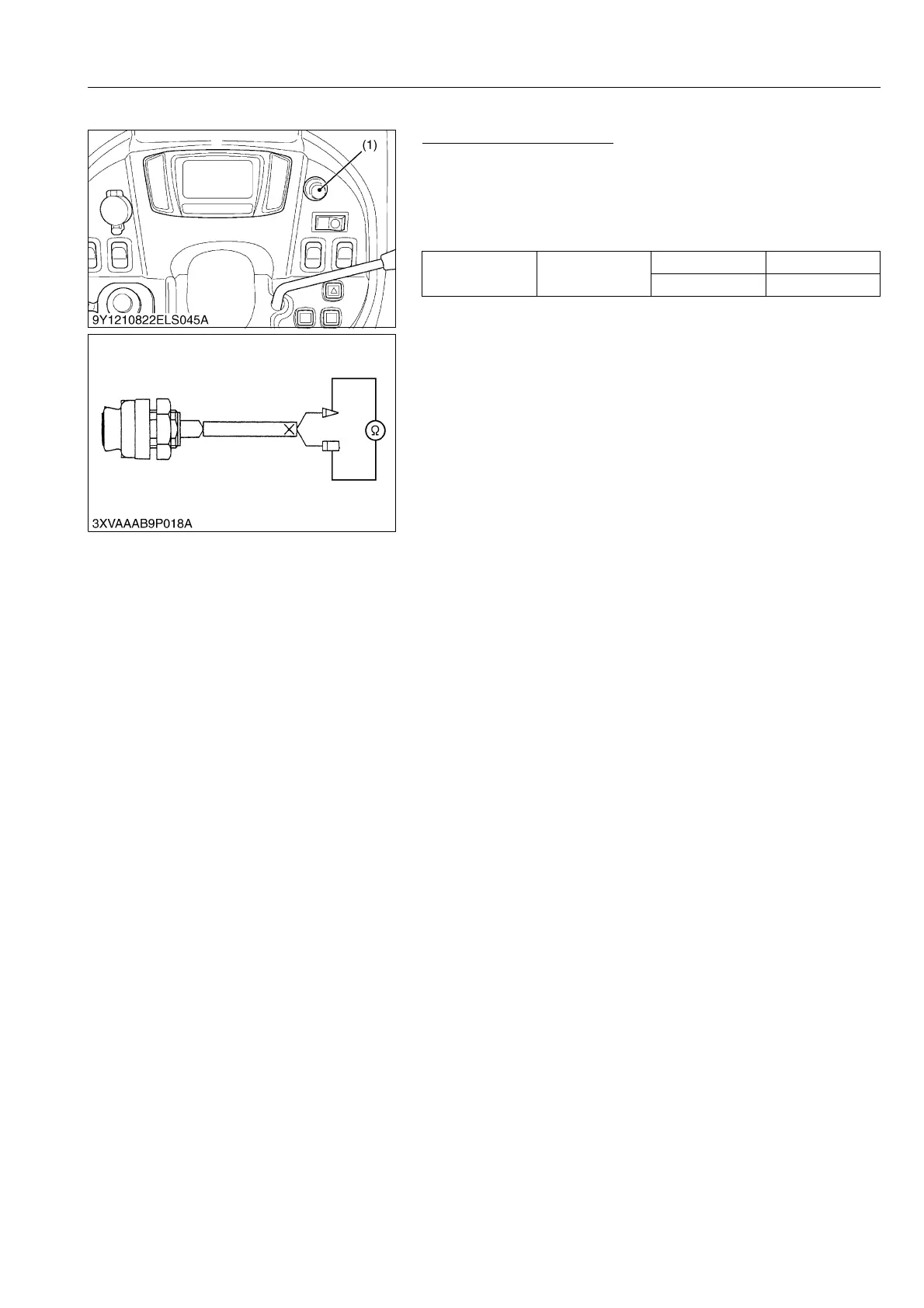

(9) Display Switch
Display Switch Continuity
1. Disconnect the wiring leads from display switch and remove it.
2. Measure the resistance with an ohmmeter across the display
switch terminals in each position.
3. If the resistance differs from the factory specifications, the
display switch is damaged.
9Y1210982ELS0074US0
Resistance
Factory specifica-
tion
OFF Infinity
ON 0 
(1) Display Switch
To Next Page
