TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S21

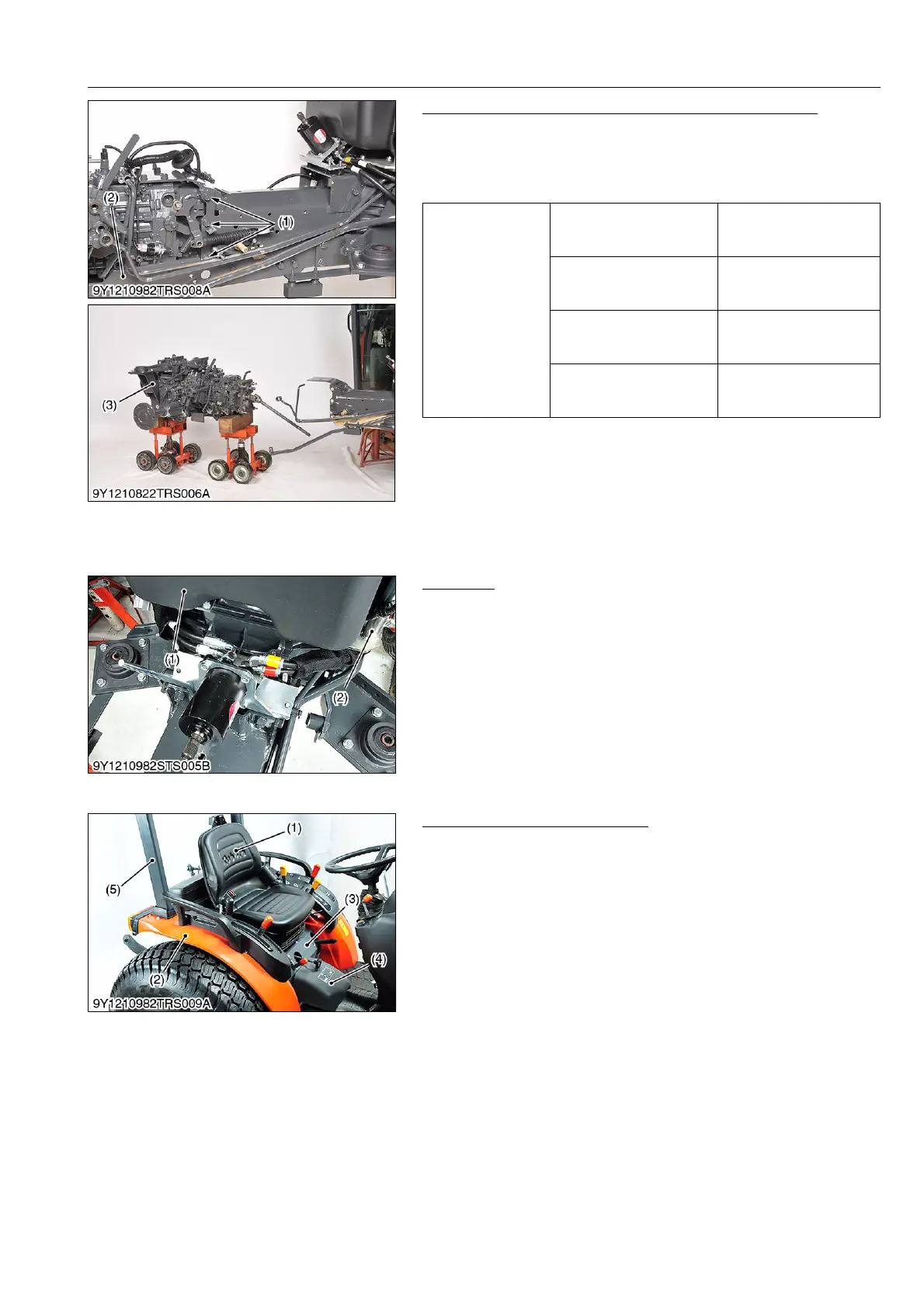

Main Frame, Sub Frame and Cabin Mount Rear Frame
1. Remove the main frame bolts (1).
2. Remove the both side sub frames (2).
3. Remove the Cabin mount rear frame (3).
(When reassembling)
9Y1210982TRS0025US0
(3) Separating Engine and Clutch Housing (CABIN)
• See page 1-S24.
9Y1210982TRS0026US0
Fuel Tank
1. Remove the fuel tank (1) with pillar (2).
9Y1210982TRS0116US0
(4) Separating Transmission from Tractor Body (ROPS)
ROPS, Seat, Fender and Cover
1. Disconnect the tail lamp connectors, hazard lamp connectors
and trailer socket connectors.
2. Remove the seat (1).
3. Remove the grips.
4. Remove the fenders (2).
5. Remove the seat under cover (3) and cover (4).
6. Remove the ROPS (5).
9Y1210982TRS0027US0
Tightening torque
Sub frame mounting bolt
(M12)
80 to 90 N·m
8.2 to 9.1 kgf·m
59 to 66 lbf·ft
Sub frame mounting bolt
(M14)
126 to 150 N·m
12.9 to 15.2 kgf·m
93.0 to 110 lbf·ft
Sub frame mounting bolt
(M10)
40 to 45 N·m
4.1 to 4.6 kgf·m
30 to 33 lbf·ft
Cabin mount rear frame
bolt
90 to 95 N·m
9.2 to 9.6 kgf·m
67 to 70 lbf·ft
(1) Bolt
(2) Sub Frame
(3) Cabin Mounting Rear Frame
(1) Fuel Tank (2) Pillar
(1) Seat
(2) Fender
(3) Seat Under Cover
(4) Cover
(5) ROPS
KiSC issued 03, 2014 A
