ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M21

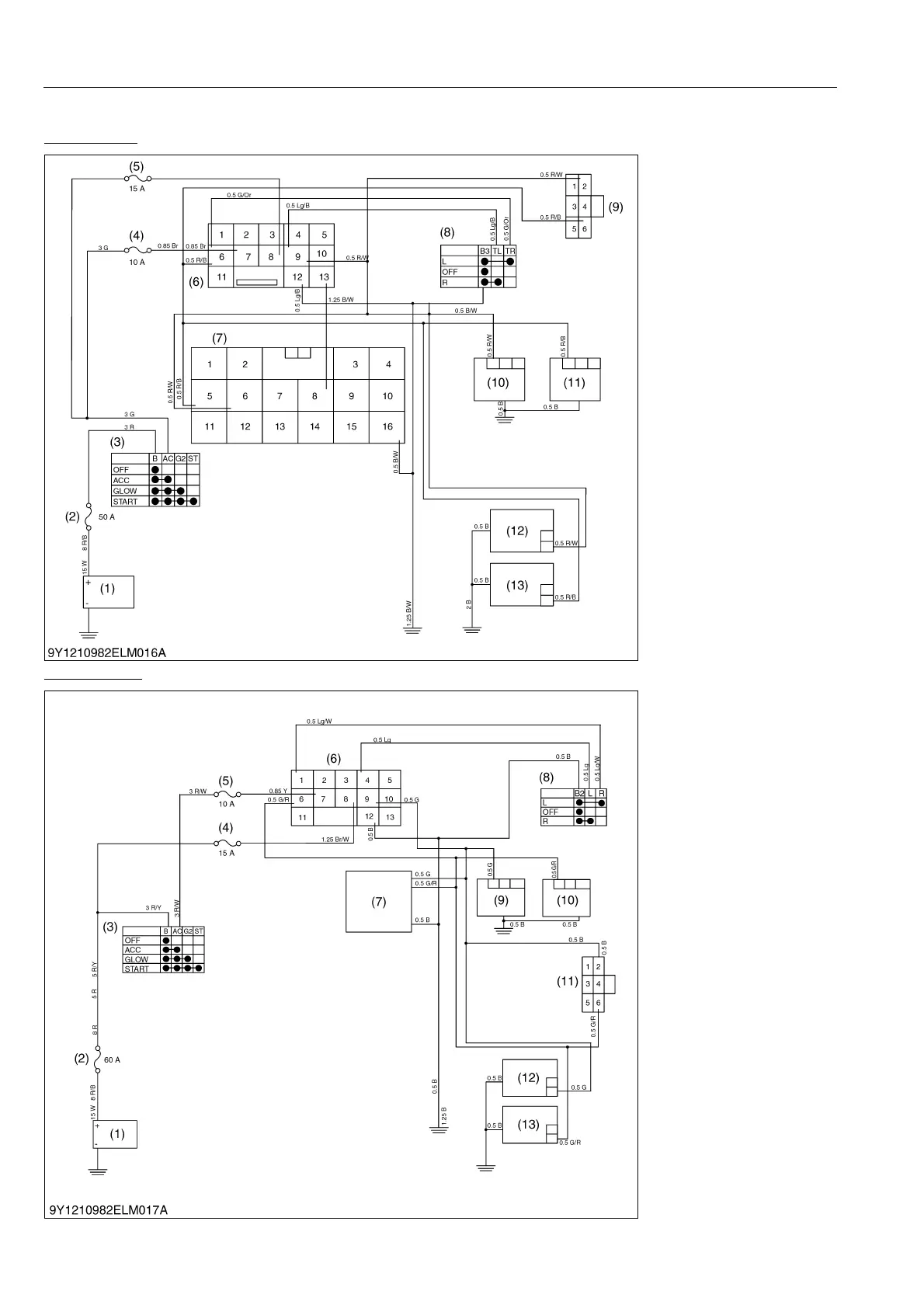

[2] TURN SIGNAL LIGHT
ROPS Model
9Y1210982ELM0028US0
CABIN Model
9Y1210982ELM0029US0
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC
Relay)
(5) Fuse (Flasher / Hazard)
(6) Flasher Unit
(7) Instrument Panel
(8) Combination Switch (Turn
Signal)
(9) Trailer Socket
(10) Rear Combination Lamp (L)
(Turn)
(11) Rear Combination Lamp (R)
(Turn)
(12) Front Combination Lamp (L)
(Turn)
(13) Front Combination Lamp (R)
(Turn)
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC
Relay)
(5) Fuse (Flasher / Hazard)
(6) Flasher Unit
(7) Instrument Panel
(8) Combination Switch (Turn
Signal)
(9) Rear Combination Lamp (L)
(Turn)
(10) Rear Combination Lamp (R)
(Turn)
(11) Trailer Socket
(12) Front Combination Lamp (L)
(Turn)
(13) Front Combination Lamp (R)
(Turn)
