10. IMPLEMENT LIMITATIONS
The KUBOTA Tractor has been thoroughly tested for proper performance with implements sold or approved by
KUBOTA. Use with implements which are not sold or approved by KUBOTA and which exceed the maximum
specifications listed below, or which are otherwise unfit for use with the KUBOTA Tractor may result in malfunctions
or failures of the tractor, damage to other property and injury to the operator or others. [Any malfunctions or failures
of the tractor resulting from use with improper implements are not covered by the warranty.]
9Y1210982GEG0093US0
LA424 for B2050, B2350, B2650 [Attach the Main Frame: ROPS
/ CAB Type]
9Y1210982GEG0094US0
Parts name Tightening torque
(1) Main frame –
(2) Spacer plate –
(3)
2-M14 x 40 bolt with spring washer assembly
2-M14 plain washers
130 N·m
13.3 kgf·m
95.9 lbf·ft
(4)
1-M12 x 35 bolt with spring washer assembly
1-M12 plain washer
80 N·m
8.2 kgf·m
59 lbf·ft
(5)
1-M12 x 45 bolt with spring washer assembly
1-M12 plain washer
80 N·m
8.2 kgf·m
59 lbf·ft
(6)
2-M12 x 35 bolt with spring washer assembly
2-M12 plain washer
80 N·m
8.2 kgf·m
59 lbf·ft
(7)
5-M12 x 40 bolt with spring washer assembly
5-M12 plain washer
5-M12 nut
80 N·m
8.2 kgf·m
59 lbf·ft
(8)
1-M14 x 60 bolt
1-M14 plain washer
1-M14 spring lock washer
1-M14 nut
130 N·m
13.3 kgf·m
95.9 lbf·ft
(9)
1-M14 x 60 bolt
1-M14 plain washer
1-M14 spring lock washer
130 N·m
13.3 kgf·m
95.9 lbf·ft
(10)
2-M12 x 40 bolt with spring washer assembly
2-M12 plain washer
2-M12 nut
80 N·m
8.2 kgf·m
59 lbf·ft
(11)
1-M14 plain washer
1-M14 spring lock washer
1-M14 nut
128 N·m
13.1 kgf·m
94.4 lbf·ft

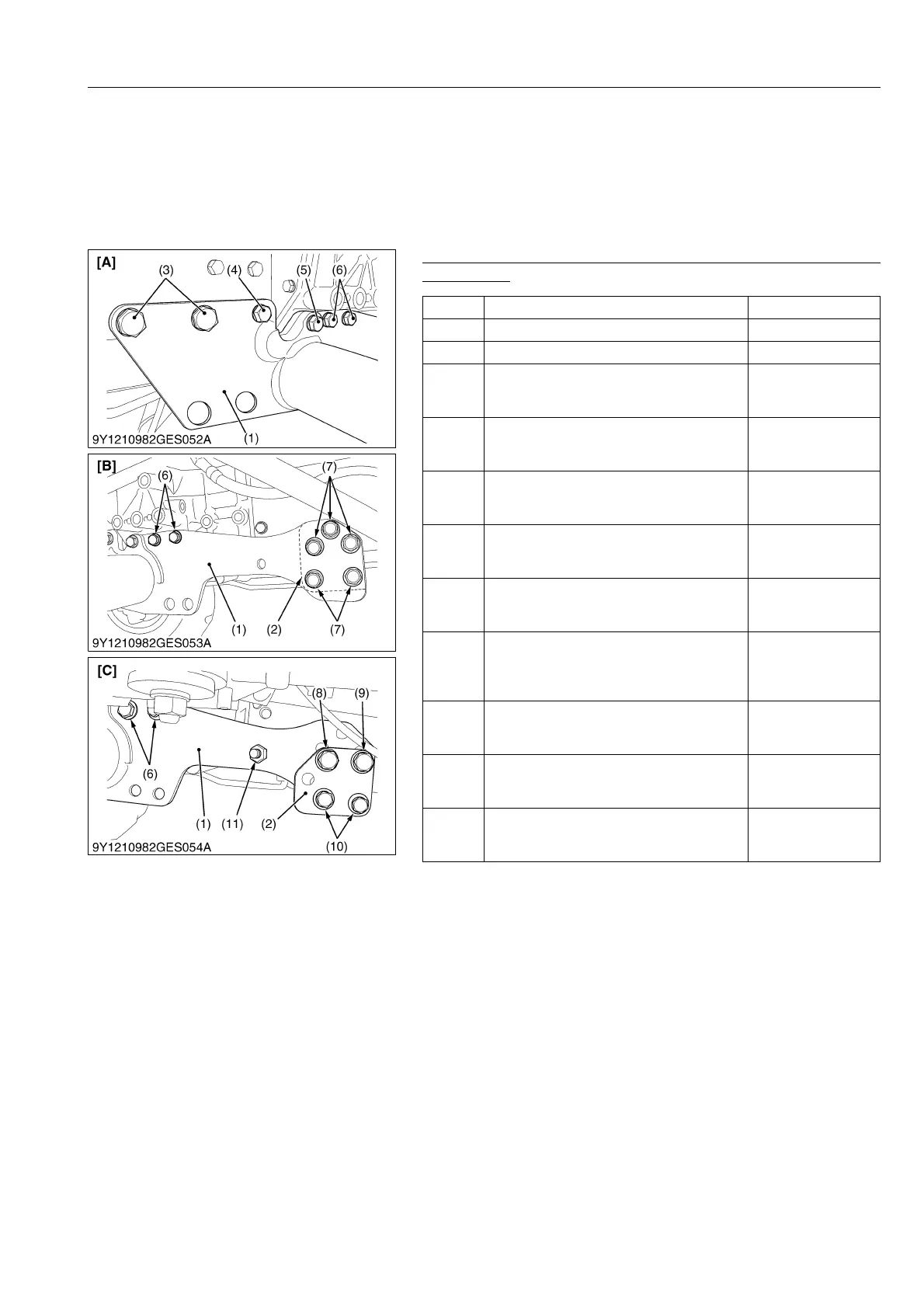

[A] ROPS and CAB Type (Front Side)
[B] ROPS Type (Back Side)
[C] CAB Type (Back Side)
