TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M7

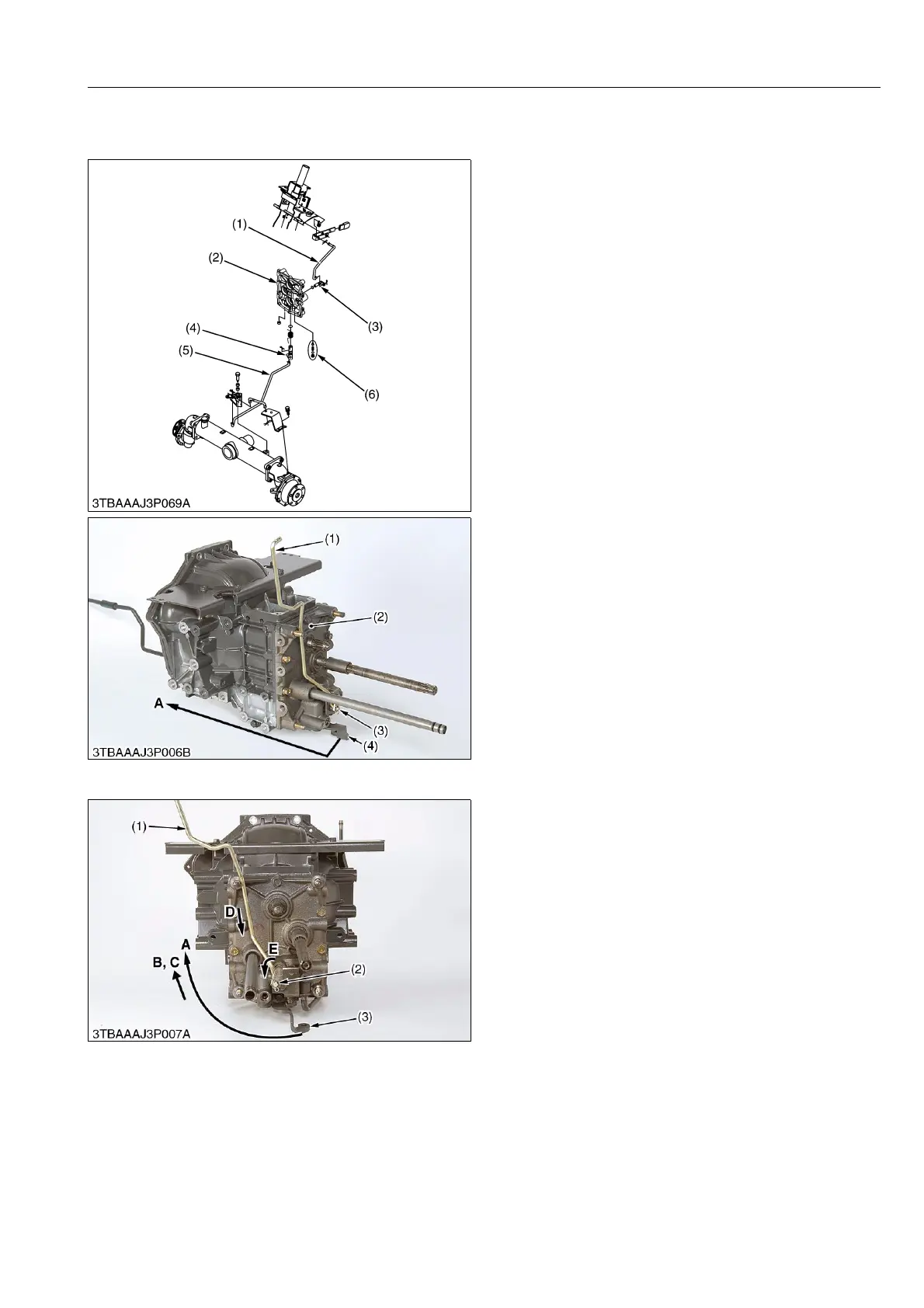

[2] BI-SPEED TURN LINKAGE
(1) Linkage
Bi-Speed Turn lever is connected to the Bi-Speed
rod (1) and the Bi-Speed Turn ON/OFF shift shaft (3).
The left bevel gear case of the front axle is
connected to the front Bi-Speed Turn shift shaft (4) with
a Bi-Speed rod 2 (5).
9Y1210982TRM0007US0
(2) Linkage: Bi-Speed Turn "Engaged"
When the Bi-Speed Turn lever is shifted to "ON"
position, the Bi-Speed rod 1 (1) is pushed down and the
Bi-Speed Turn ON/OFF shift shaft (2) is rotated
counterclockwise. It is kept "ON".
When steering the steering wheel to "Left" or
"Right", the Bi-Speed rod 2 connected to the left bevel
gear case is pulled. The Bi-Speed Turn shift shaft (3) is
rotated.
At this time, hydraulic oil from the pump port enter to
the Bi-Speed clutch shaft through both the Bi-Speed
Turn shift shaft (3) and the Bi-Speed ON/OFF shift shaft
(2).
The Bi-Speed Turn is engaged.
9Y1210982TRM0008US0
(1) Bi-Speed Rod 1
(2) Front Mission Cover
(3) Bi-Speed Turn ON/OFF Shift
Shaft
(4) Bi-Speed Turn Shift Shaft
(5) Bi-Speed Rod 2
(6) Regulating Valve (Only
Manual Transmission Model)
A: Connected to the Left
Bevel Gear Case
(1) Bi-Speed Rod 1
(2) Bi-Speed Turn ON/OFF Shift
Shaft
(3) Bi-Speed Turn Shift Shaft
A: Connected to the Left
Bevel Gear Case
B: Left Turning
C: Right Turning
D: Bi-Speed Rod 1 "Engaged"
Position
E: Bi-Speed Turn ON/OFF
Shift Shaft "Engaged"
Position
KiSC issued 03, 2014 A
