TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M8
(3) Linkage: Bi-Speed Turn "Disengaged"
When the Bi-Speed Turn lever is shifted to "OFF"
position, the Bi-Speed rod 1 (1) is pushed up and the
Bi-Speed Turn ON/OFF shift shaft (2) is rotated
clockwise. It is kept "OFF".
When steering the steering wheel to "Straight", the
Bi-Speed rod 2 connected to the left bevel gear case is
not pulled. The Bi-Speed Turn shift shaft (3) is kept to
"OFF" position.
At this time, hydraulic oil from the pump port does not
enter to the Bi-Speed Turn ON/OFF shift shaft.
The Bi-Speed Turn is disengaged.
9Y1210982TRM0009US0

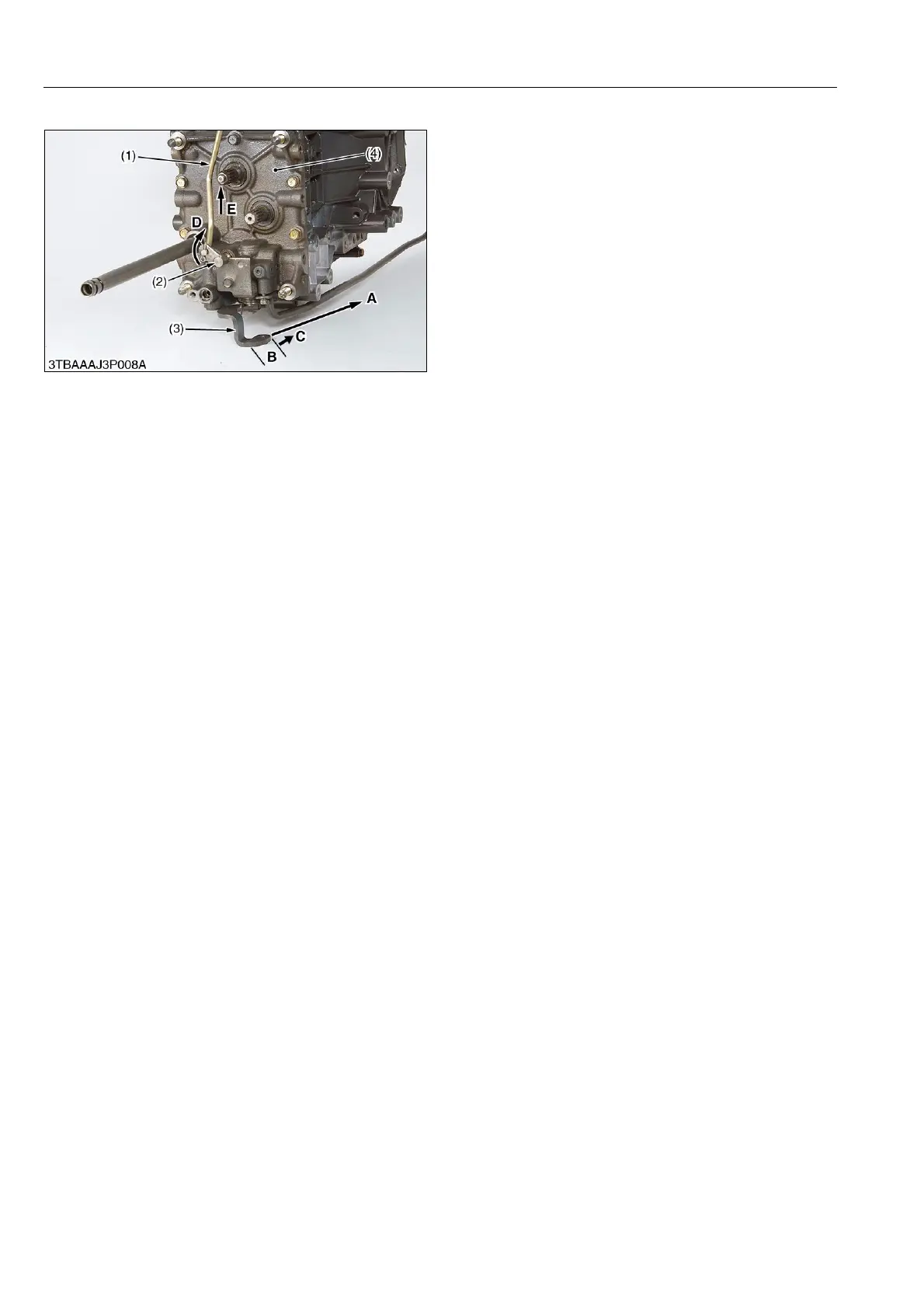

(1) Bi-Speed Rod 1
(2) Bi-Speed Turn ON/OFF Shift
Shaft
(3) Bi-Speed Turn Shift Shaft
A: Connected to the Left
Bevel Gear Case
B: "OFF" Position
C: "Engaged" Position
D: Bi-Speed Turn ON/OFF
Shift Shaft "Disengaged"
Position
E: Bi-Speed Rod 1
"Disengaged" Position
To Next Page
