ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M23

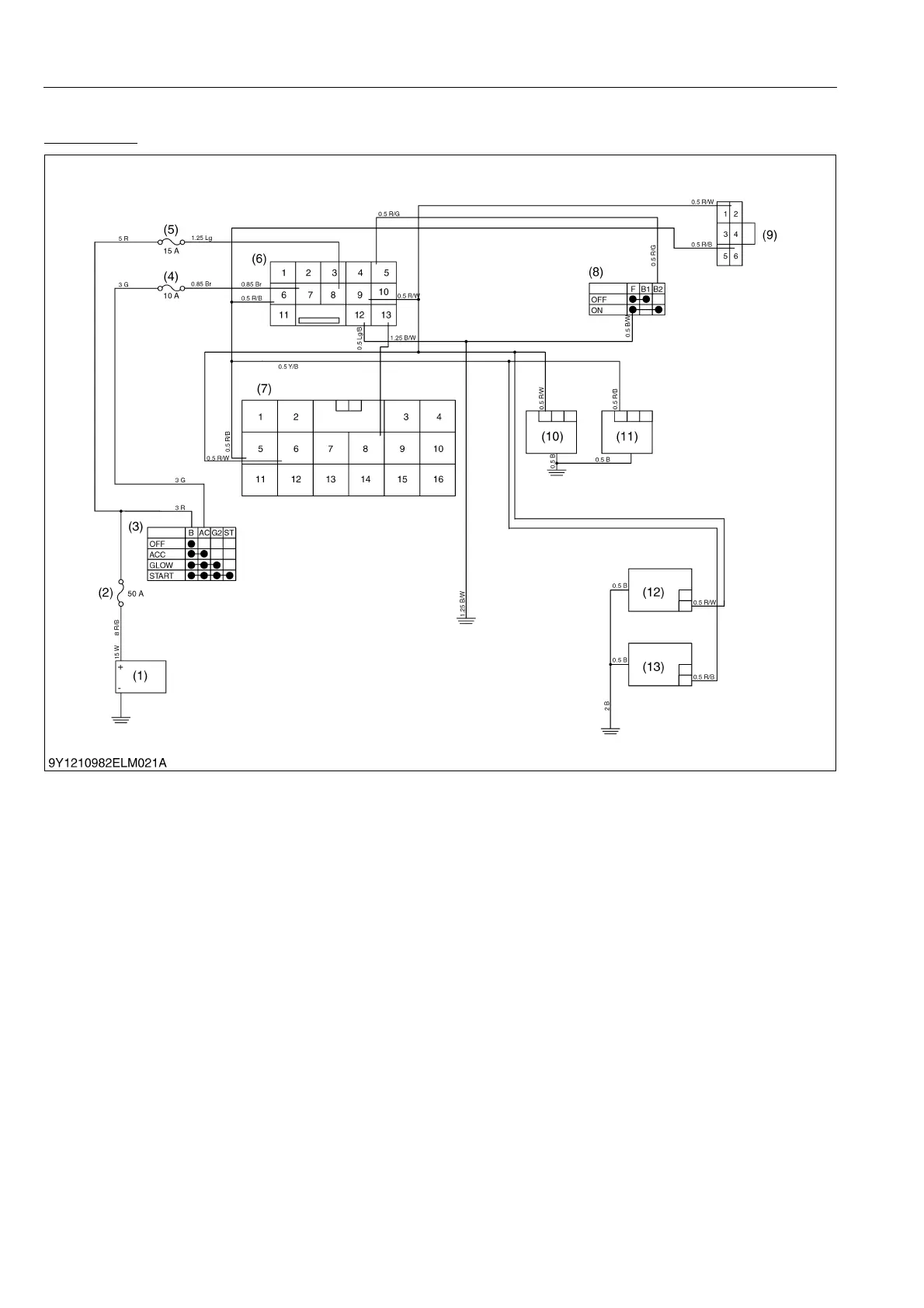

[3] HAZARD LIGHT
ROPS Model
9Y1210982ELM0032US0
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC Relay)
(5) Fuse (Flasher / Hazard)
(6) Flasher Unit
(7) Instrument Panel
(8) Hazard Switch
(9) Trailer Socket
(10) Rear Combination Lamp (L)
(Turn)
(11) Rear Combination Lamp (R)
(Turn)
(12) Front Combination Lamp (L)
(Turn)
(13) Front Combination Lamp (R)
(Turn)
To Next Page
